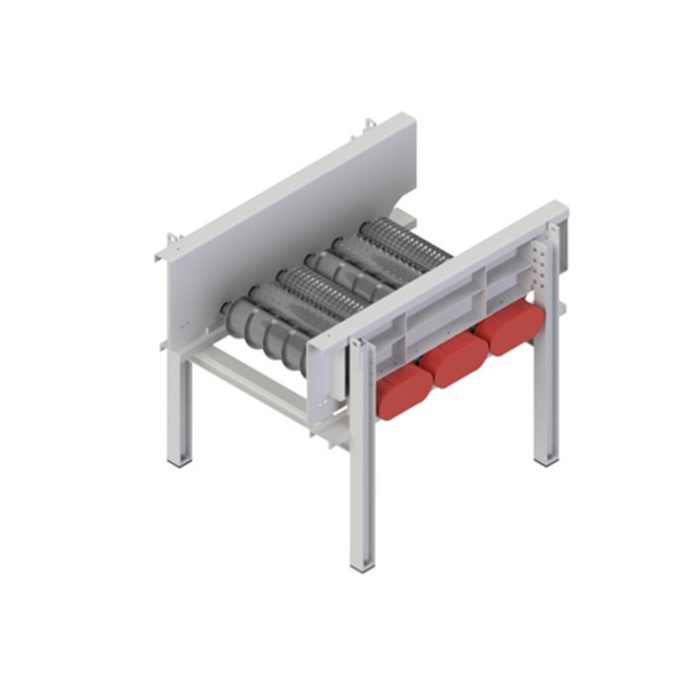

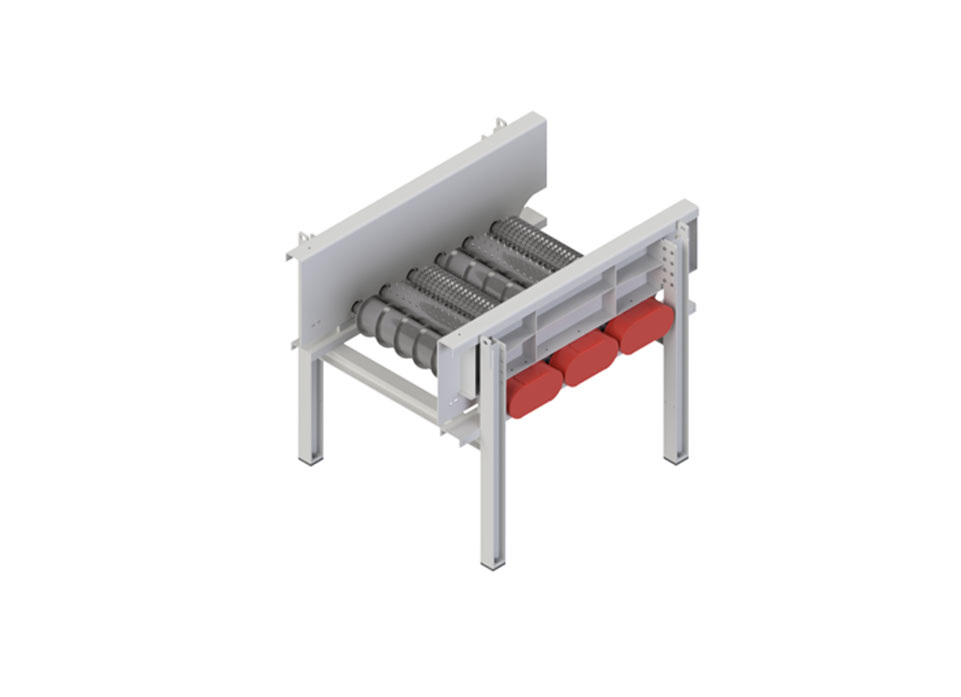

ROLLER DISCHARGE – RDG

Roller discharge – rdg is designed for log cleaning and pre-processing, ensuring a steady and continuous material flow to the next processing stages.
Proudly made by

Best in class for

WOOD BASED PANELS
PB/SPB, MDF/HDF, OSB/LSB/FOSB

Characteristics

RDG – Roller Discharge is a fully customizable roller system, available with over 10 different roller types, specifically configured based on log diameter and required cleaning level, ensuring effective separation of bark and debris.

RDG and CSC can be combined in the same line, maximizing cleaning efficiency and material feeding performance.

Thanks to the possibility of integrating multiple independent motors, these systems allow adjustable working speeds, optimizing material movement based on specific process needs.

Technical features & Benefits

  • Several roller surface designs suitable for the different kind of wood
  • Strong design to low maintenance range
  • High capacity of bark and residues evacuation
  • High logs transport capacity
  • Low energy demand profile
  • Low maintenance activity
  • Designed for the different requirement of the customer

Gallery

Technical features

MODEL
OVERALL DIMENSIONS mm ***
A
B
C
N° rollers
RDG**
800 ÷ 1650
5000 ÷ 21000
800 ÷ 1600
10 ÷ 38

MODEL
CAPACITY m3/h Sob
POWER kW
WEIGHT Kg
RDG**
30 ÷ 400
***
5000 ÷ 20000
***According to customer needs
**According to dimensions
