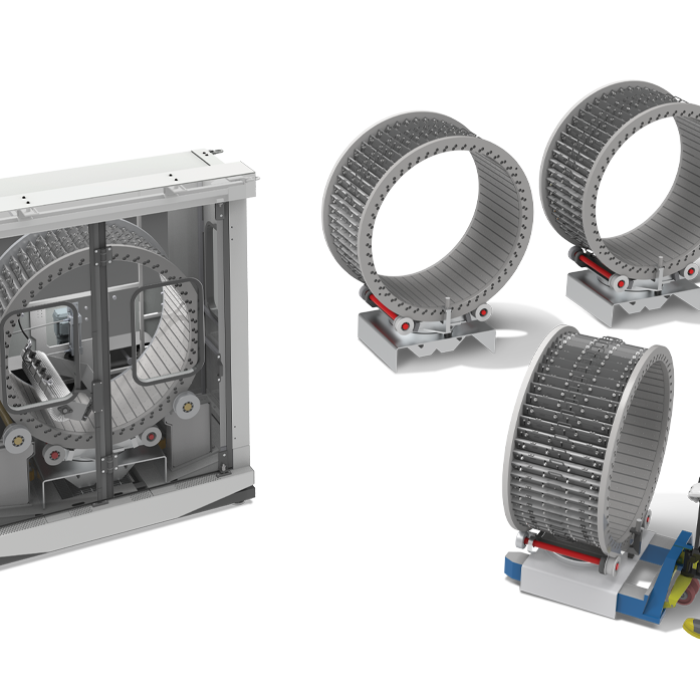

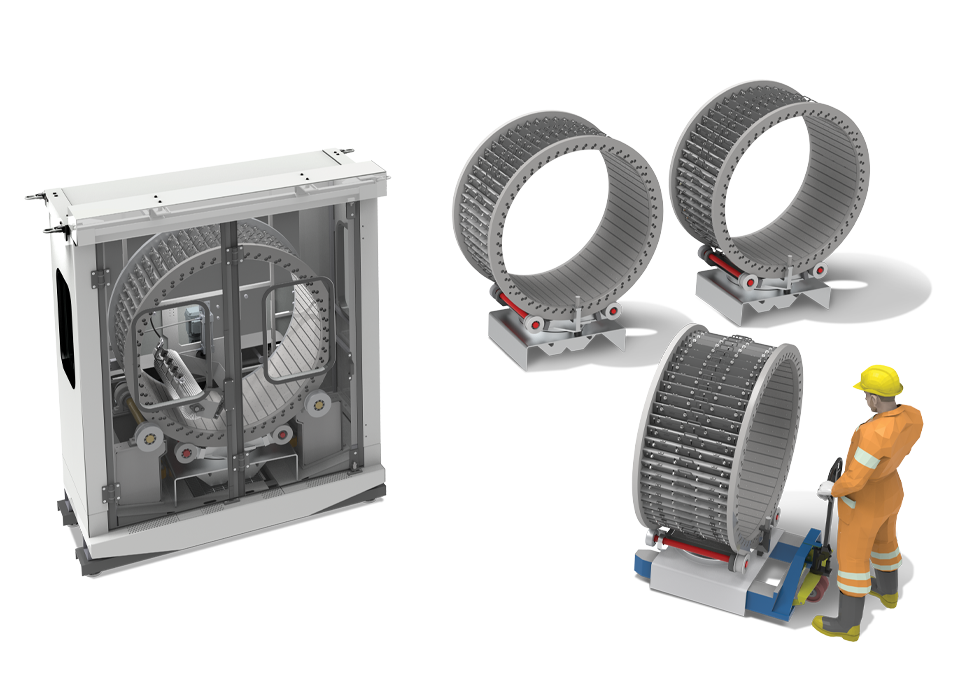

KNIFE RING WASHER – WMG

Knife ring washer – WMG is a high-efficiency washing machine, specifically designed for cleaning knife rings, combining power and precision in a fully automated process.
Proudly made by

Best in class for

WOOD BASED PANELS
PB/SPB, OSB/LSB/FOSB

Characteristics

WMG knife ring washer by Globus Srl is an advanced washing unit designed for knife rings and flaker blades used in particleboard and wood-based panel production lines.
It ensures deep, precise cleaning of rings and blades, removing glue, resin, dust, and wood particles accumulated during operation.
Thanks to its high-efficiency design and automation, this industrial knife ring washer guarantees consistent cleaning quality, reduced water consumption, and minimal maintenance.

WMG is an essential component in any knife ring maintenance line, typically paired with the ASR Automatic Sharpening Room to ensure complete knife management — from washing to sharpening and reinstallation.

Technical features

  • Optimized nozzle set positioned in different area to clean with high efficiency the nuts, screw and holder
  • Possibility to setup different cycle settings according to needs, from 5 min up to 120 min
  • Different side spraying angle
  • Complete machine prewired and pre-connected
  • Control panel complete with a PLC system allowing the choice of different washing cycle

Gallery

Technical features

TECHNICAL DATA
CYCLE TIME
30 Min / 1 Ring
WATER REQUIREMENTS
2400 l/h
HIGH PRESSURE
160 bar
TOTAL INSTALLED POWER
18 kW

MODEL
OVERALL DIMENSIONS mm
A
B
C
D
E
WMG 490
1250
2300
2700
900
2300
WMG 690
1450
2300
2700
900
2300
WMG - Customized
***
***
***
***
***
***According to customer needs
