VIBRATING FEEDER – AVG

Vibrating feeder – avg by Globus Srl ensures smooth and continuous wood material feeding, improving flow consistency and enhancing the efficiency of downstream operations in wood-based panel production lines.
Proudly made by

Best in class for

WOOD BASED PANELS
PB/SPB, MDF/HDF
PRESSED WOOD PACKAGING
PALLET BLOCKS, PRESSED PALLETS
PELLET & ENERGY
WOOD PELLETS AND BLACK PELLETS, GREEN FUELS AND BIOMASS, THERMAL AND ELECTRIC ENERGY
WOOD RECYCLING AND WASTE TREATMENT
CUSTOMIZED SOLUTIONS FOR RECYCLING

Characteristics

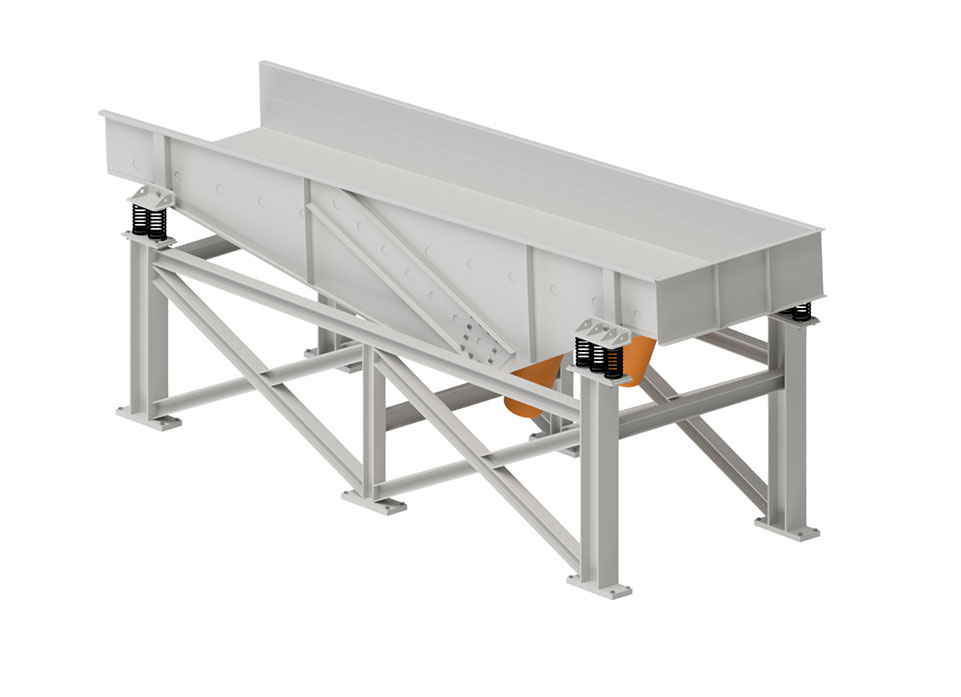

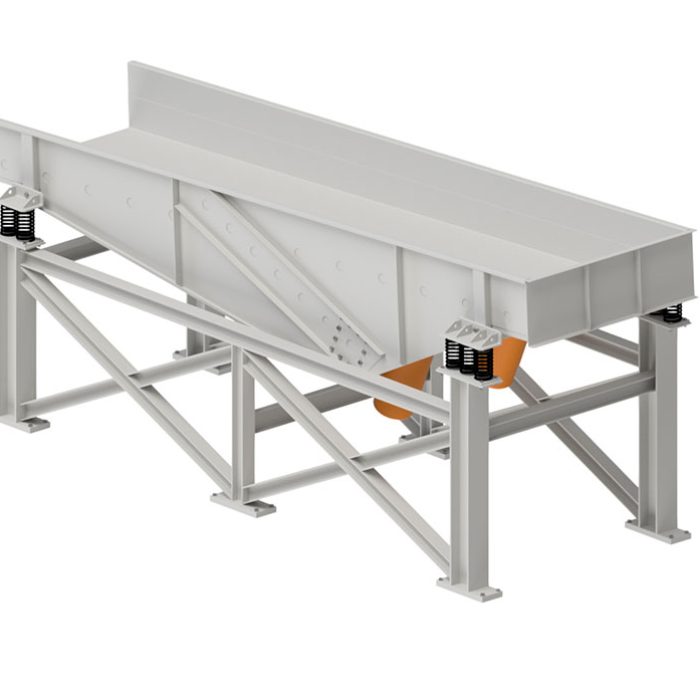

Vibrating feeder – avg by Globus Srl is an industrial feeding system designed for the transport and distribution of wood chips, flakes, and sawdust in OSB, MDF, particleboard, and biomass production lines.
This robust and reliable vibrating channel ensures steady material flow, homogeneous feeding, and uniform distribution to downstream machines such as drum chippers, knife ring flakers, or refiners.
Its compact structure and advanced vibration technology guarantee smooth operation, minimal maintenance, and consistent material alignment even under heavy loads or variable moisture content.
The system’s mechanical design is optimized for continuous operation, ensuring excellent durability and energy efficiency.

Technical features

  • Ideal to install it after a chipper or to feed rechipper or flakers
  • Easy transport of chips or flakes to enlarge the wood material
  • Optimal speed and distribution of the chips
  • Possibility to setup different angle according to chipsmoisture and size
  • High reliability and low maintenance
  • Suspension springs with regulation
  • Possible installation of a magnetic drum at the outlet

Gallery

Technical features

MODEL
OVERALL DIMENSIONS mm***
A
B
C
AVG** / AVE**
500 ÷ 2000
1500 ÷ 7000
200 ÷ 600

MODEL
CAPACITY m3/h
POWER kW
WEIGHT kg
M1
AVG** / AVE**
***
1 ÷ 22
100 ÷ 3600
***According to customer needs
**According to dimensions
