WATER PIT

The machine is designed to separate the material from the contaminants. The agitator unit creates a current that drives the floating material towards the clean material outlet hopper. The material to be treated is separated according to its weight. The lightest wood floats and is conveyed to the output hopper. The heavier pollutants sink to the bottom of the tank and are conveyed to the pollutant outlet hopper.

PROUDLY MADE BY

Best in class for

WOOD BASED PANELS

PB/SPB, MDF/HDF

PRESSED WOOD PACKAGING

PALLET BLOCKS

Technical features

Wet cleaning system suitable to remove heavy pollutants out of the oversize chips
Working principle based on difference in bulk density of infeed materials
Chips flow is fed into a water pit where lighter materials float while the heavier pollutants such as stones, metals, etc. fall down and are removed by a chain conveyor
On the opposite side the same conveyor removes the floating material, wood, etc. after draining.

Vantaggi

Recovery of clean oversize chips to production
High reliability
Very low maintenance cost
Low energy consumption

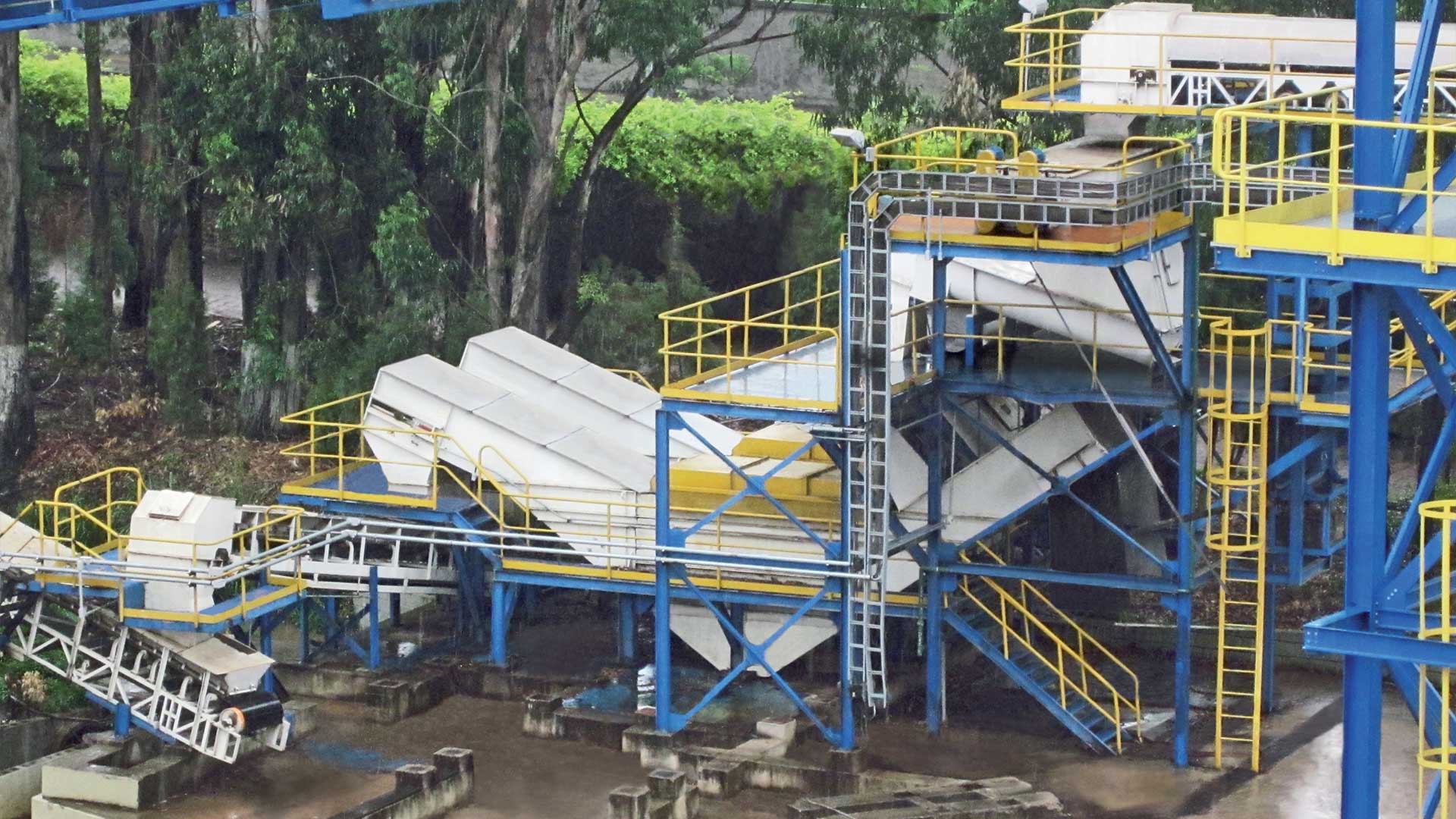

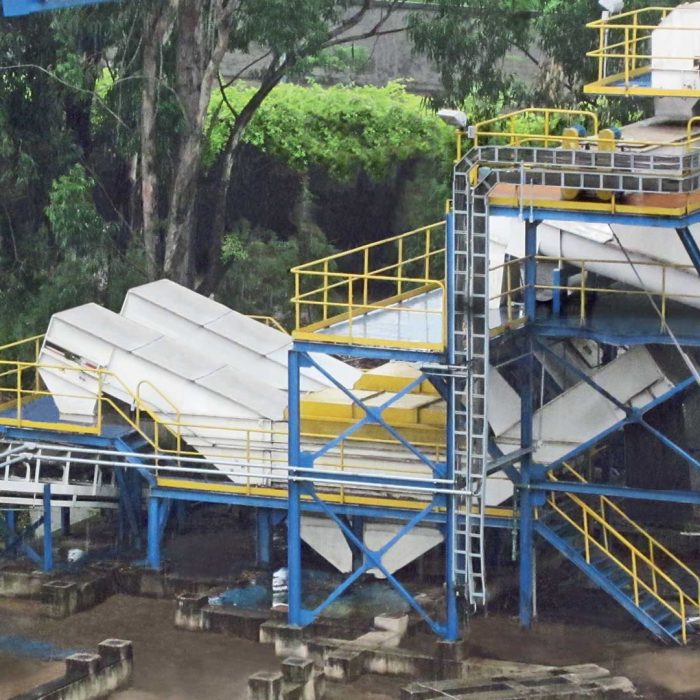

Gallery

Technical features

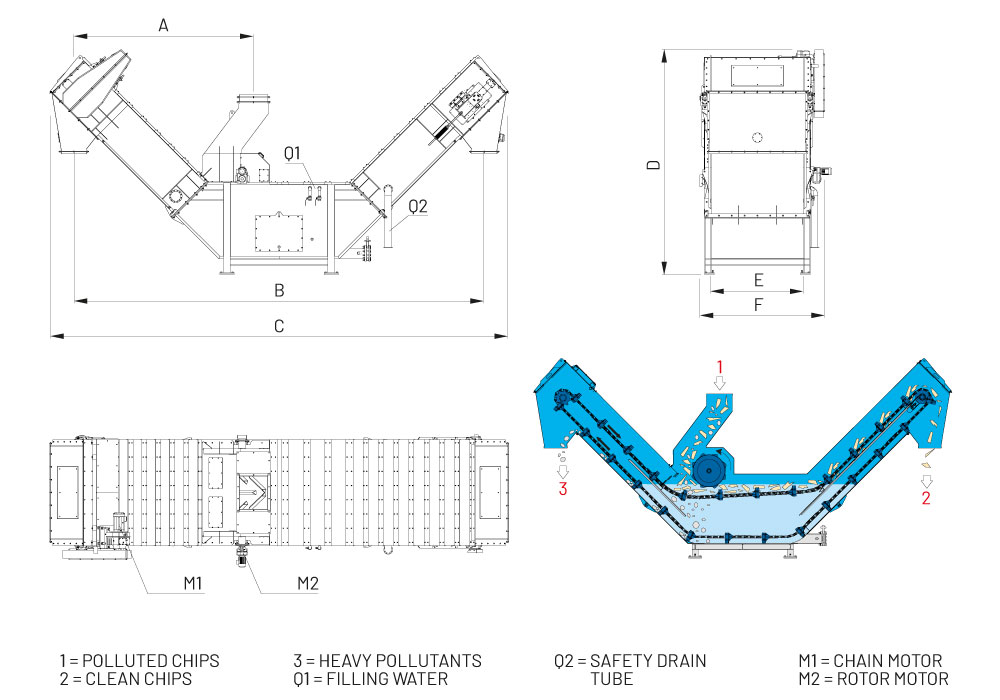

MODEL	OVERALL DIMENSIONS mm
MODEL	A	B	C	D	E	F
WP.1000	3788	8653	9665	4632	1000	1635
WP.2000	3788	8653	9665	4632	2000	2635

MODEL	CAPACITY BULK CHIPS		TANK CAPACITY APPROX. m3	WATER CONSUMPTION l/min - top	INSTALLED POWER kW		WEIGHT WITHOUT WATER APPROX. kg
MODEL	m3/h	t/h*	TANK CAPACITY APPROX. m3	WATER CONSUMPTION l/min - top	M1	M2	WEIGHT WITHOUT WATER APPROX. kg
WP.1000	29	4,4	5,5	30	4	2,2	10000
WP.2000	58	8,7	11	60	5,5	3	12600
*With bulk density 150 kg/m3 b.d.
