UC950

The system has been designed to provide a rapid measurement of the moisture content present in wood chips and sawdust manually, at the entrance to the production facility, so that the actual cost of the raw material may be determined on a dry basis.

PROUDLY MADE BY

Best in class for

WOOD BASED PANELS

PB/SPB, MDF/HDF

PRESSED WOOD PACKAGING

PALLET BLOCKS

PELLET & ENERGY

GREEN FUELS AND BIOMASS

Technical features

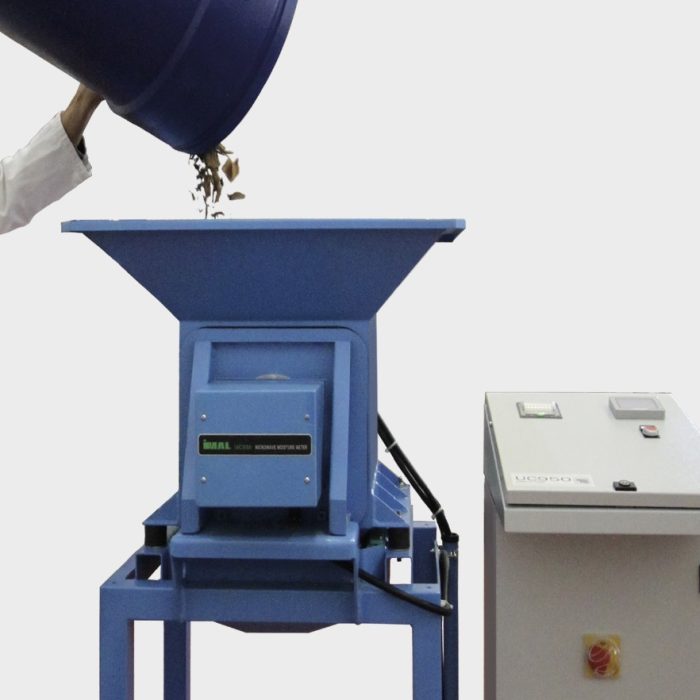

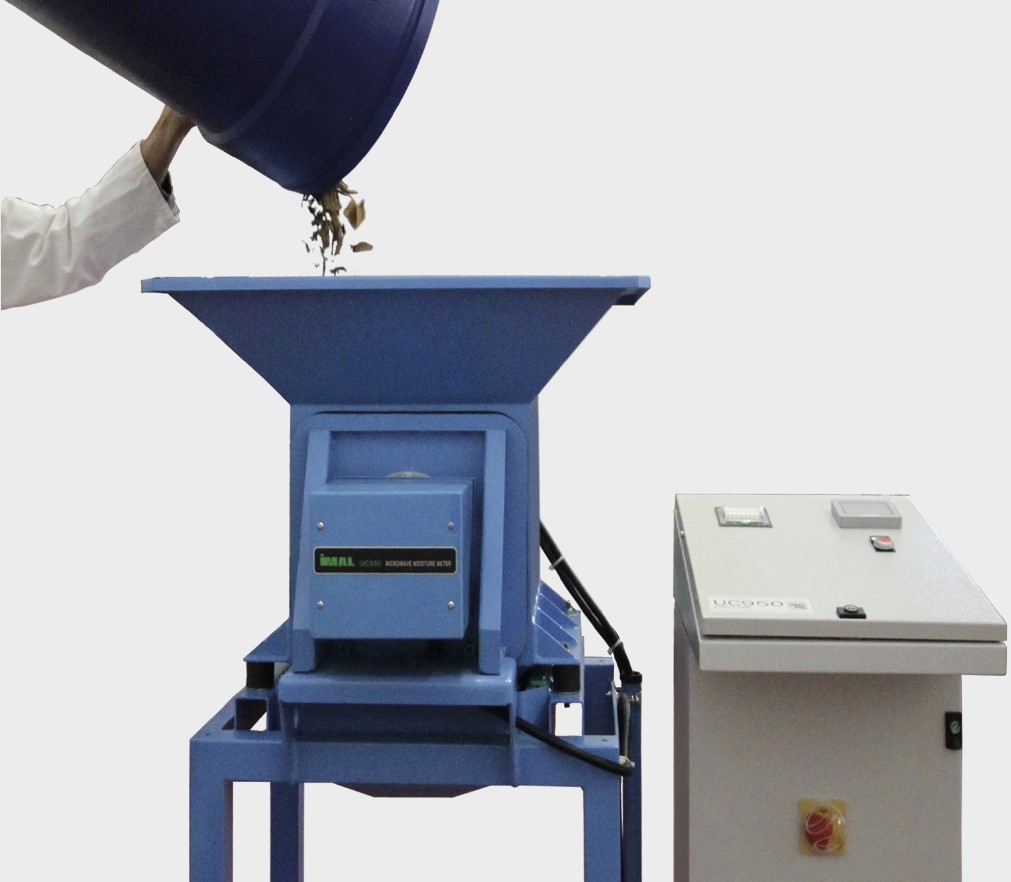

The material is collected by the operator from the truck transporting the chips or sawdust at the entrance to the production facility and then placed in the chute (35 – 50 litres)
The system levels the material and immediately measures moisture content within a range of 10% – 150% on a dry basis and the moisture content over the total within a range of 10%- 60%.
The moisture content measured is then displayed on the screen.
Microwave technology is applied to conduct the measurement
The result may be printed utilizing the built-in printer
The printout may then be stapled to the delivery note to determine the actual cost of the raw material on a dry basis

Vantaggi

The measurement is extremely rapid and accurate since it is taken over an area of approximately 300 mm

Gallery

Technical features

TECHNICAL DATA
MOISTURE RANGE	10% - 60% referred to the total (TOTAL)
MOISTURE RANGE	10% - 150% referred to a dry basis (ATRO)
OPERATING TEMPERATURE RANGE	-5 ÷ +50 °C
MEASURING TIME from when the sample is inserted	20 sec max
REMOTE OUTPUTS	via analogue 4 - 20 mA output or serial port
VOLTAGE	115 - 230 VAC
PRINTER	yes
