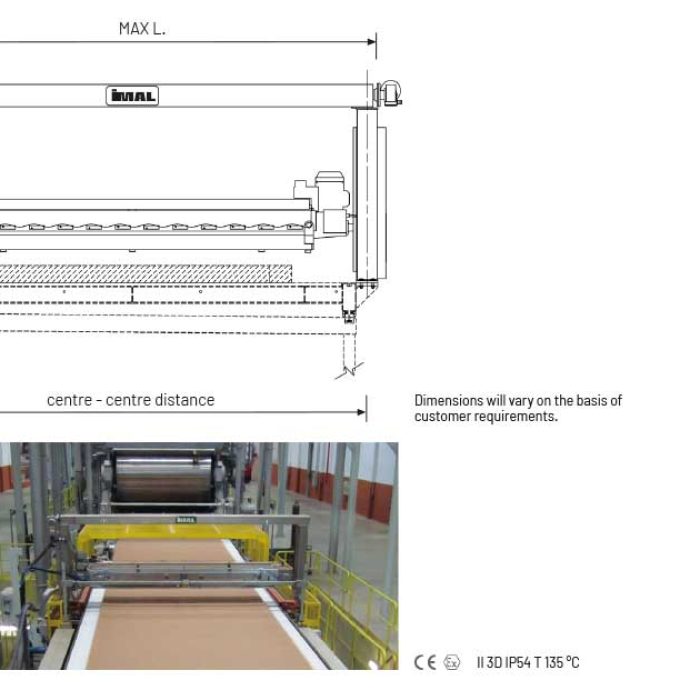

TS100

PROUDLY MADE BY

Best in class for

WOOD BASED PANELS

PB/SPB, MDF/HDF, OSB/LSB/FOSB

Assembly made from steel and corrosive resistant materials
Accurate mixing of water and additive
Electronic control of the exact amount of solution to be sprayed and recycled
Sophisticated water purification system included
Solution sprayed by means of centrifugal force
Electronic control may be implemented with Siemens PLC (Profibus, Profinet and Ethernet) or Allen-Bradley PLC (Control net and Ethernet) upon request
May be used for all kinds of boards
Equipment conforming to Directive 94/9/CE ATEX 95 requirements and suitable for Zone 22 installation (based on Directive 99/92/CE ATEX 137), i.e. intended for use in potentially explosive environments due to the presence of dust

TECHNICAL DATA
NUMBER OF ROTORS	Max 20
TOTAL SPRAYING SPAN	Max 3800 mm
MAX. FLOW FOR EACH ROTOR	800 g/min
RELEASE AGENT CONCENTRATION	Min 0.2%
MIN. DIFFERENCE IN HEIGHT BETWEEN SPRAYING UNIT AND PUMPING UNIT	1500 mm
RATED POWER	7.5 kW
THREE-PHASE ELECTRICAL SUPPLY	400/440 V - 50/60 Hz
CONTROL CIRCUIT VOLTAGE	230/120 V - 50/60 Hz
