TRANSLATING SCREWS

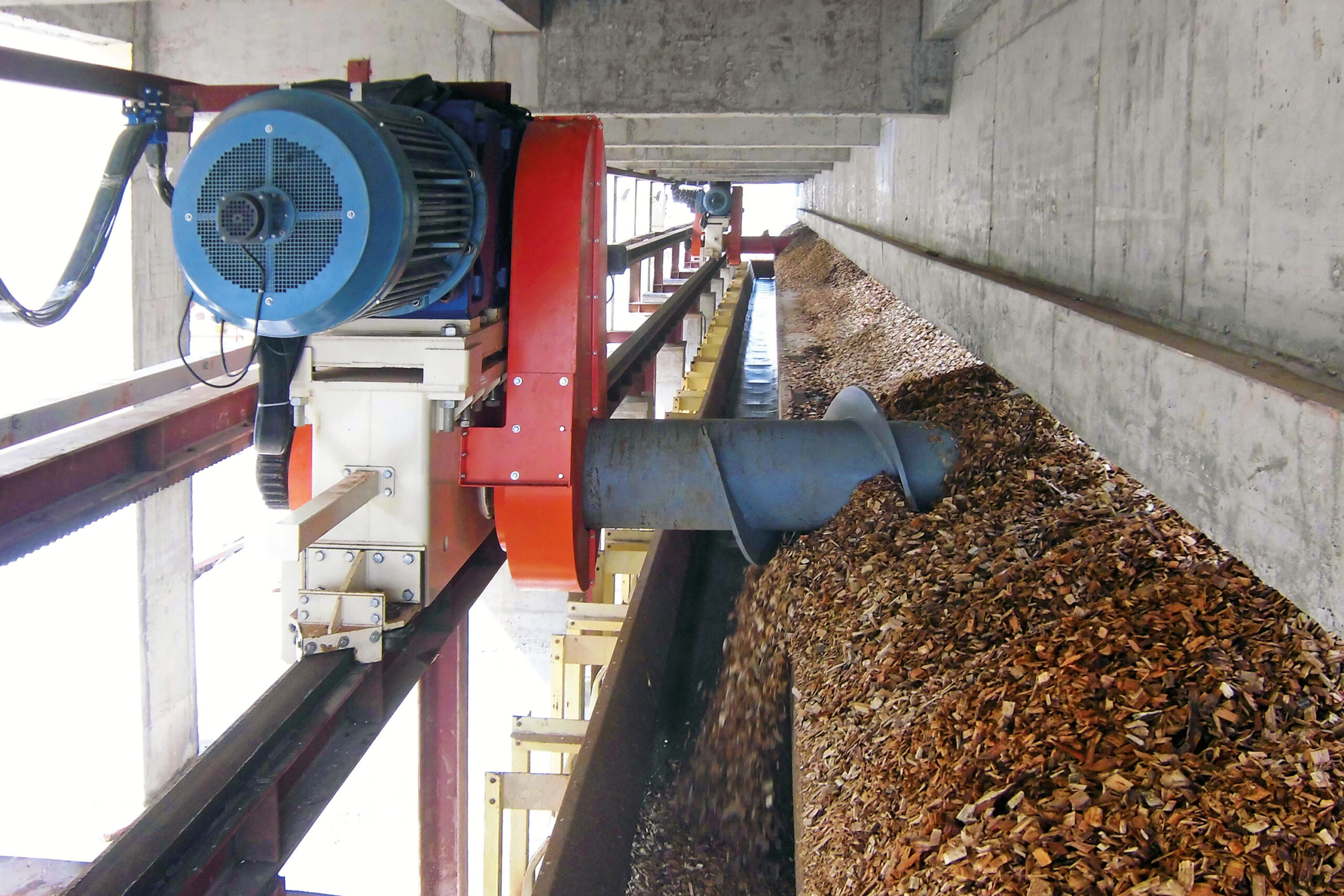

The machine is designed to extraxt wood chips or wet powdery material from a rectangular-shaped silo.

PROUDLY MADE BY

Best in class for

WOOD BASED PANELS

PB/SPB, MDF/HDF, INSULATION BOARDS

PRESSED WOOD PACKAGING

PALLET BLOCKS

PELLET & ENERGY

WOOD PELLETS AND BLACK PELLETS, THERMAL AND ELECTRIC ENERGY

WOOD RECYCLING AND WASTE TREATMENT

CUSTOMIZED SOLUTIONS FOR RECYCLING

Wide range of extraction capacity achieved by controlling the dosing screws with frequency converters
High dosing accuracy from progressively variable pitch screws
Very easy maintenance
Very simple and cheap system
High reliability
Very low maintenance cost

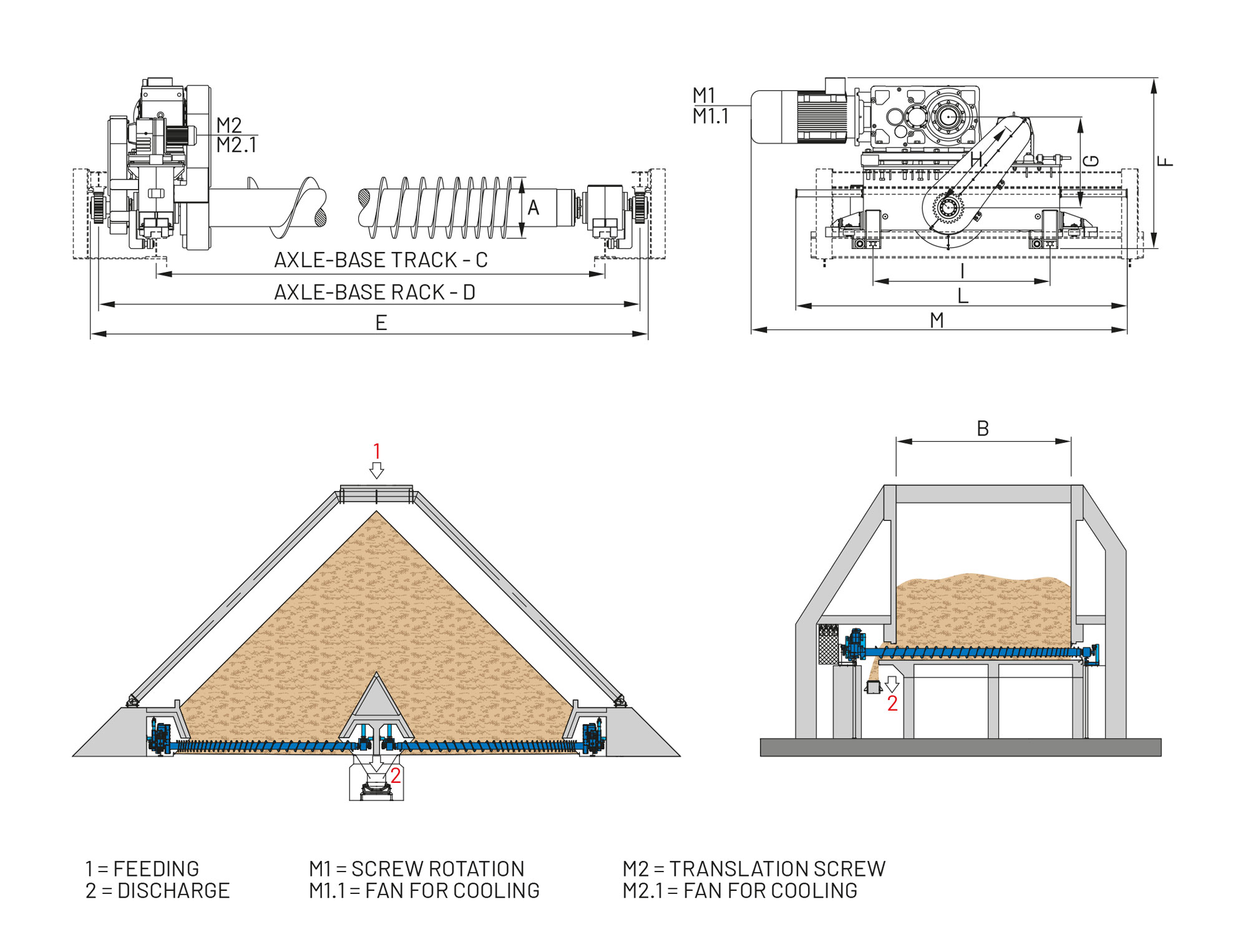

MODEL	OVERALL DIMENSIONS mm											INSTALLED POWER kW	EXTRACTION CAPACITY m3/h	WEIGHT APPROX. kg
MODEL	A	B	C	D	E	F	G	H	I	L	M	INSTALLED POWER kW	EXTRACTION CAPACITY m3/h	WEIGHT APPROX. kg
TSC 600/6000	600	6000	9500	10560	10750	1960	1050	1130	2030	3800	4300	*	**	9800
TSC 600/7500	600	7500	11000	12060	12250	1960	1050	1130	2030	3800	4300			12300
TSC 600/10000	600	10000	13300	14360	14550	1960	1050	1130	2030	3800	4300			16300
TSC 700/6000	700	6000	9500	10560	10750	1960	1050	1130	2030	3800	4300			10000
TSC 700/7500	700	7500	11000	12060	12250	1960	1050	1130	2030	3800	4300			12500
TSC 700/10000	700	10000	13300	14360	14550	1960	1050	1130	2030	3800	4300			16600
TSC 800/6000	800	6000	9500	10560	10750	1960	1050	1130	2030	3800	4300			10200
TSC 800/7500	800	7500	11000	12060	12250	1960	1050	1130	2030	3800	4300			12700
TSC 800/10000	800	10000	13300	14360	14550	1960	1050	1130	2030	3800	4300			16900
TSC 900/6000	900	6000	9500	10560	10750	1960	1050	1130	2030	3800	4300			10400
TSC 900/7500	900	7500	11000	12060	12250	1960	1050	1130	2030	3800	4300			12900
TSC 900/10000	900	10000	13300	14360	14550	1960	1050	1130	2030	3800	4300			17200
Wide range available, according to project Customer needs *According to ensiled material and extraction capacity
