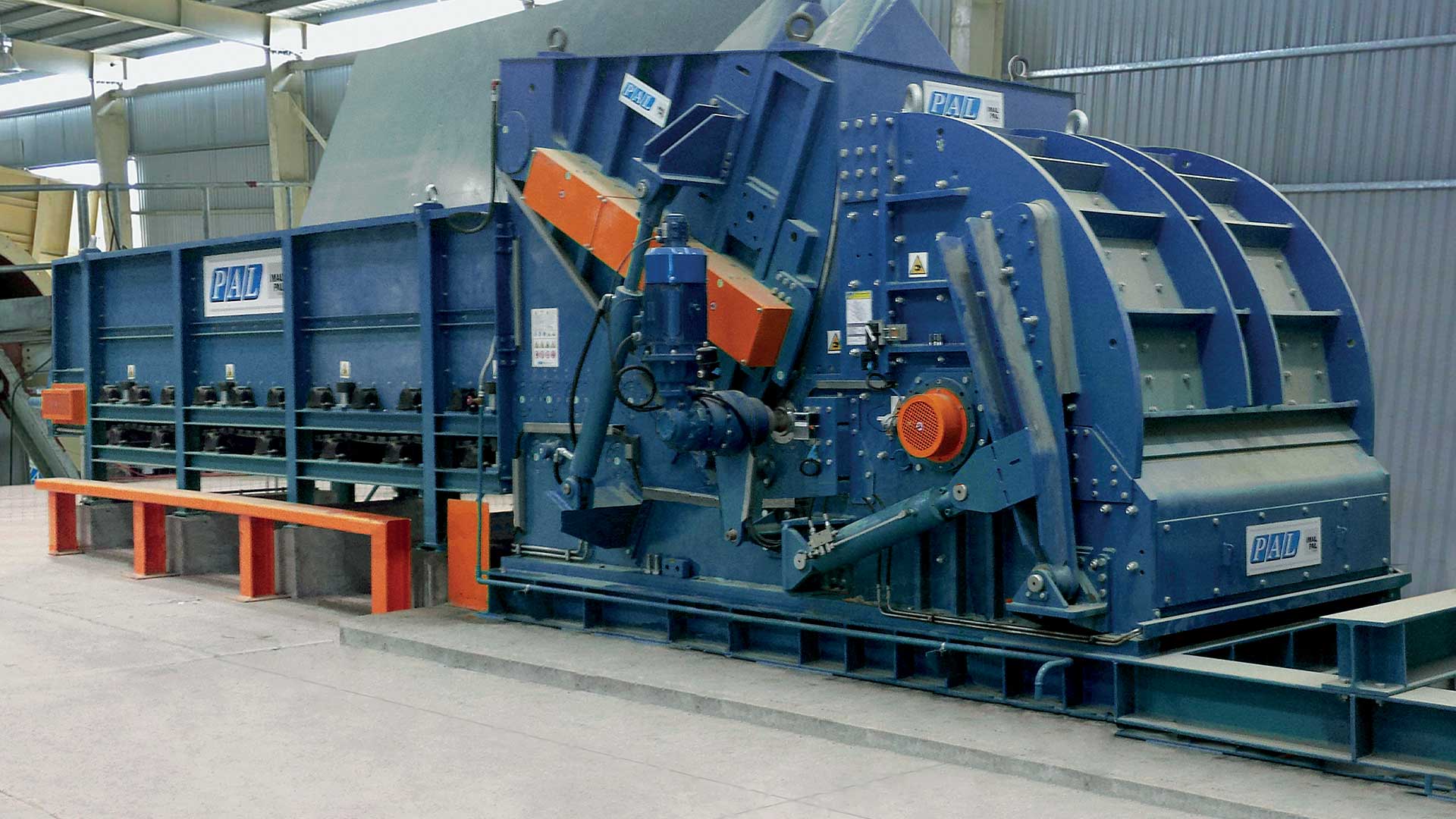

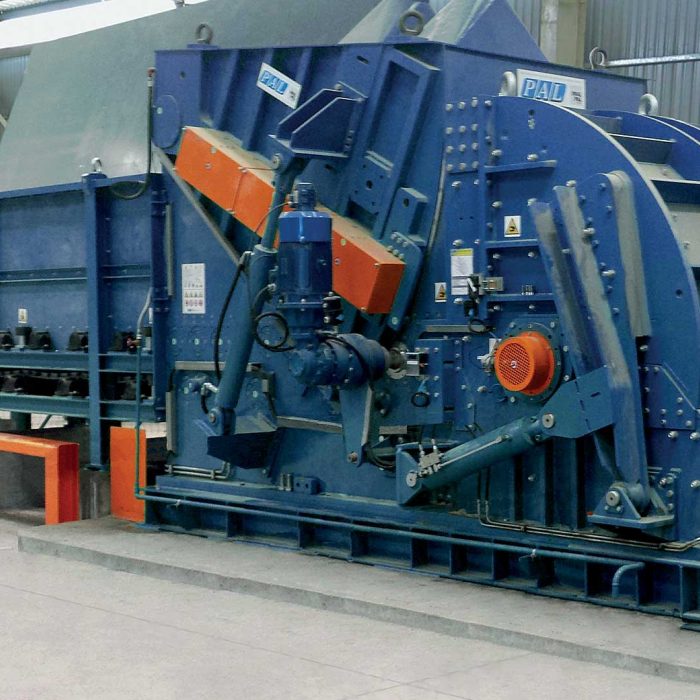

TIGER

The machine is designed in order to break down recycled wood (off-cuts, pallets, scrap material) into different shapes and sizes in order to obtain finer material.

PROUDLY MADE BY

Best in class for

WOOD BASED PANELS

PB/SPB

PRESSED WOOD PACKAGING

PALLET BLOCKS

PELLET & ENERGY

THERMAL AND ELECTRIC ENERGY

WOOD RECYCLING AND WASTE TREATMENT

CUSTOMIZED SOLUTIONS FOR RECYCLING

Technical features

U-feeder based on vibrating channel or long chain-plate conveyor and terminal toothed rollers
Swivelling introduction head with toothed rollers
High speed rotor equipped with very strong hammers
Digesting chamber equipped with openable inspection gates and inner wearproof protections
Front flaps to reject indigestible materials such as large metallic contaminants, etc.
Very big strong hammers
Outfeed screen to control the size of crushed chips

Vantaggi

Easy digestion of all urban forest material, bulky or pre-crushed
Easy digestion of pollutants such as minerals, stones, plastics, glass, etc.
Elimination of bigger and tougher heavy pollutants
Very low specific energy consumption and maintenance

Gallery

Technical features

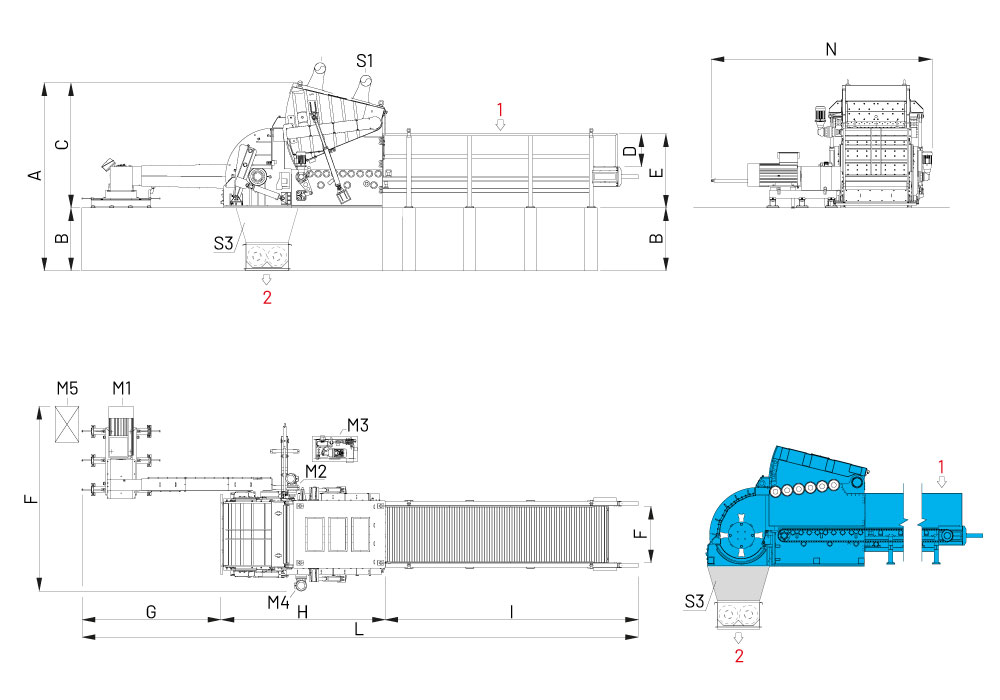

MODEL	OVERALL DIMENSIONS mm
MODEL	A	B	C	D	E	F	*G	H	I	L	M	N
TIGER 150-70C	4830	1800	3030	1080	2260	3600	3620	5390	6653	15663	1500	6570
TIGER 180-90L	4128	765	3363	1080	2257	7881	3565	4487	6653	14705	1830	5546
TIGER 210-90	4780	765	4015	1080	2257	7881	3565	5145	10170	19835	2000	7072
*Variable according to motor size

MODEL	INLET SECTION mm			ROTOR DIAMETER mm	CAPACITY** t/h		INSTALLED POWER kW
MODEL	WIDTH	HEIGHT	HEIGHT OF MATERIAL	ROTOR DIAMETER mm	BULKY MATERIALS***	PRE-CRUSHED MATERIALS****	M1**	M2	M3	M4	M5
TIGER 150-70C	1550	700	400	1200	15-20	30-40	400-500	15	5,5	9,2	55
TIGER 180-90L	1800	1350	900	1400	25-35	45-65	400-500	15	5,5	11	75
TIGER 210-90	2000	1350	900	1400	30-40	50-70	710-1000	15	7,5	11	75
Based on pre-crushed material, bulk density 150 kg/m3 bd, moisture content < 25% bd *According to type, bulk density and moisture content of material to crush

MODEL	EXHAUST SUCTION S1			EXHAUST SUCTION S2
MODEL	SUCTION m3/h	AIR SPEED m/s	SUCTION PRESSURE Pa	SUCTION m3/h	AIR SPEED m/s	SUCTION PRESSURE Pa
TIGER 150-70C	2x2570	29	1000	4000	29	1000
TIGER 180-90L	2x10000	29	1000	10000	29	1000
TIGER 210-90	2x10000	29	1000	10000	29	1000
