SW200 & BT200

PROUDLY MADE BY

Best in class for

WOOD BASED PANELS

PB/SPB, MDF/HDF, OSB/LSB/FOSB

Technical features

The SW200 and BT200 appliances consist of a water bath which is used to carry out laboratory and immersion tests on samples of wood-based panels (particleboard, MDF, OSB) in accordance with EN European standard require-ments (it may also be used in conjunction with other IMAL equipment) such as:

Swelling and absorption (EN 317)
Boil test (EN 1087-1)

Vantaggi

The system has a control unit for regulating temperature as required by the EN standards
Up to 2 separate timers may be set on the touchscreen display (one per sample rack)
Temperature is monitored from the trend view

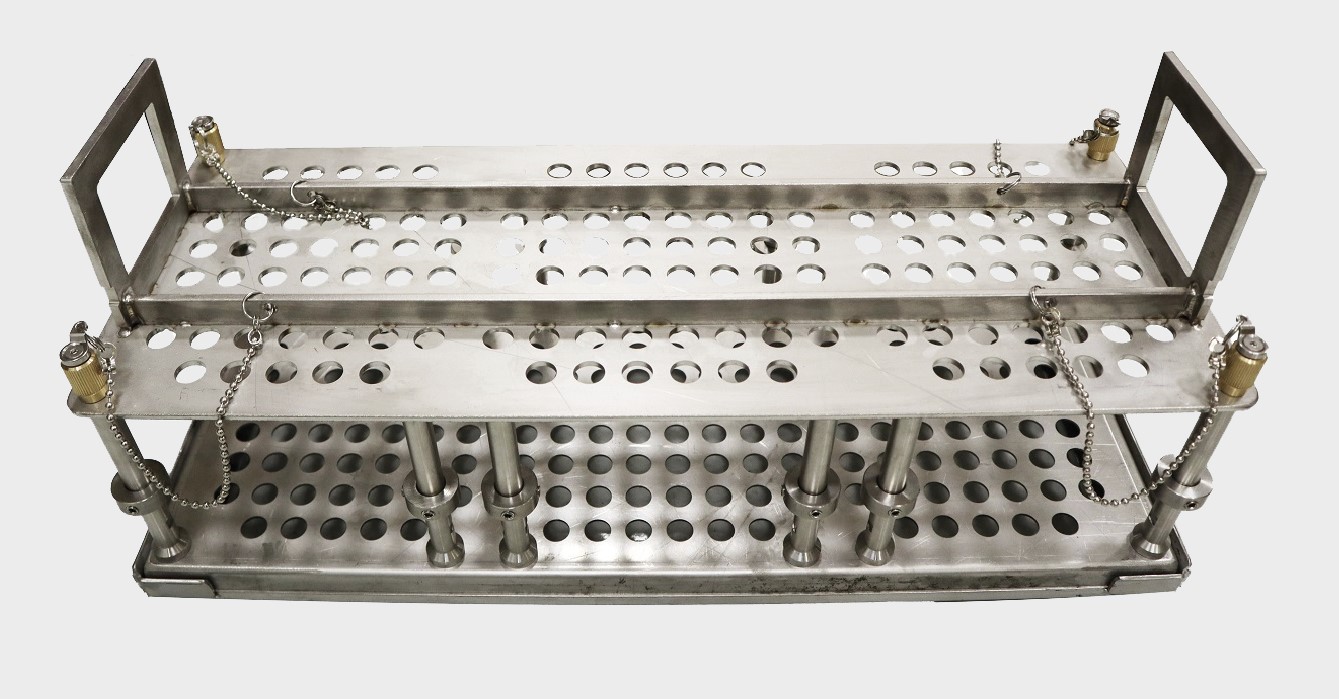

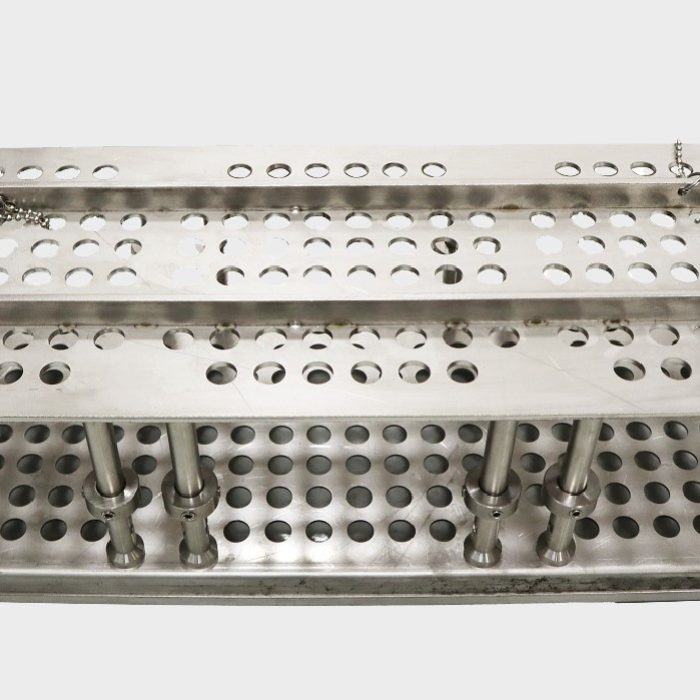

The equipment comes with racks for immerging the samples for the test that is to be carried out, the 2 racks for the EN317 swelling test have been designed to house the samples in full compliance with the standard requirements and the distances indicated. The 2 racks for the BT200 version for the EN1087-1 test can house the samples that have been glued to the relative supports
Water temperature is set on the display in relation to the test which is to be carried out, and is regulated by a PID control, an immersion heater is fitted inside the tank to regulate the water temperature at the required value
The system is also equipped with a level control, safety temperature control and drain tap.

Gallery

Watch the video

Technical features

TECHNICAL DATA SW200 & BT200
operating temperature (en 317)	20 °C
operating temperature (en 1087-1)	100 °C
TEMPERATURE STABILITY	± 1 °C
RESOLUTION	0.1 °C
NOMINAL SAMPLE SIZE	50 x 50 mm
WATER VOLUME	36 l
INSTALLED POWER	2.8 kW / 230 V
SAMPLES PER RACK SW200	24 ÷ 136 (in relation to thickness)
SAMPLES PER RACK BT200	12

Technical data SW200 BLOCK & BT200 BLOCK
operating temperature SW200 Block / BT200 Block	20 °C / 100 °C
TEMPERATURE STABILITY	± 1 °C
RESOLUTION	0.1 °C
Water volume SW200 Block / BT200 Block	89 l / 55 l
INSTALLED POWER SW200 Block / BT200 Block	2.8 kW / 4.0 kW
NUMBER of SAMPLES PER RACK SW200 Block / BT200 Block	10/6
