STEPPER SCREEN

DOWNLOAD TECHNICAL SHEET

PROUDLY MADE BY

Best in class for

WOOD BASED PANELS

PB/SPB, MDF/HDF, OSB/LSB/FOSB, INSULATION BOARDS
PRESSED WOOD PACKAGING
PALLET BLOCKS
PELLET & ENERGY
WOOD PELLETS AND BLACK PELLETS, THERMAL AND ELECTRIC ENERGY
WOOD RECYCLING AND WASTE TREATMENT
CUSTOMIZED SOLUTIONS FOR RECYCLING

Technical features

  • New patented screening principle from PAL
  • Self-cleaning screening system
  • High production throughput, adjustable by inverter
  • One machine only combining a ballistic and aeraulic starscreening
  • Hydraulically adjustable machine inclination

Vantaggi

  • (Easily) settable selection size
  • Small footprint machinery
  • Wide range of operation according to the material type
  • Low maintenance cost

Gallery

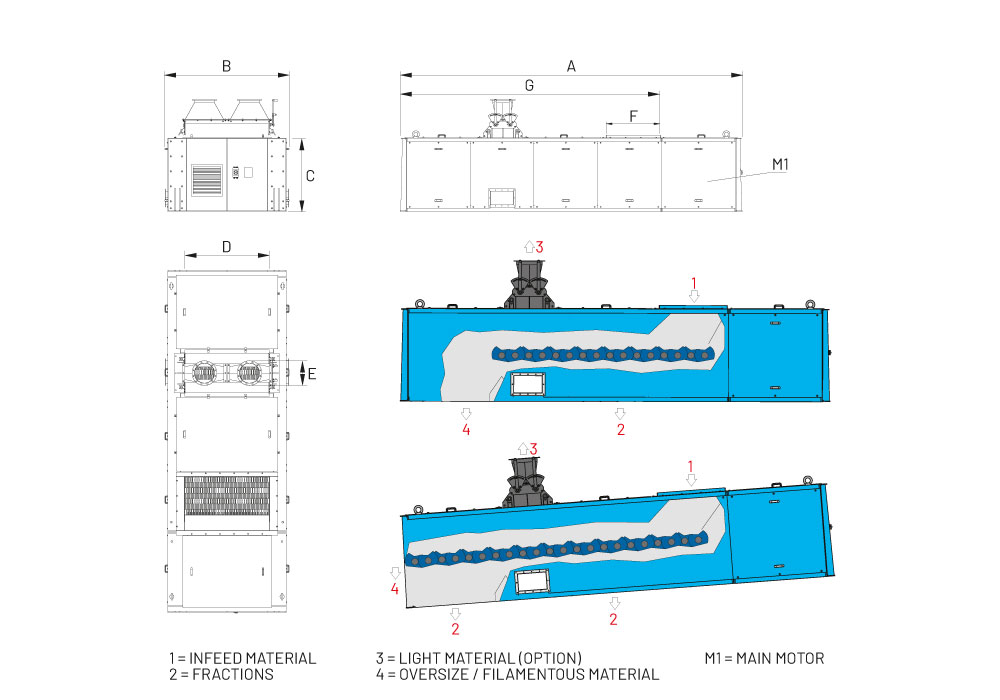

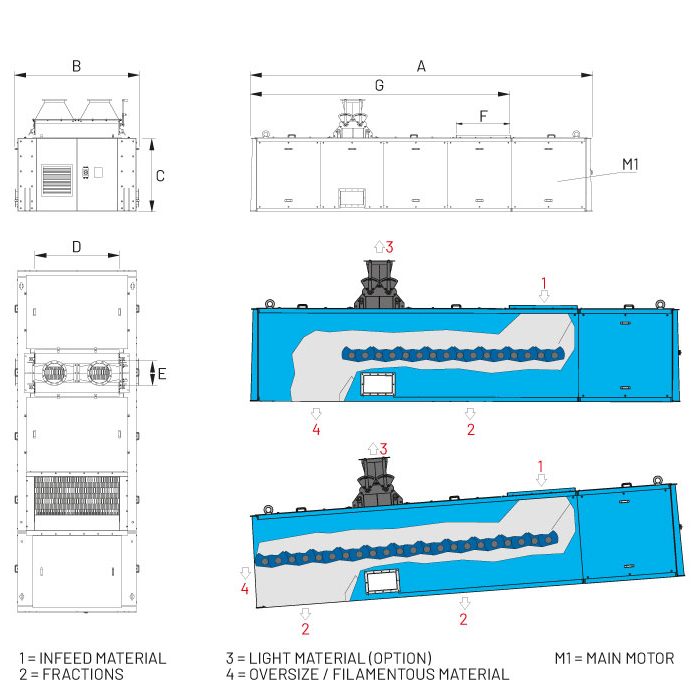

STEPPER_Disegno

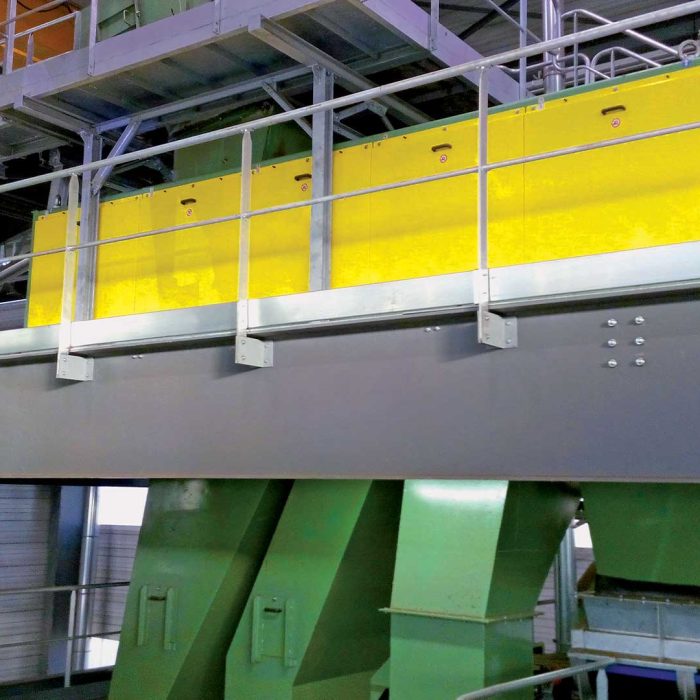

STEPPER_Hero

Technical features

MODEL
OVERALL DIMENSIONS mm
CAPACITYTOTAL INSTALLED POWER kW
A
B
C
D
E
F
G
STS.1-4500-1500
6045
2200
1300
1500
1x280
950
4500
According to type
of material, gap and number
of rolls
7,5-15
According to number of rolls
STS.1-4000-1500
5545
2200
1300
1500
1x280
950
4000
STS.1-3200-1500
3200
2200
735
1500
-
600
3200
