GRINDING MACHINES – SMG

The machine is designed to grind the knives, ensuring optimal performance and consistently high cutting quality.
DOWNLOAD TECHNICAL SHEET

PROUDLY MADE BY

Best in class for

WOOD BASED PANELS

PB/SPB, OSB/LSB/FOSB
PRESSED WOOD PACKAGING
PALLET BLOCKS, PRESSED PALLETS
PELLET & ENERGY
WOOD PELLETS AND BLACK PELLETS

Technical features

  • Rigid electrowelded steel structure
  • Grinding wheel holding carriage running on friction-free slides
  • Adjustable carriage speed by electronic inverter
  • Magnetic and/or mechanical clamping knife
  • Hydropneumatic brake
  • Automatic system for grinding wheel replacement
  • Electronic thickness probing device
  • Plc, touch screen control, graphic colour display; 7”
  • Upon request the machine can be customized (i.e. presetting station for grinding and assembling)

Vantaggi

  • Precision grinding machines for straight knives and flat surfaces
  • Comfortable access space to the grinding stone for a quick change
  • Quick stonechange system
  • High flexible-automation on the work cycle
  • It is possible to grind knives with different width
  • By using the presetting station there is no idle time during knives replacement

Gallery

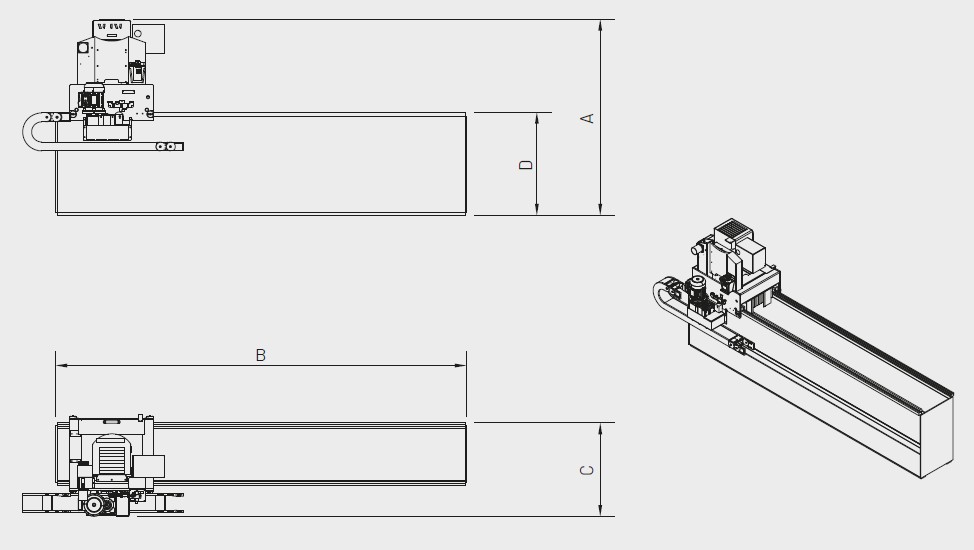

SMG_Disegno

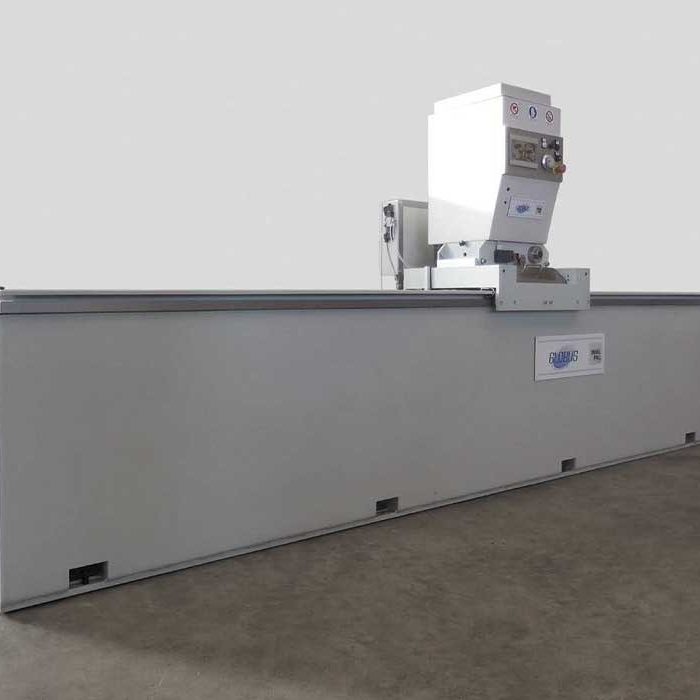

SMG_Gallery

Technical features

MODEL
OVERALL DIMENSIONS mm
A
B
C
D
SMG. 1200
1900
3600
550
1000
SMG. 1500
1900
3600
550
1000
SMG. 2100
1900
4800
550
1000
SMG. 2400
1900
4800
550
1000
SMG. 3100
1900
6000
550
1000
SMG. 3600
1900
6000
550
1000
SMG. 4100
1900
6000
550
1000
SMG. 4800
1900
7200
550
1000
SMG. 5200
1900
7600
550
1000
SMG. 6200
1900
8600
550
1000
SMG. 7200
1900
9600
550
1000

MODEL
GRINDING
MOTOR POWER kW
FEED MOTOR
POWER kW
COOLANT PUMP CAPACITY lt/min
WEIGHT
Kg
SMG. 1200
10 ÷ 30
1
100
1500 ÷ 4800
SMG. 1500
SMG. 2100
SMG. 2400
SMG. 3100
SMG. 3600
SMG. 4100
SMG. 4800
SMG. 5200
SMG. 6200
SMG. 7200
