ASR - SISTEMA DI AFFILATURA AUTOMATICO

SHARPENING ROOM – ASR

The machine is designed to turn sharpening into a fully automated process that is precisely monitored at every stage.

PROUDLY MADE BY

WOOD BASED PANELS

PB/SPB, OSB/LSB/FOSB

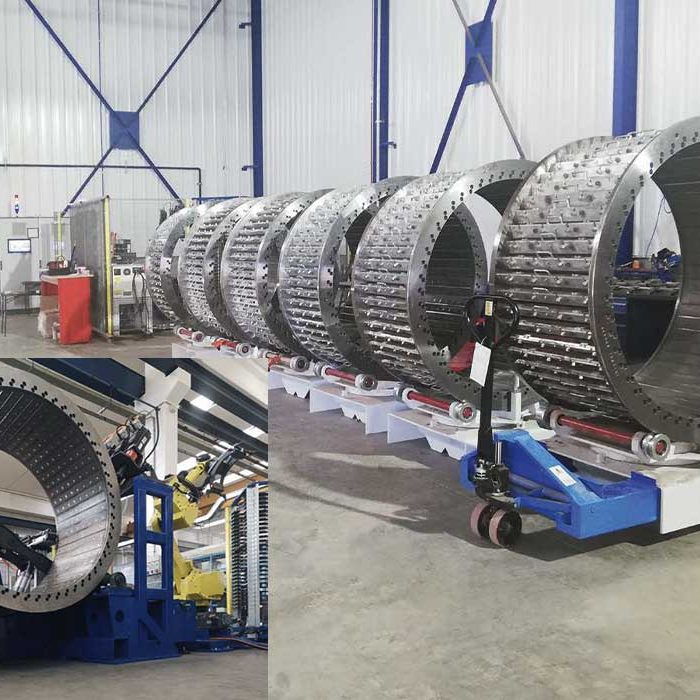

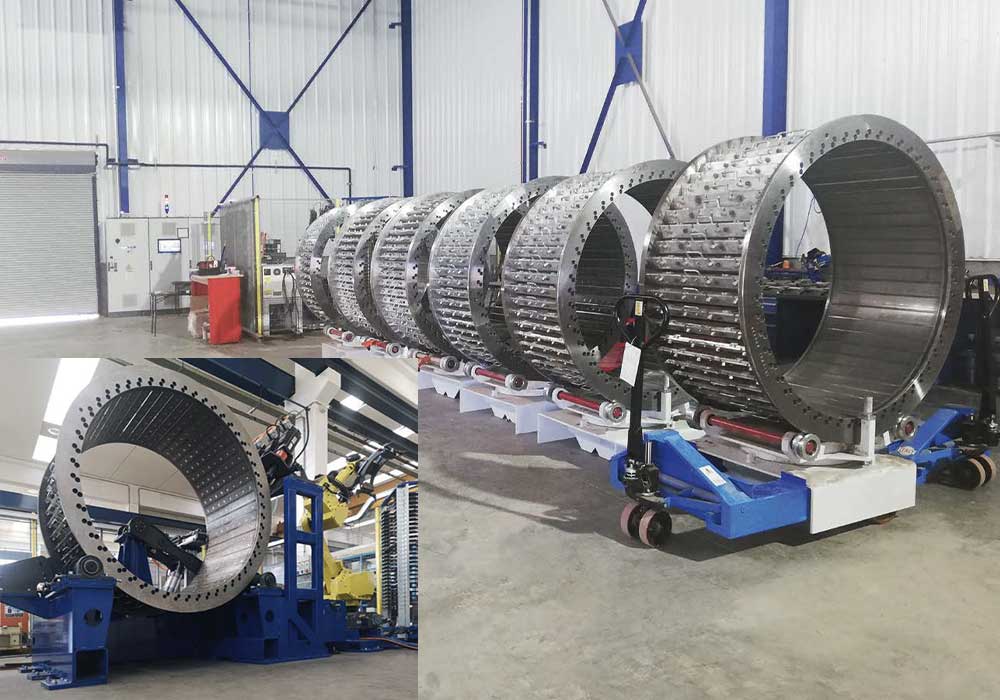

The system consists of a 6-axis robot, designed to carry out all the operations and to handle an infinite number of sharpening programmes and work process variants
All the operations are carried out in safety without the need of any operator
Each knife is removed automatically and then checked by an optical scanning system to determine the relative profile
All the operations are handled automatically and details on knives and wear plates condition are used to optimize the flaker performances

TECHNICAL DATA
TIME	From 30 to 70 min
NUMBER OF WORK CYCLE	4
TYPE OF CYCLE	FULL CYCLE FROM STORE TO RING FROM SHARP TO STORE FROM STORE TO KNIVES SETTING
KNIFE SETTING	0.1 mm ±0.1
KNIFE SHARPENING RESOLUTION	0.01 mm ±0.02
TOTAL INSTALLED POWER	38 kW
