FB

FB is a high-pressure fibre resination technology designed to significantly reduce resin consumption in the manufacture of MDF panels.
DOWNLOAD TECHNICAL SHEET

PROUDLY MADE BY

Best in class for

WOOD BASED PANELS

MDF/HDF

Technical features

  • Resin consumption reduced by 20 to 40%
  • Maximum glue mixture spraying efficiency
  • Fibre weighed constantly and glue sprayed directly at high pressure
  • Fibre mixed by the turbulence produced by the turbo blender and conveying air
  • Special atomiser nozzles to spray the glue at high pressure (over 100 bar)

Gallery

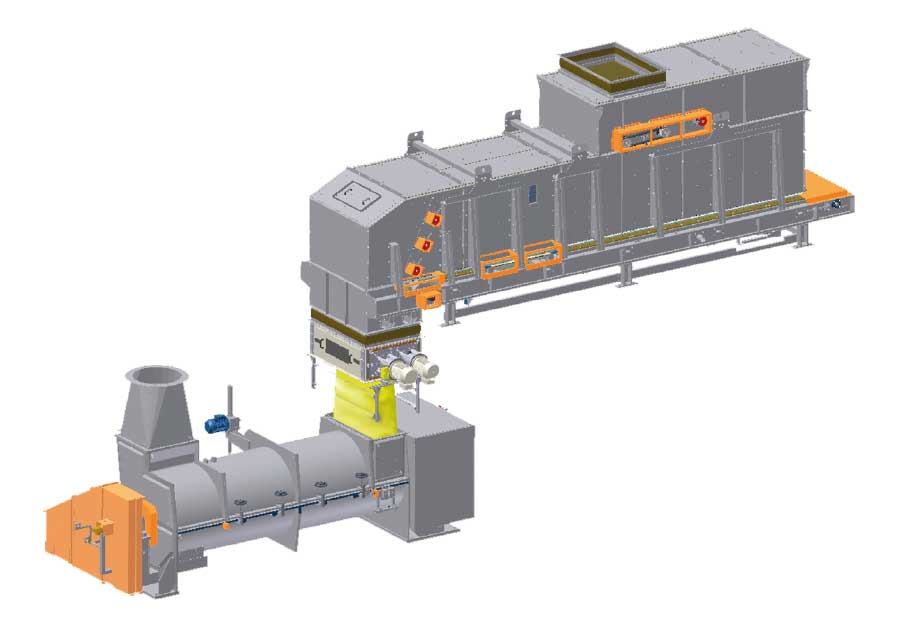

gallery-FB-1
gallery-FB-2

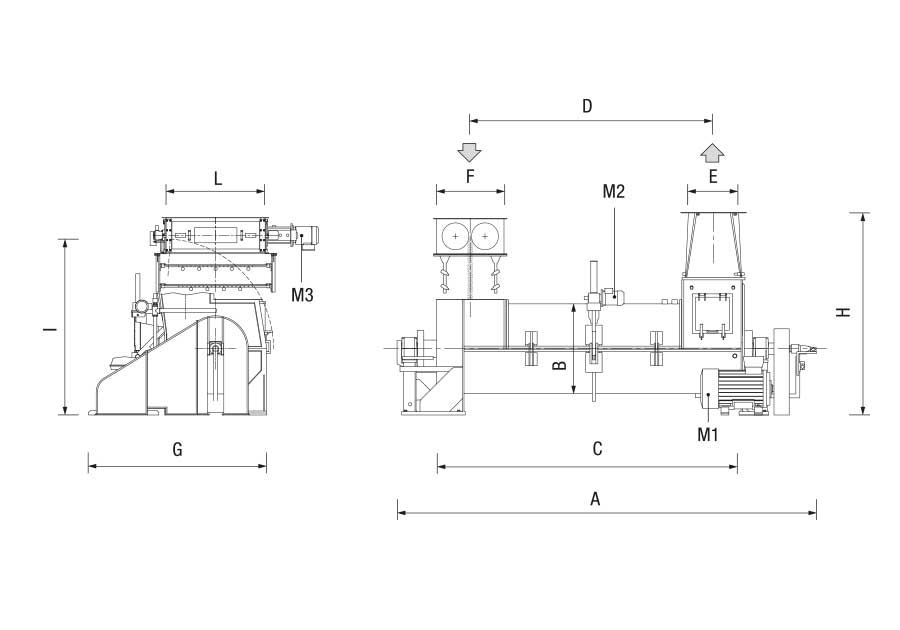

Technical features

MODEL
OVERALL DIMENSIONS mm
A
B
C
D
E
F
G
H
I
L
FB105
6405
1050
4525
3618
683
880
2500
2900
2300
1000
FB130
6395
1300
4645
3523
873
880
2905
3068
2700
1500
FB155
7420
1550
5670
3500
1160
880
3250
3068
2700
1500

MODEL
MAX THROUGHTPUT kg/h
CHAMBER
Volume
l
INSTALLED POWER kW/poles
Weight
kg
M1
M2
2 x M3
FB105
9000
3915
90/4
4/4
7.5/4
5200
FB130
13000
6160
132/4
4/4
7.5/4
9000
FB155
24000
1015
160/4
4/4
7.5/4
11200
