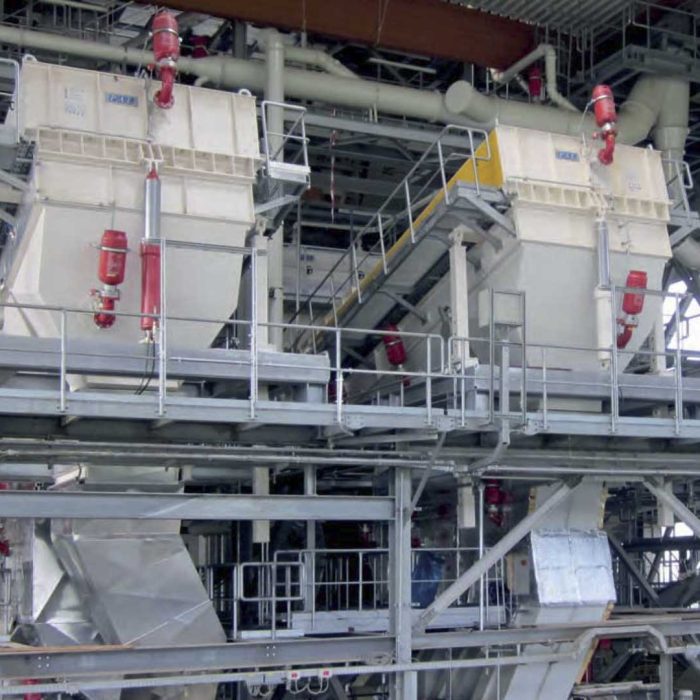

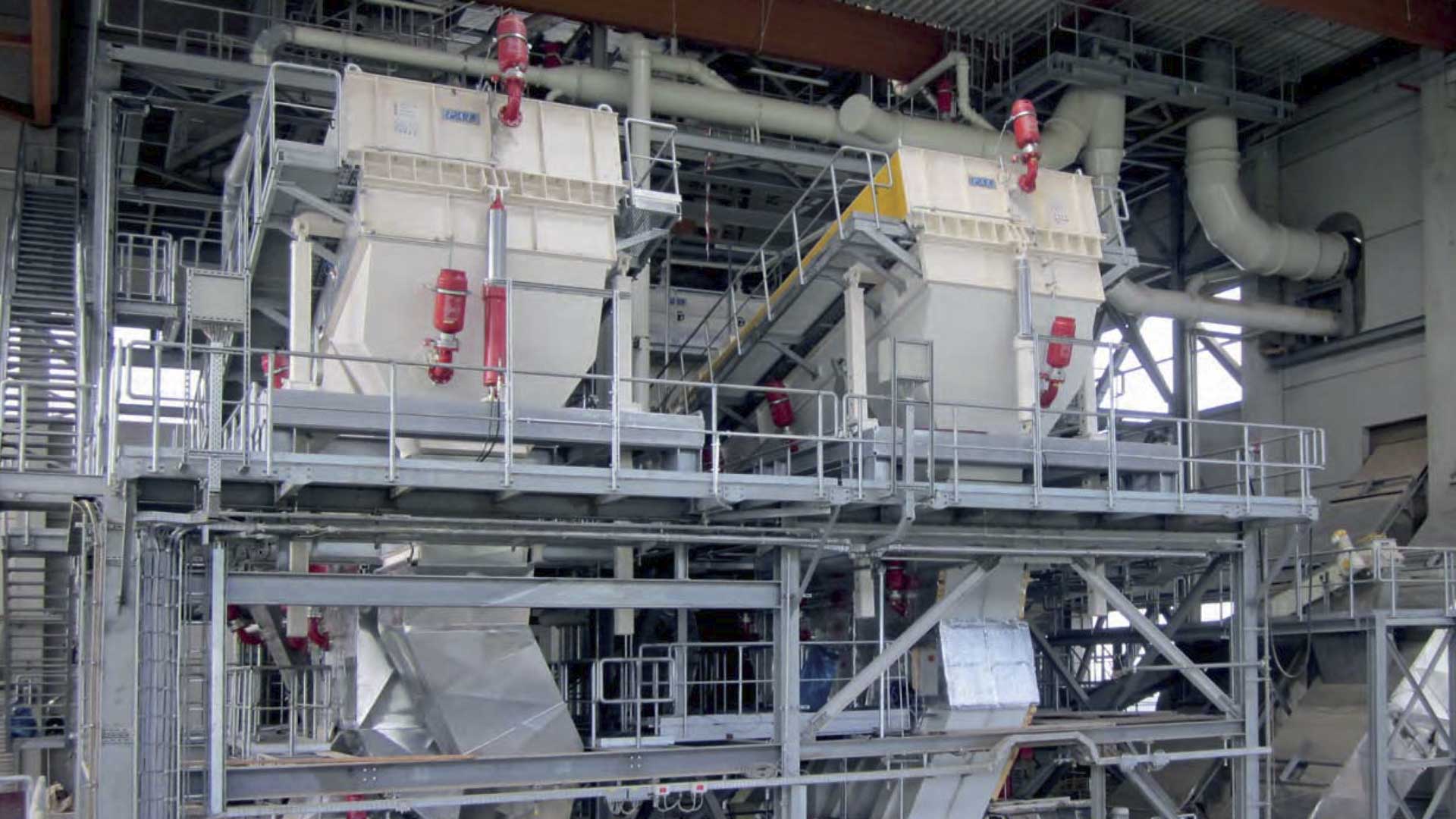

QUADRADYN

The machine is designed to select incoming bulk material by its size (grading). The rollers, made with specially designed profiles, rotate synchronously and generate the vibrations necessary for the transport and separation of the material.

PROUDLY MADE BY

Best in class for

WOOD BASED PANELS

OSB/LSB/FOSB

WOOD RECYCLING AND WASTE TREATMENT

CUSTOMIZED SOLUTIONS FOR RECYCLING

Technical features

Fluidizing rolls for better crosswise spreading of flakes at the screen infeed
Roll screen with specialized roll profiles for requested cuts
Separation till 4 fractions
Suitable for green and dry strand screening
AF – Fire extinguishing system
AE – Explosion vents
Two side bearings and transmissions
Highly flexible machine with quick and easy adjustments to match changes in the raw material: adjustable diverting gates – adjustable shaft speed – adjustable working angle – adjustable gap setting – pre-settable disk spacing
No strand breakage or generation of fines in the screening process

Vantaggi

No strand breakage or generation of fines in the screening process
Very efficient screening out of fines resulting in: increase in dryer capacity (green screening) – more uniform moisture content to the dryer (green screening) – reduction in dryer emissions (green screening) – reduction in drying costs (green screening) – lower fire risk in dryer (green screening) – reduced blender cleaning requirements – lower resin usage and higher board properties
Very efficient classification of strand size
Dedicated dryers for core and surface material (green screening)
Smaller footprint than drum screen for easy replacement in existing plants
Low maintenance, no plugging

Gallery

Technical features

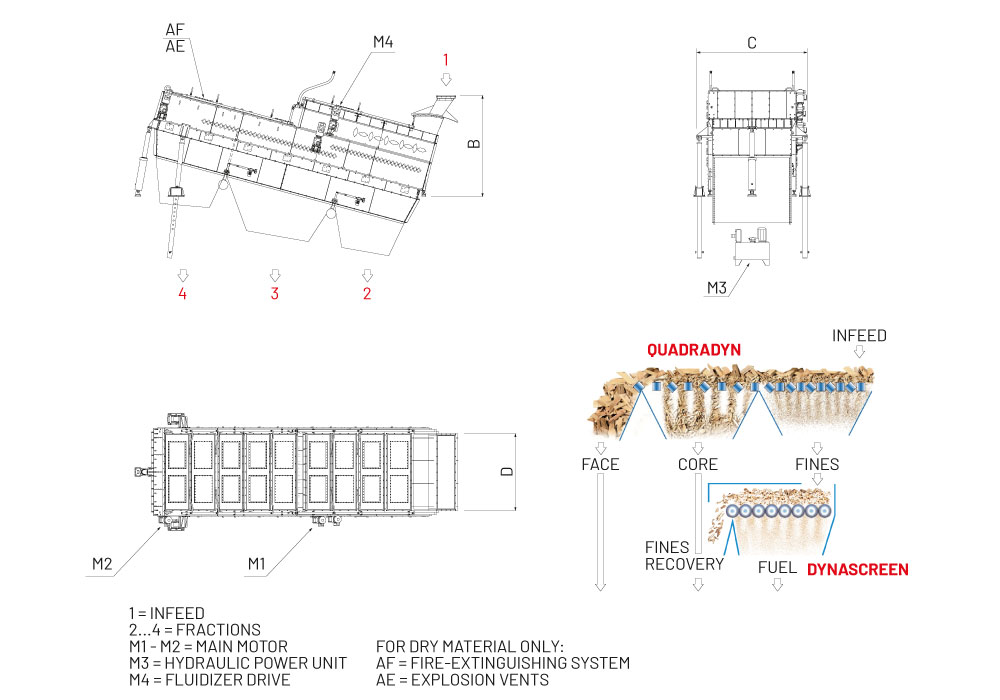

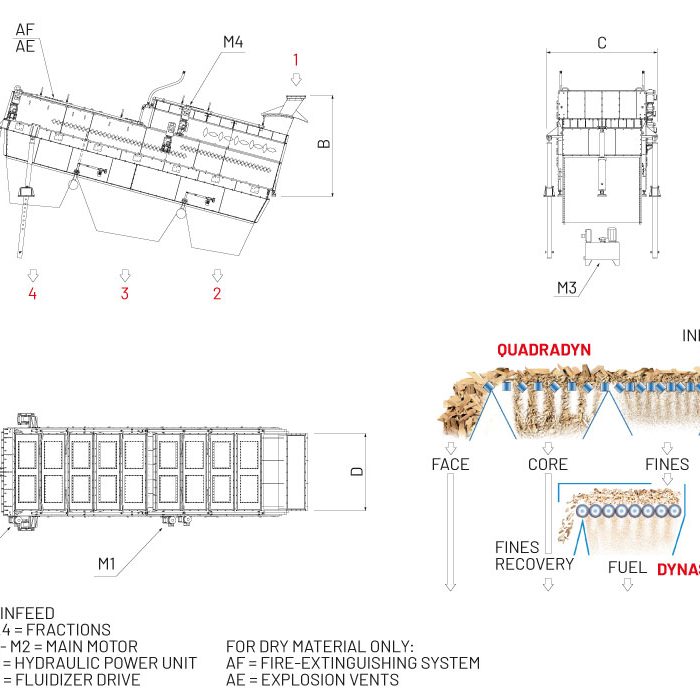

MODEL	OVERALL DIMENSIONS mm				CAPACITY m3/h	INSTALLED POWER kW				WEIGHT kg
MODEL	A	B	C	D	CAPACITY m3/h	M1	M2	M3	M4*	WEIGHT kg
Q-DYN.1-5000-2200	5000	2530	3520	2200	To size according to type of material and number of fractions to classify	According to number of shafts	According to number of shafts	5,5	-	According to number of shafts
Q-DYN.1-6000-2200	6000	2530	3520	2200				5,5	-
Q-DYN.1-7000-2200	7000	2530	3520	2200				5,5	-
Q-DYN.1-8000-2200	8000	2530	3520	2200				5,5	-
Q-DYN.1-9000-2200	9000	2530	3520	2200				5,5	-

Q-DYN.1-7000-2700	7000	4780	4020	2700				5,5	7,5
Q-DYN.1-8000-2700	8000	4780	4020	2700				5,5	7,5
Q-DYN.1-9000-2700	9000	4780	4020	2700				5,5	7,5
Q-DYN.1-10000-2700	10000	4780	4020	2700				5,5	7,5
Q-DYN.1-11000-2700	11000	4780	4020	2700				5,5	7,5
Q-DYN.1-12000-2700	12000	4780	4020	2700				5,5	7,5
*Option
