PB HI-JET (RH)

DOWNLOAD TECHNICAL SHEET

PROUDLY MADE BY

Best in class for

WOOD BASED PANELS

PB/SPB

Technical features

  • In traditional systems the nozzles are mounted at 2/3 from blender outfeed. With this new high pressure injection system located inside the infeed chute, the whole length of the blender is exploited for the blending process, greatly increasing retention time
  • Resin consumption reduced by approximately 15% due to the improved resin distribution at high pressure and the longer retention time.

Gallery

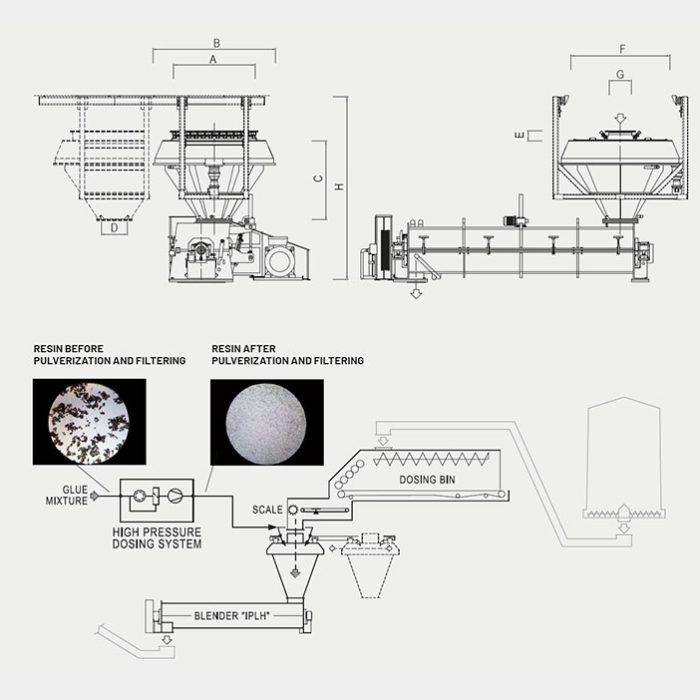

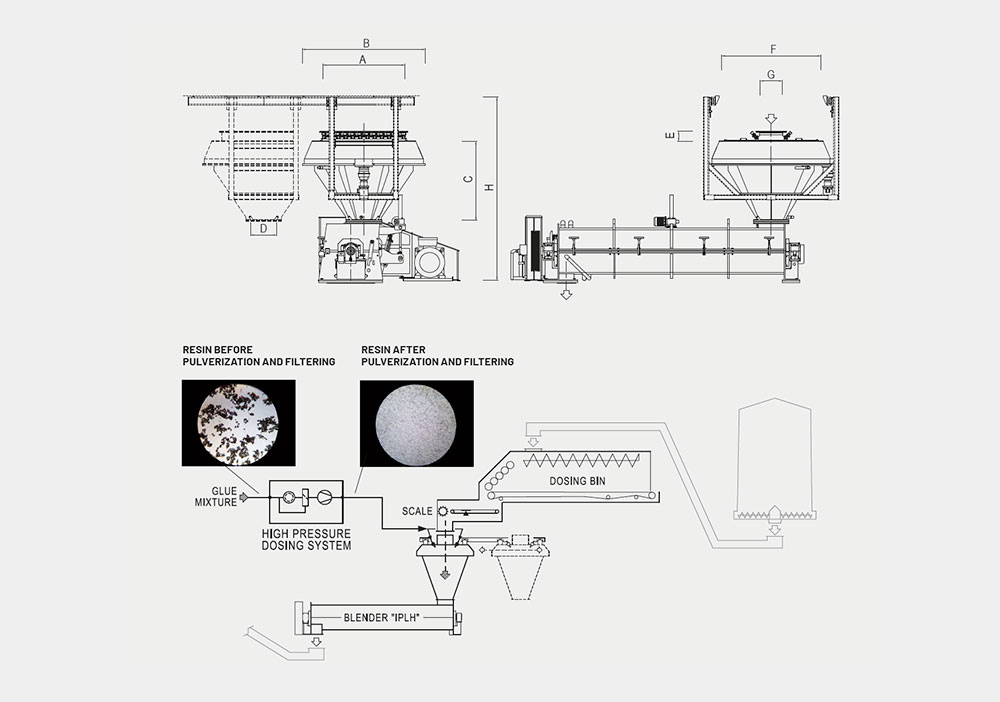

DisegnoTecnico-PB-HI-JET-RH

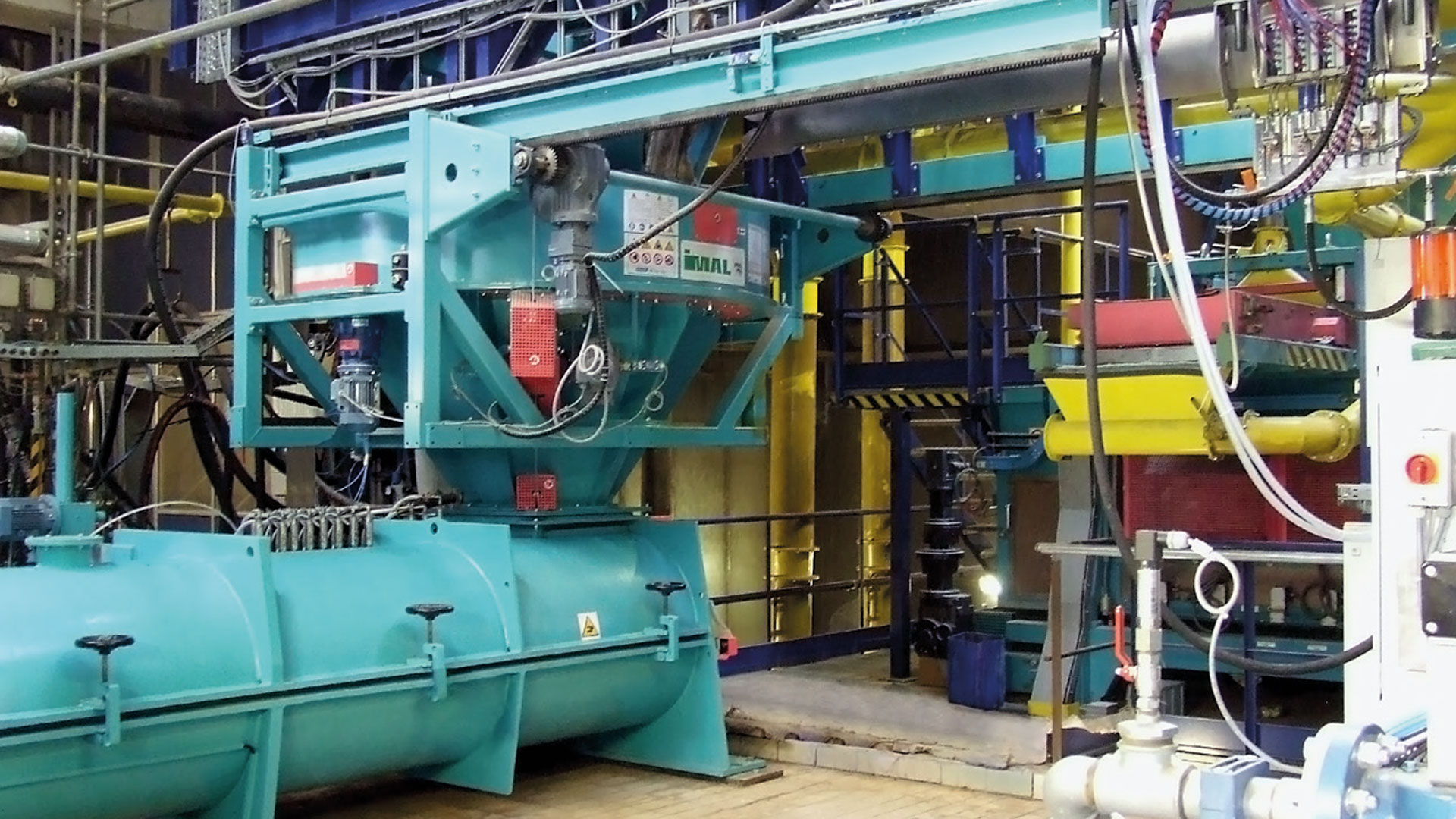

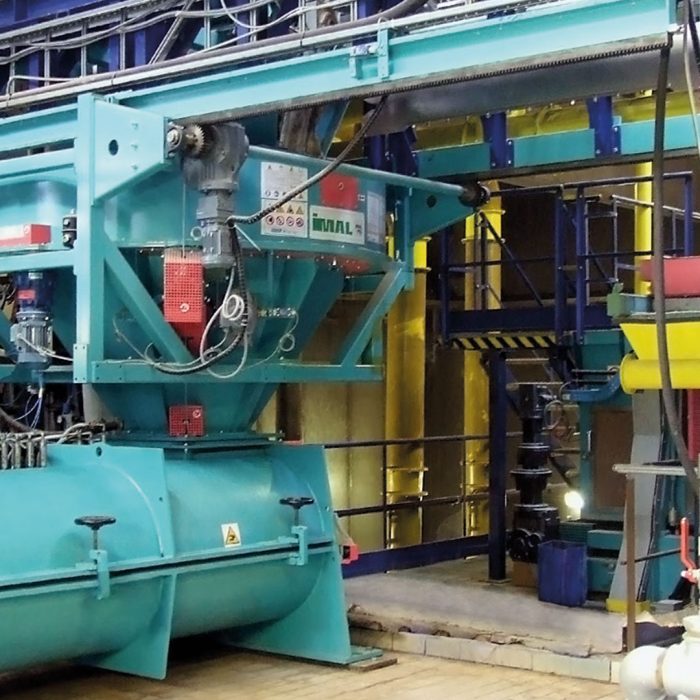

IMALPAL-PB-HI-JET-RH_hero

Technical features

MODEL
OVERALL DIMENSIONS mm
A
B
C
D
E
F
G
minimum height H required for IPV
minimum height H required for IPL
RH 1-1400.450-1250
1120
1980
1250
450
190
1400
570
3800
3500
RH 1-1930.520-1580
1640
2450
1580
520
190
1930
440
3800
3500
RH 1-1930.620-1490
1640
2450
1490
620
190
1930
440
-
3800
RH 1-1930.730-1370
1640
2450
1370
730
190
1930
440
-
4000

MODEL
FOR APPLICATION WITH THE FOLLOWING BLENDERS
RH 1-1400.450-1250
IPV 8 - 20 / IPL 4 - 12
RH 1-1930.520-1580
IPV 30 - 40 / IPL 15 - 22
RH 1-1930.620-1490
IPL 30 - 40
RH 1-1930.730-1370
IPL 50 - 60
Please consult the relative IPV and IPL blender technical sheets for details.
