NTL - NASTRO TRASPORTATORE

BELT CONVEYOR – NTL

The machine is ideal for low speeds and short lengths, mainly used before the chipper or for direct loading of heavy logs.

PROUDLY MADE BY

WOOD BASED PANELS

PB/SPB, MDF/HDF

PRESSED WOOD PACKAGING

PALLET BLOCKS, PRESSED PALLETS

PELLET & ENERGY

WOOD PELLETS AND BLACK PELLETS, GREEN FUELS AND BIOMASS

Able to feed wood material at constant speed
Design according to wood type with reinforced impact zone, special sliding of the belt
Available in conjunction with metal detector
Ideal for wood logs, shavings, veneer waste
Special design for veneer

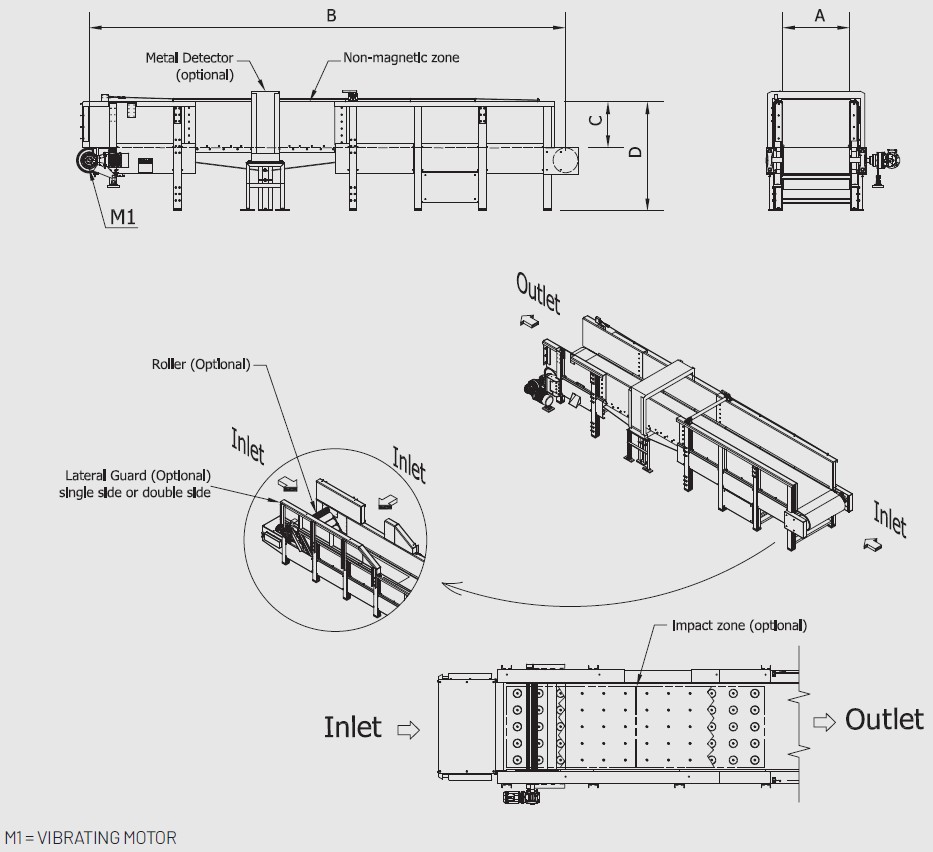

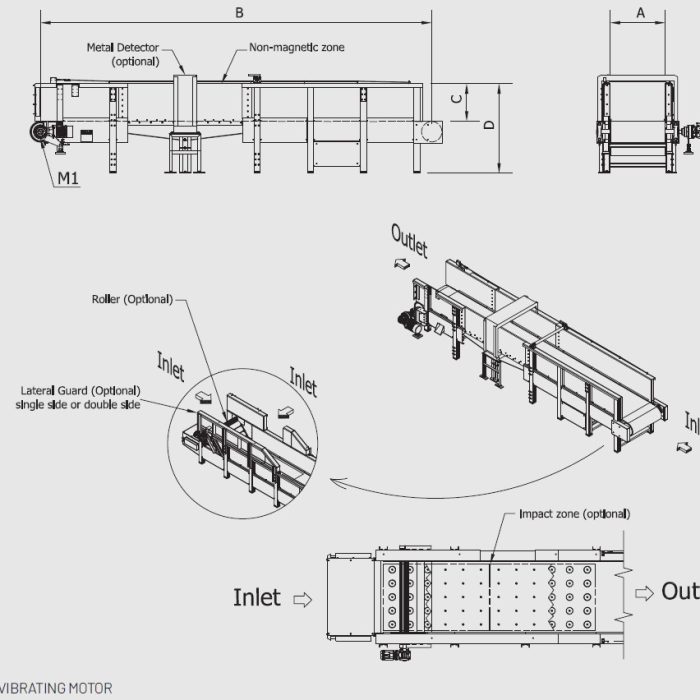

MODEL	OVERALL DIMENSIONS mm***
MODEL	A	B	C	D	Metal Detector
NTL**	600 ÷ 1650	500 ÷ 1500	300 ÷ 1000	1700 ÷ 2600	optional

MODEL	CAPACITY m3/h	POWER kW	WEIGHT kg
MODEL	CAPACITY m3/h	M1	WEIGHT kg
NTL**	***	2.5 ÷ 22	4000 ÷ 12500
*According to customer needs According to dimensions
