MOBILE CHIPPERS – MCU

The machine is designed to product wood chips in different location.
DOWNLOAD TECHNICAL SHEET

PROUDLY MADE BY

Best in class for

WOOD BASED PANELS

PB/SPB, MDF/HDF
PELLET & ENERGY
GREEN FUELS AND BIOMASS

Technical features

  • Mobile system for wood chips production in different location, using a lorry for chipping machine transport
  • Machine equipped with diesel engine from hp 510 up to hp 900 and relevant capacity up to 350 m3/h of chips
  • Rotor equipped with three different solutions according to final production: – WPB / single knife – energy biomass / multiknives–pollutant wood / hammer

Vantaggi

  • Low specific diesel consumption by electronic power control
  • Foldable chips evacuation belt revolving and movable type
  • Possibility to produce wood chips on same site, by storage 300 m3 volume, without relocating the machine

Gallery

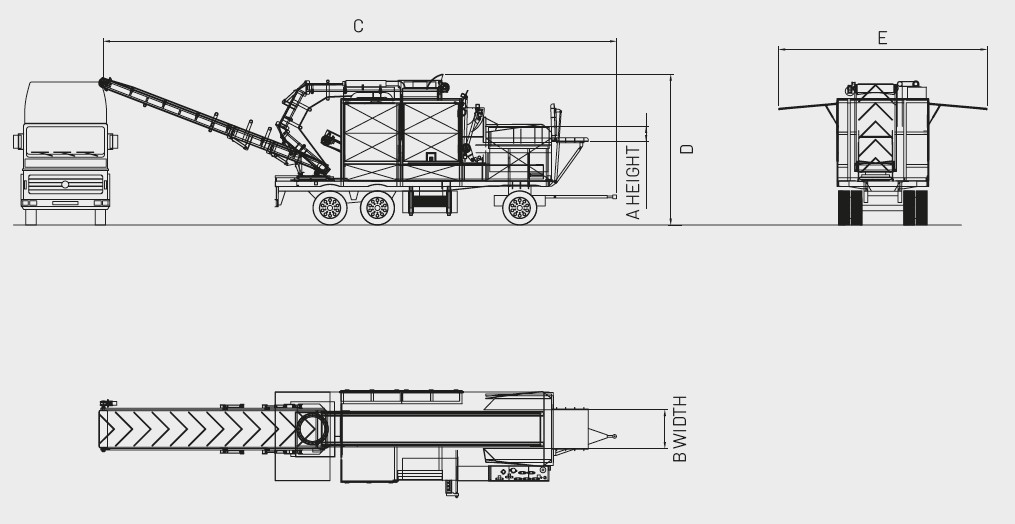

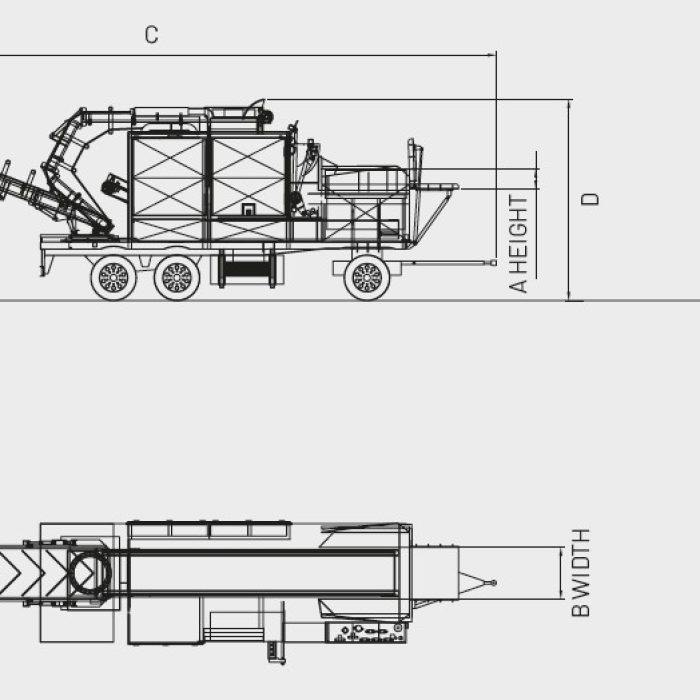

MCU_Disegno

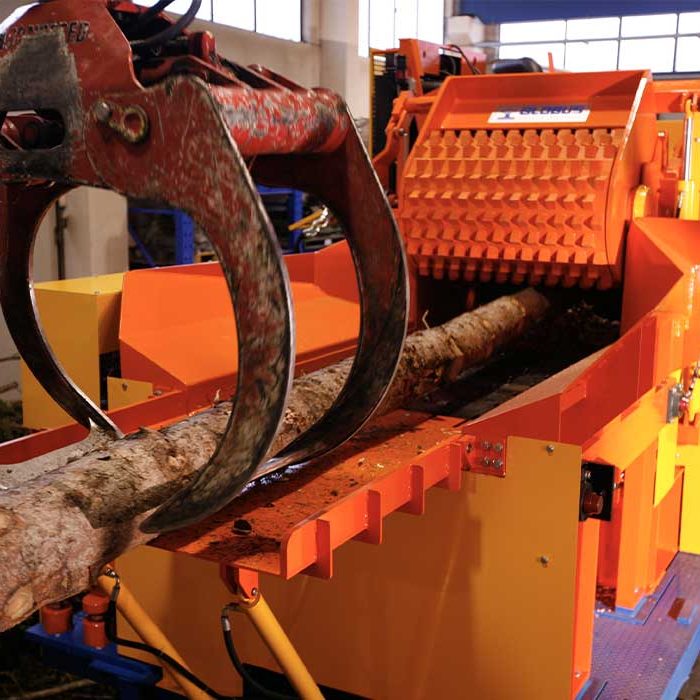

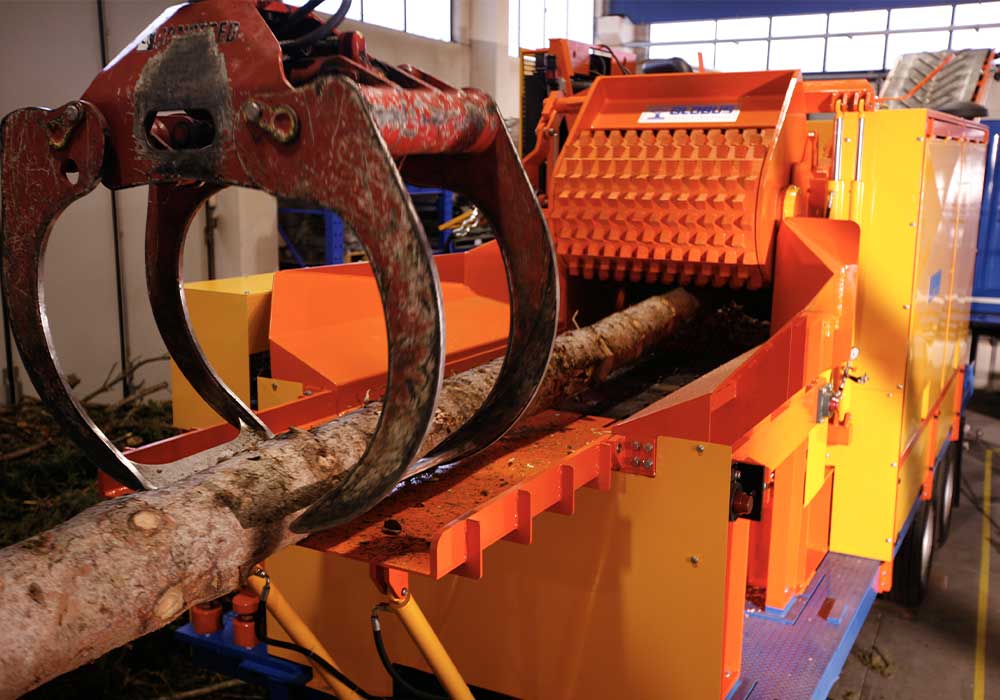

MCU_Gallery

Technical features

MODEL
OVERALL DIMENSIONS mm***
A
B
C
D
E
MCU
400 - 500 mm
1050 mm
14000 mm
4130 mm
5700 mm

MODEL
CHIPPING WIDTH
mm
CHIPPING HEIGHT
mm
DRUM
DIAMETER
mm
KNIVES
pcs
FEED TOOTHED
ROLLERS
pcs
CAPACITY
m3/h chips
ENGINE
Turbo Diesel HP
MCU 40.105-M
1050
400
1000
3
1+1
200
510
MCU 50.105-M
1050
500
1300
3
1+1
350
900
