LOGS DEBARKER SCREW

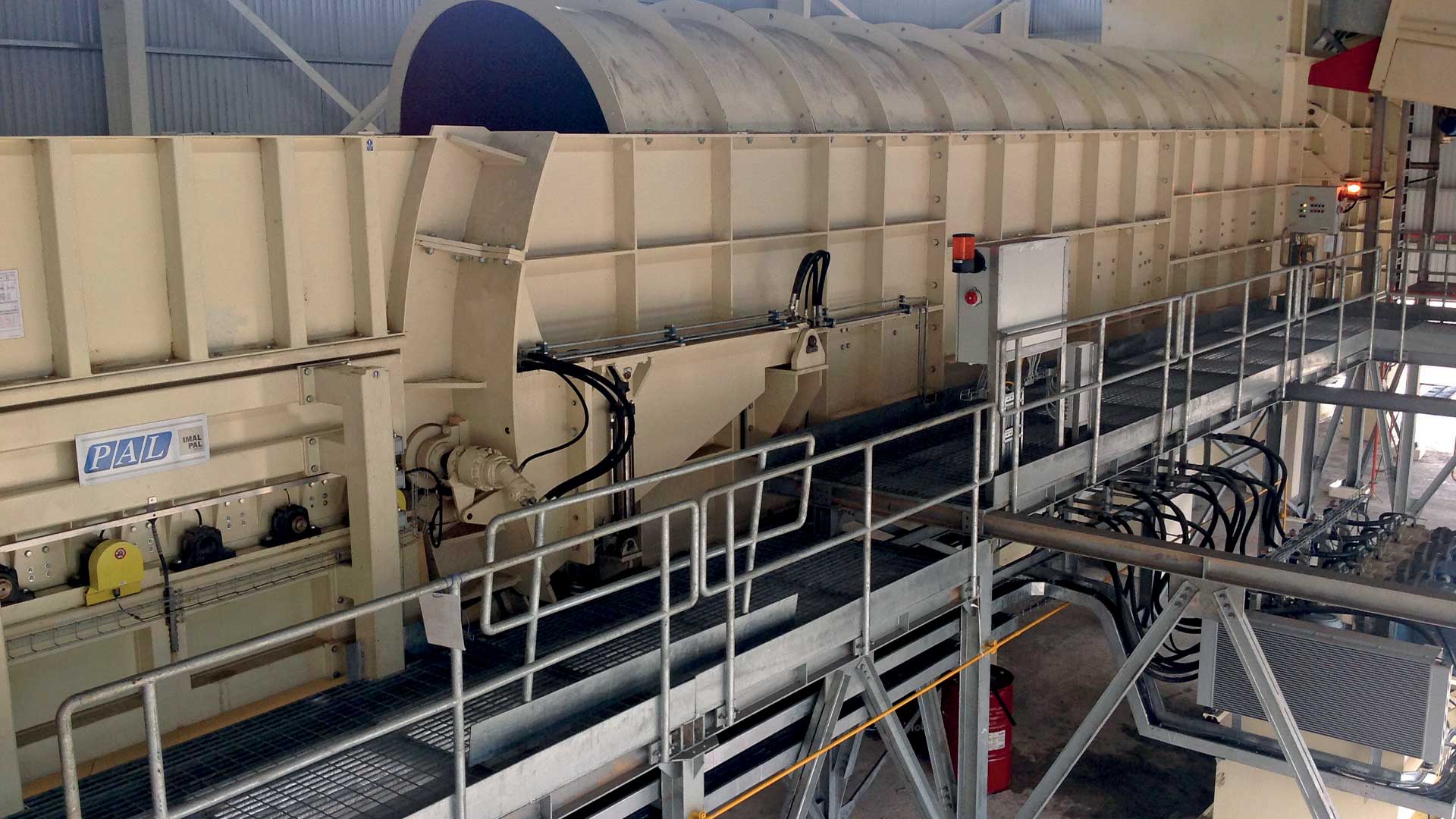

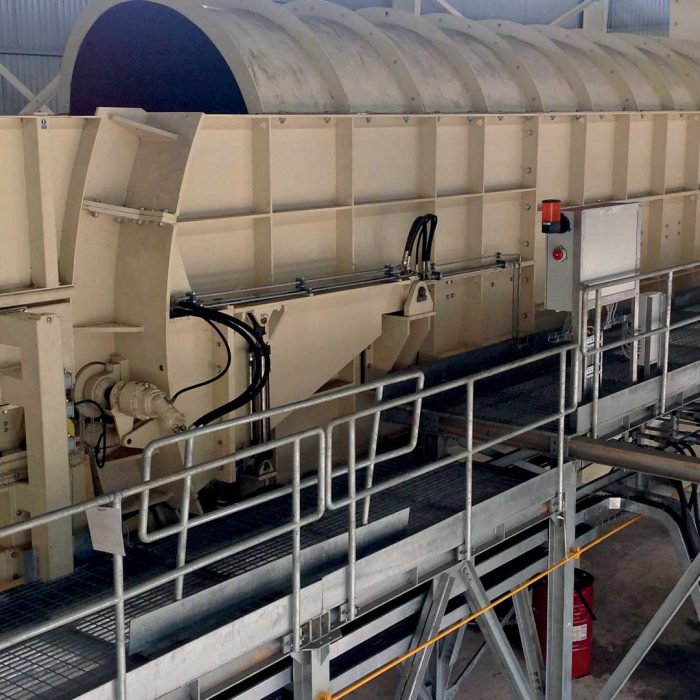

The machine is designed to remove the bark from trunks by the rotation of the rollers giving them at the same time a push towards the output where a toothed roller discharges the debarked trunk onto the next machine.

PROUDLY MADE BY

Best in class for

WOOD BASED PANELS

PB/SPB, MDF/HDF, OSB/LSB/FOSB

PELLET & ENERGY

WOOD PELLETS AND BLACK PELLETS

Technical features

Debarking equipment for log debarking especially in cold conditions, no need for a separate de-icing conveyor before debarking
Debarking technology is based on the rotating shafts located at the lower part of equipment, above which logs are debarked while being in contact with debarking segments mounted on the shafts

Vantaggi

Totally live bottom gives even retention time and debarking result
Debarking efficiency can be easily adjusted by changing filling degree and/or rotating speed
Geometry has been designed to maximize debarking effect, minimize wood losses and to make debarking results as even as possible
Log-to-log contact

Gallery

Technical features

MODEL	OVERALL DIMENSIONS mm
MODEL	A	B	C	D
RDK.2.800/10	13920	10920	4510	3260
RDK.4.800/20	23620	20620	5250	3260
RDK.6.800/30	33820	30820	5990	3260
RDK.6.1200/30	33820	30820	5990	4160
RDK.8.1200/40	41512	37737	6600	4160
