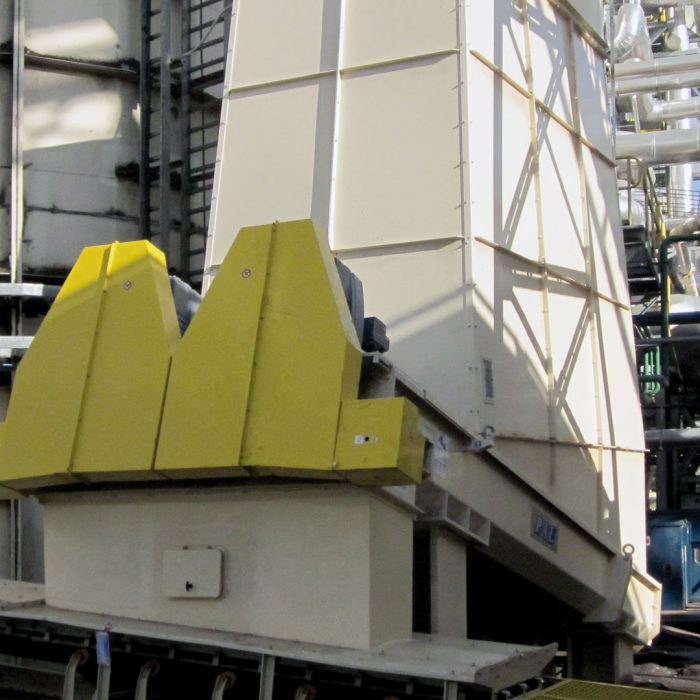

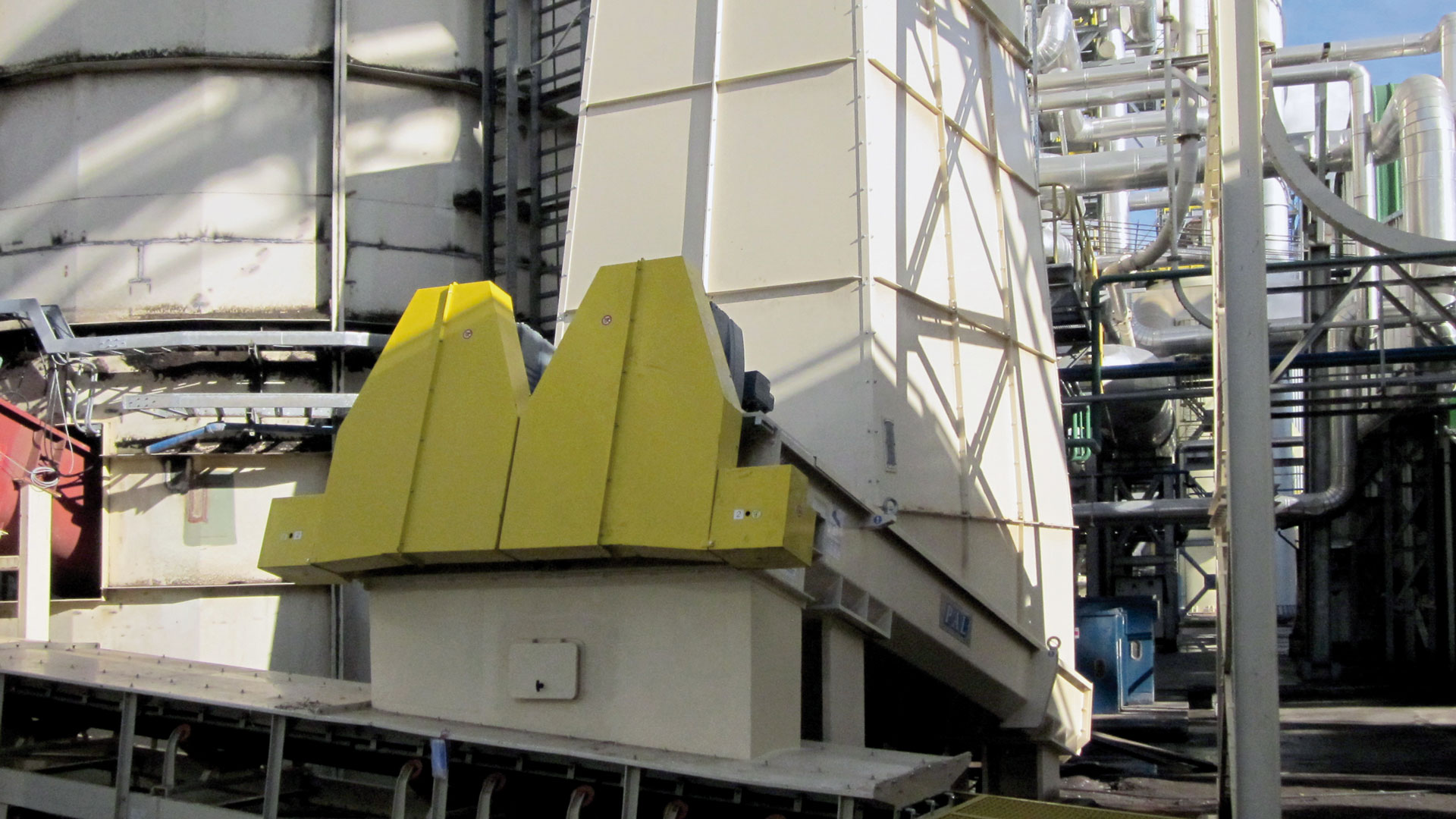

Versatile storage-dosing live bottom pits: DB.6-9-12 with open-top for feeding with front loader – DBC.4 closed execution for metering of chips – DBD.4 special application for metering of Driers – DB1.1 & 2.2 for simultaneous metering of two downstream
Destorage system based on live bed made up of modules of two or three dosing screws (parallel or opposed construction)
Separate drive for each series of dosing screws • Level controls.

Storage-dosing of fractioned materials, wet or dry, such as chips, sawdust, shavings, particles, etc.
Accurate dosing of several downstream machines, e.g.: roll screens – cleaners or sifters for chips, sawdust and shavings – knife ring flakers – hammermills – driers – dry screens – dry mills
No bridge formation
No material demixing
Wide range of extraction capacity: running the dosing screw modules separately, alternatively or all together – driving each motor with a frequency converter
High dosing accuracy from progressive pitch screws
High efficiency and reliability
Low maintenance

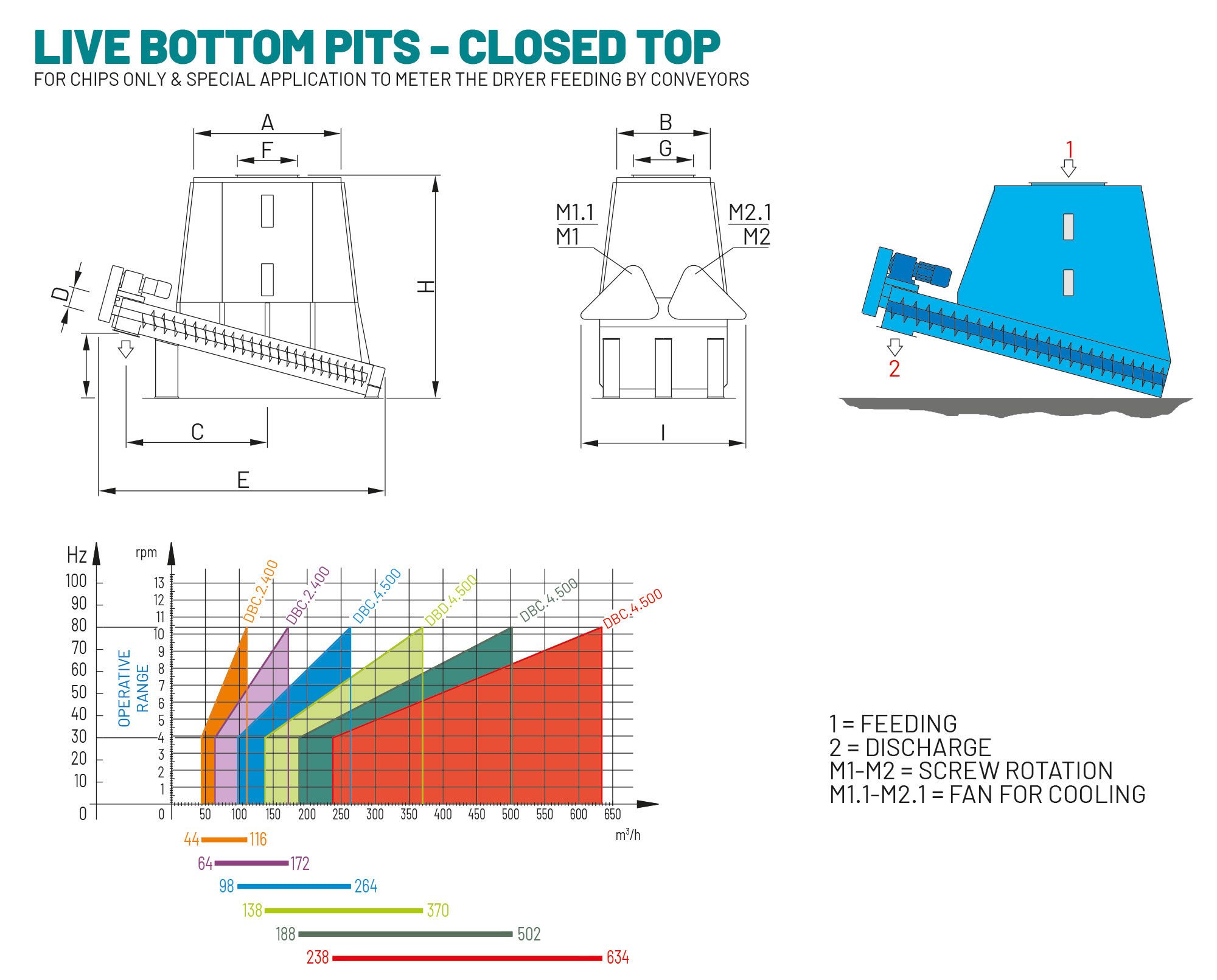

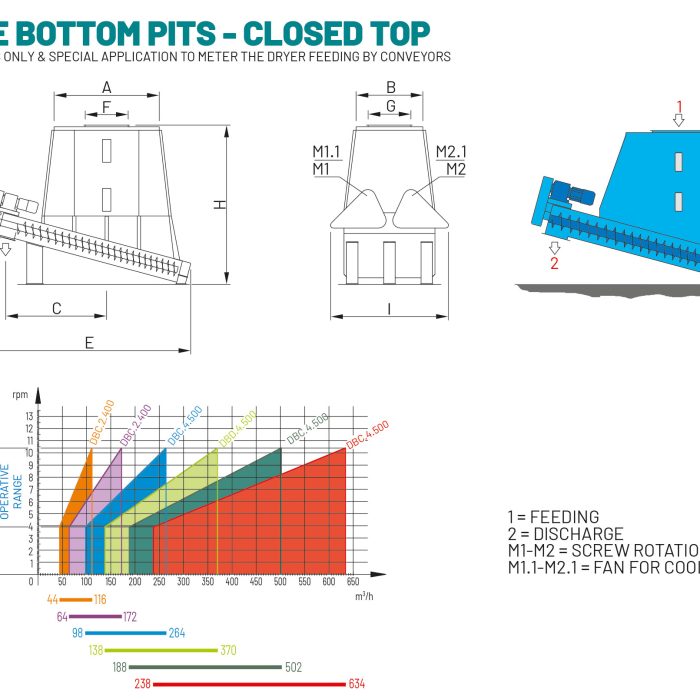

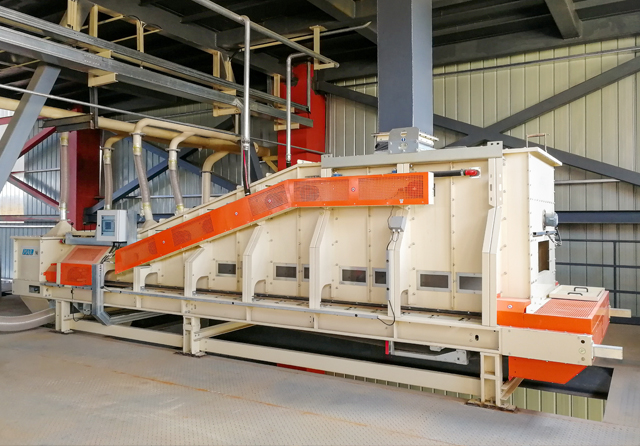

For chips only & special application to meter the dryer feeding by conveyors

MODEL	BIN CONTENT m3	THROUGHPUT m3/h	OVERALL DIMENSIONS mm										INSTALLED POWER kW**				WEIGHT APPROX. kg
MODEL	BIN CONTENT m3	THROUGHPUT m3/h	A	B	C	D	E	F	G	H	I	L	M1	M1.1	M2	M2.1	WEIGHT APPROX. kg
DBC.2.400	5	SEE DIAGRAM	2310	975	2420	400	4470	2230	800	3300	995	1005	9,2	0,18	-	-	4300
DBC.4.500	30	SEE DIAGRAM	3845	2506	3340	500	7180	1500	1500	5570	4140	1615	11	0,18	11	0,18	19000
DBD.4.500*	30	SEE DIAGRAM	3600	1600	3685	500	8260	1200	1400	5390	2400	1405	45	0,27	45	0,27	13000
DBC.4.500	50	SEE DIAGRAM	3845	2506	3340	500	7180	1500	1500	5570	4140	1615	18,5	0,18	18,5	0,18	19000
DBC.4.500	60	SEE DIAGRAM	3845	2506	3340	500	7180	1500	1500	6570	4140	1615	22	0,18	22	0,18	20000
For dryer application *According to type of material

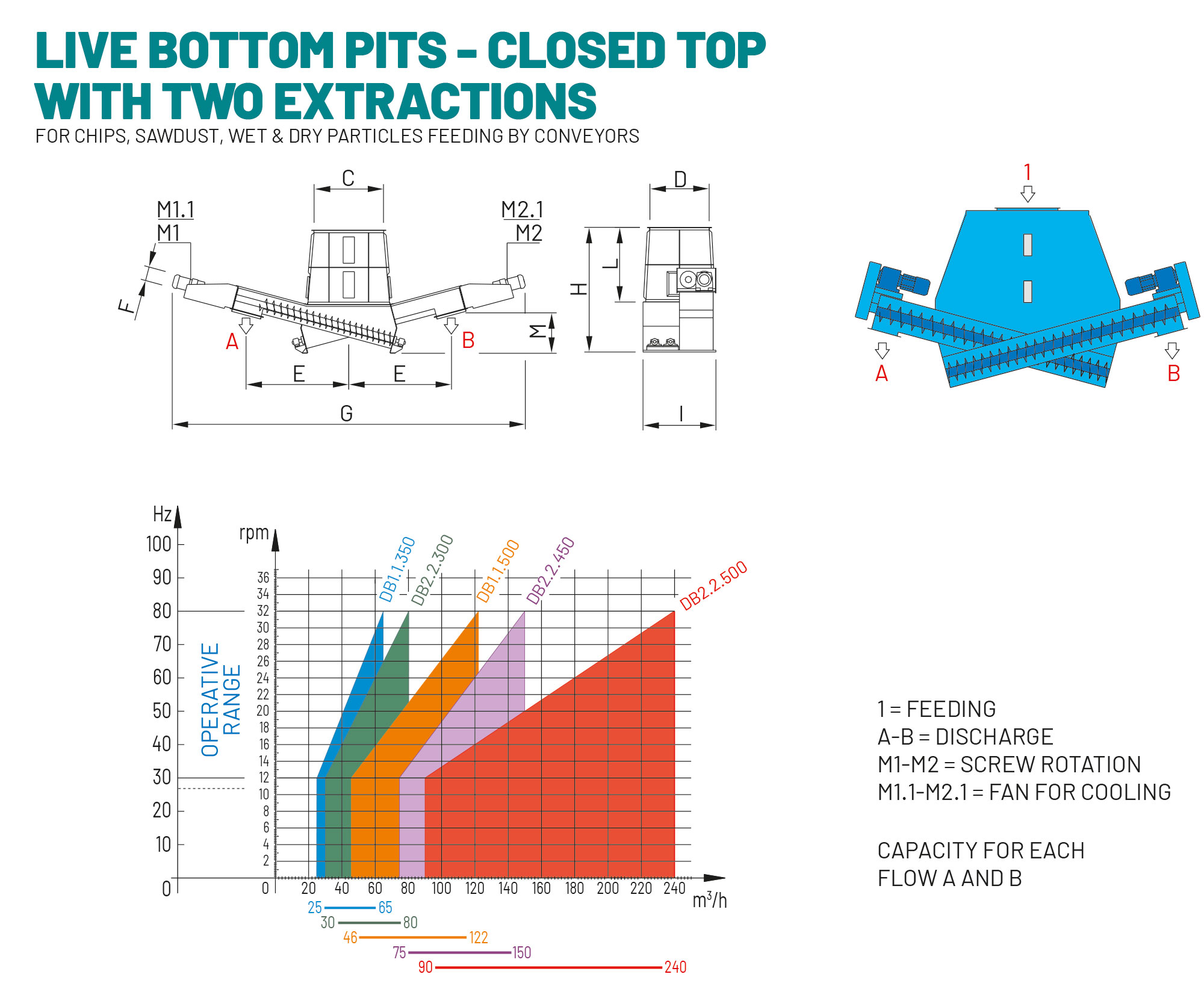

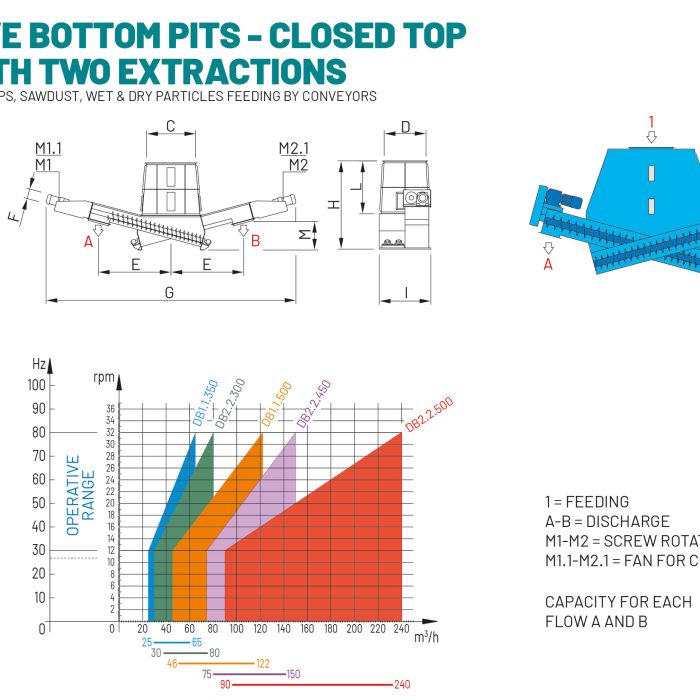

For chips, sawdust, wet & dry particles feeding by conveyors

MODEL	BIN Content m3	THROUGHPUT m3/h		OVERALL DIMENSIONS mm
MODEL	BIN Content m3	A	B	C	D	E	F	G	H	I	L	M
DB1.1.350	2	25 - 65	25 - 65	1400	700	2075	350	5296	2411	930	1500	632
DB1.1.500	3	46 - 122	46 - 122	2000	900	3000	500	7392	2500	1370	1000	1150
DB2.2.300	3	30 - 80	30 - 80	1400	1200	2075	315	7335	2480	1472	1500	820
DB2 2.450	8	75 - 150	75 - 150	1600	1600	2606	450	6480	3280	2080	2000	1005
DB2.2.500	8	90 - 240	90 - 240	2000	1500	3296	500	7965	3430	2326	2000	1225

MODEL	INSTALLED POWER kW				WEIGHT APPROX. kg
MODEL	M1	M1.1	M2	M2.1	WEIGHT APPROX. kg
DB1.1.350	4,0	0,08	4,0	0,08	2500
DB1.1.500	11,0	0,18	11,0	0,18	4000
DB1.1.500	9,2	0,18	9,2	0,18	4000
DB2.2.300	5,5	0,08	5,5	0,08	4000
DB2.2.450	11	0,18	11	0,18	6500
DB2.2.500	9,2	0,18	9,2	0,18	8000
DB2.2.500	11,0	0,18	11,0	0,18	8000
Solutions for different throughputs, layout arrangements and type of material are available upon request.

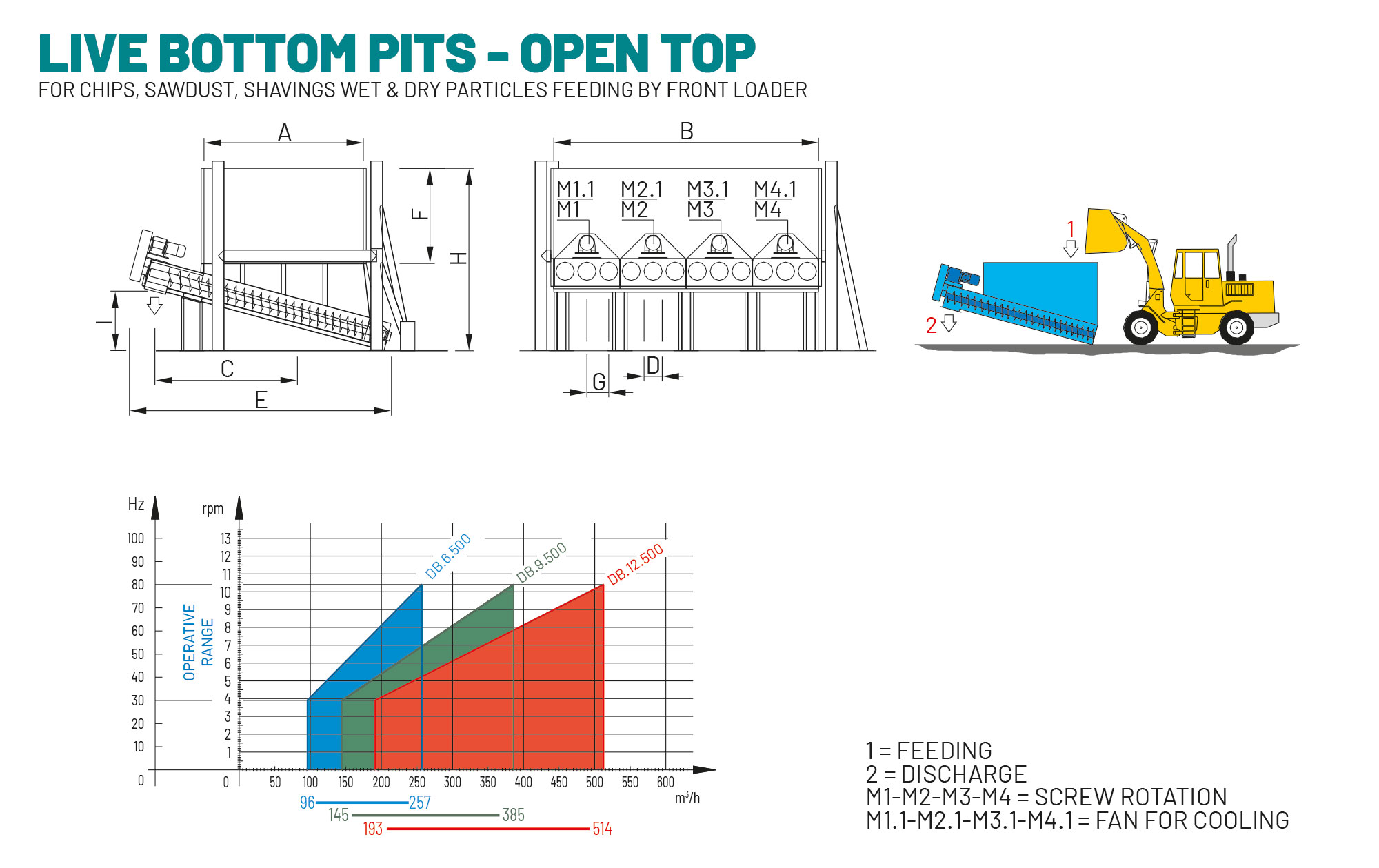

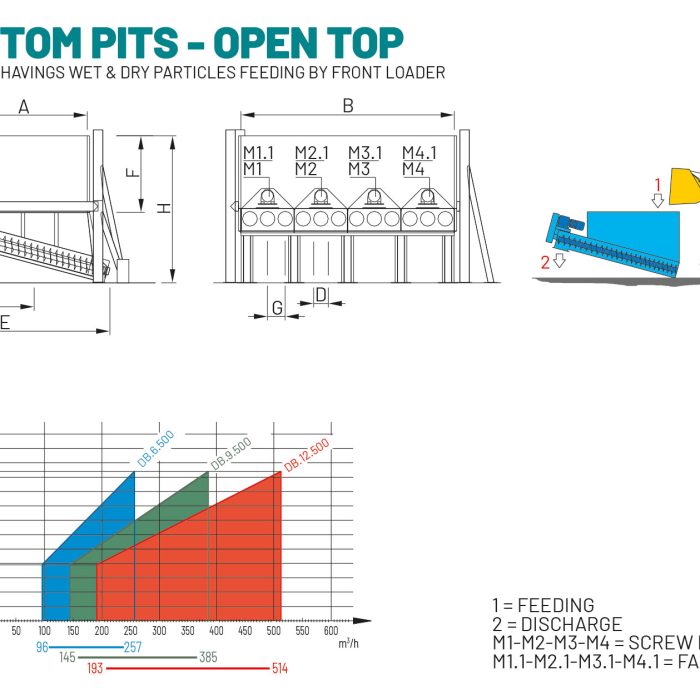

For chips, sawdust, shavings wet & dry particles feeding by front loader
