LBC100

The LBC100 has been designed to detect unglued, delaminated, blown or low density areas, bubbles, cracks and other flaws inside any type of board (PB, MDF, OSB and Plywood).

PROUDLY MADE BY

Best in class for

WOOD BASED PANELS

PB/SPB, MDF/HDF, OSB/LSB/FOSB, PLYWOOD

Technical features

Sturdy mechanical assembly of the structure and sensors
Easy to use

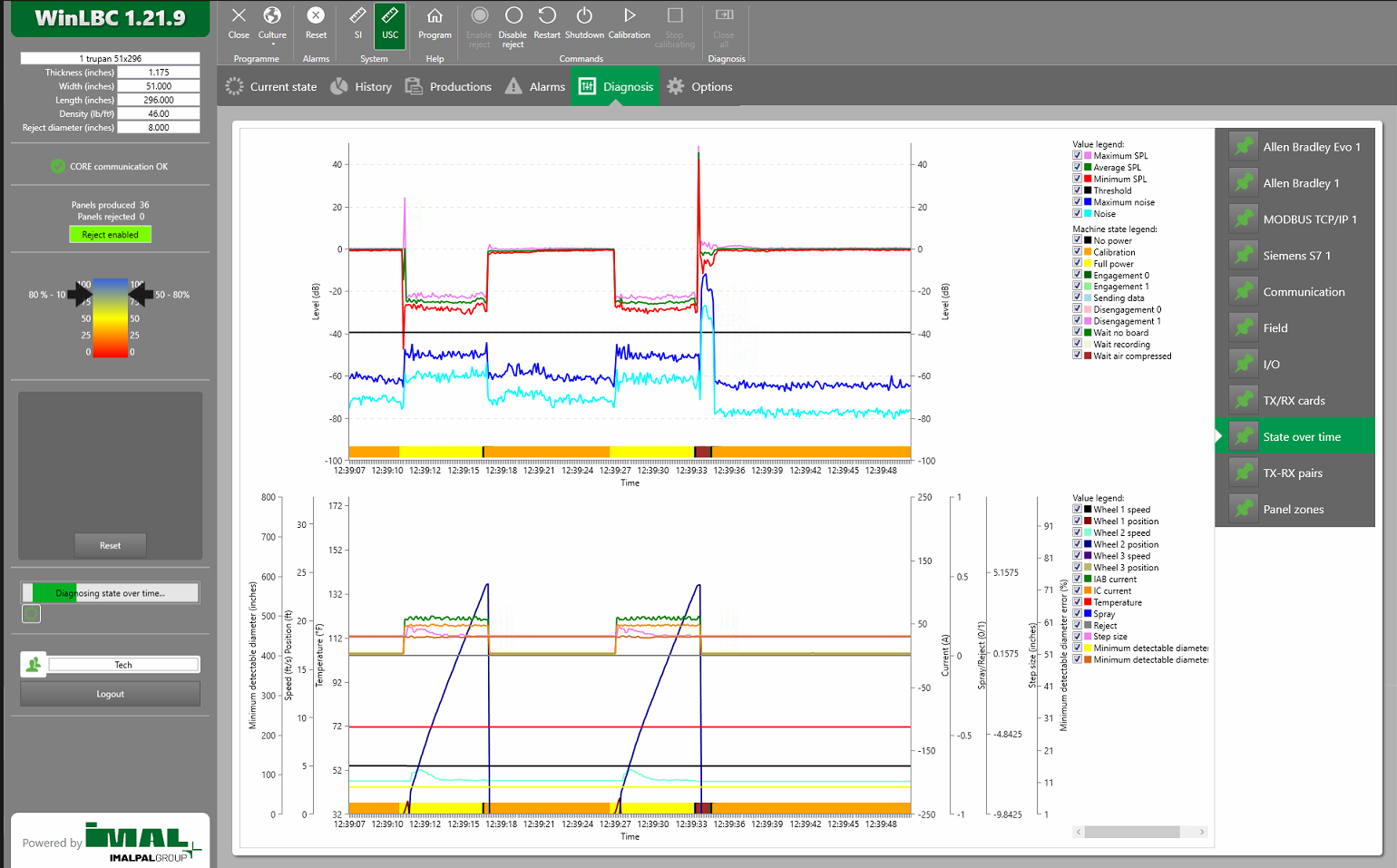

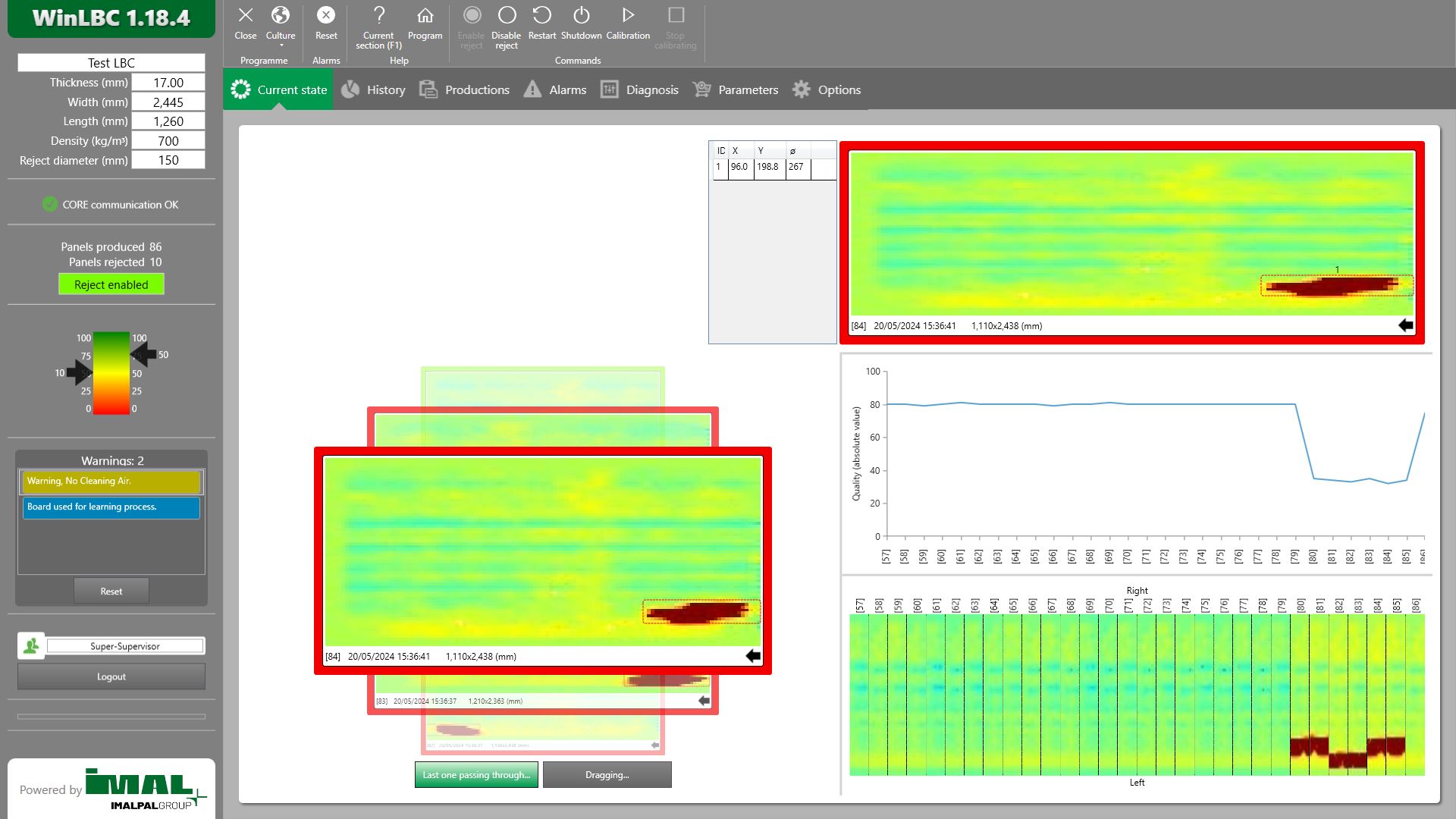

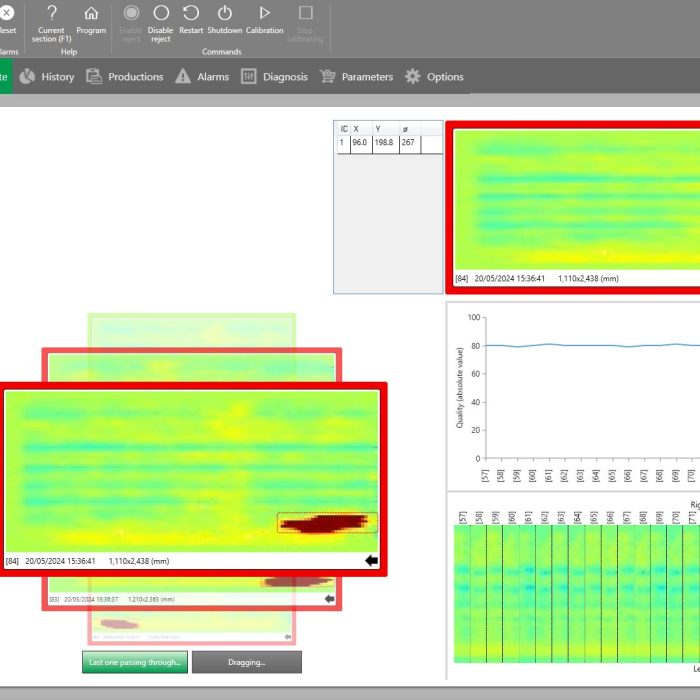

Clear and comprehensive software
Operator is warned of an approaching blistered board, with the consequent optimization of process parameters, reduction of board defects and rejects
Easy installation in on line processes and/or after saws
Lower part can slide out for maintenance operations.

Gallery

Watch the video

Technical features

TECHNICAL DATA
NUMBER OF CHANNELS	18 min - 54 max
DISTANCE BETWEEN EACH CHANNEL	75 mm (fixed)
Max thickness	50 mm
Max board speed	210 m/min
Max board temperature	180 °C
READ OUT AVAILABLE	1350 to 4050 mm
