KNIFE RING WASHER – WMG

The machine is a high-efficiency washing machine, specifically designed for cleaning knife rings, combining power and precision in a fully automated process.
DOWNLOAD TECHNICAL SHEET

PROUDLY MADE BY

Best in class for

WOOD BASED PANELS

PB/SPB, OSB/LSB/FOSB

Technical features

  • Optimized nozzle set positioned in different area to clean with high efficiency the nuts, screw and holder
  • Possibility to setup different cycle settings according to needs, from 5 min up to 120 min
  • Different side spraying angle
  • Complete machine prewired and pre-connected
  • Control panel complete with a PLC system allowing the choice of different washing cycle

Gallery

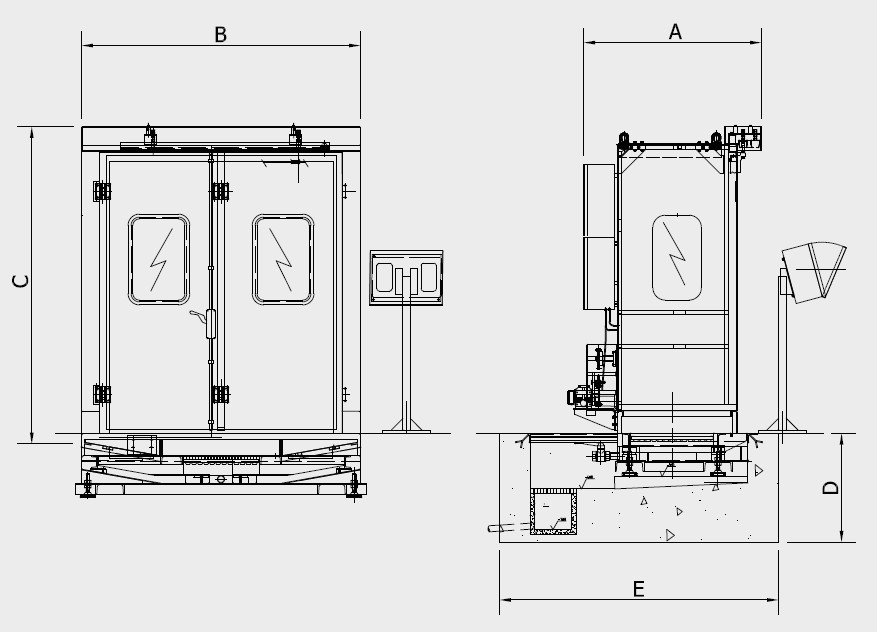

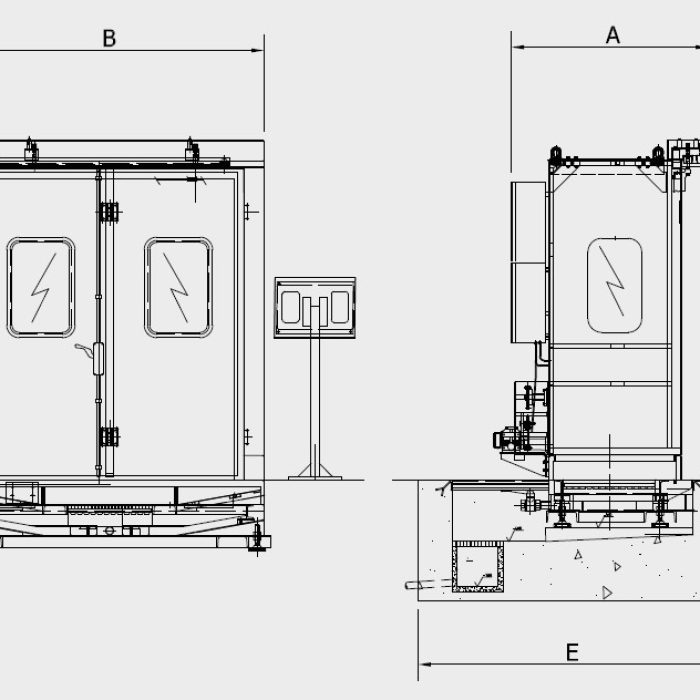

WMG_Disegno

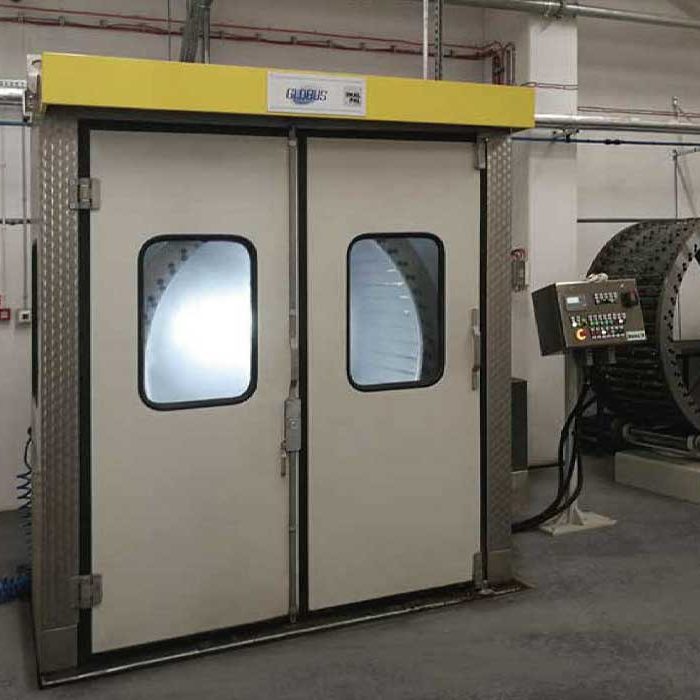

WMG_Gallery

Technical features

TECHNICAL DATA
CYCLE TIME
30 Min / 1 Ring
WATER REQUIREMENTS
2400 l/h
HIGH PRESSURE
160 bar
TOTAL INSTALLED POWER
18 kW

MODEL
OVERALL DIMENSIONS mm
A
B
C
D
E
WMG 490
1250
2300
2700
900
2300
WMG 690
1450
2300
2700
900
2300
WMG - Customized
***
***
***
***
***
***According to customer needs
