HYDROSTATIC SCREENS

DOWNLOAD TECHNICAL SHEET

PROUDLY MADE BY

Best in class for

WOOD BASED PANELS

PB/SPB, MDF/HDF, OSB/LSB/FOSB
PRESSED WOOD PACKAGING
PALLET BLOCKS
PELLET & ENERGY
WOOD PELLETS AND BLACK PELLETS, THERMAL AND ELECTRIC ENERGY
WOOD RECYCLING AND WASTE TREATMENT
CUSTOMIZED SOLUTIONS FOR RECYCLING

Technical features

  • Completely innovative, light and modular construction
  • System of hydraulic suspension and low friction coefficient for the screen housing support
  • Upper and lower balancers with rotating counterweight that provides the structure only with a rotating motion and eliminates any “pitching” problems
  • Controlled and adjustable rotary movement of the screen housing
  • The machine can have one or two screening stages, each containing up to 4 sieve lines
  • From 2 to 5 fractions of sieved material are obtainable
  • The sieves are made from stainless steel
  • Flexible charging and discharging hoses on the storage hoppers for connection to the related conveyors outside the sieve
  • In the sieve holder there are no fire and explosion ignition sources.

Vantaggi

  • Unusual or special conveyors are not required
  • The hydrostatic suspensions are more durable, efficient and cheaper than traditional systems with elastic parts
  • Very low maintenance cost
  • Minimum installed power loading
  • Light foundations required
  • Very high screening performance thanks to the high rotation speed
  • Simple and rapid replacement of sieves

Gallery

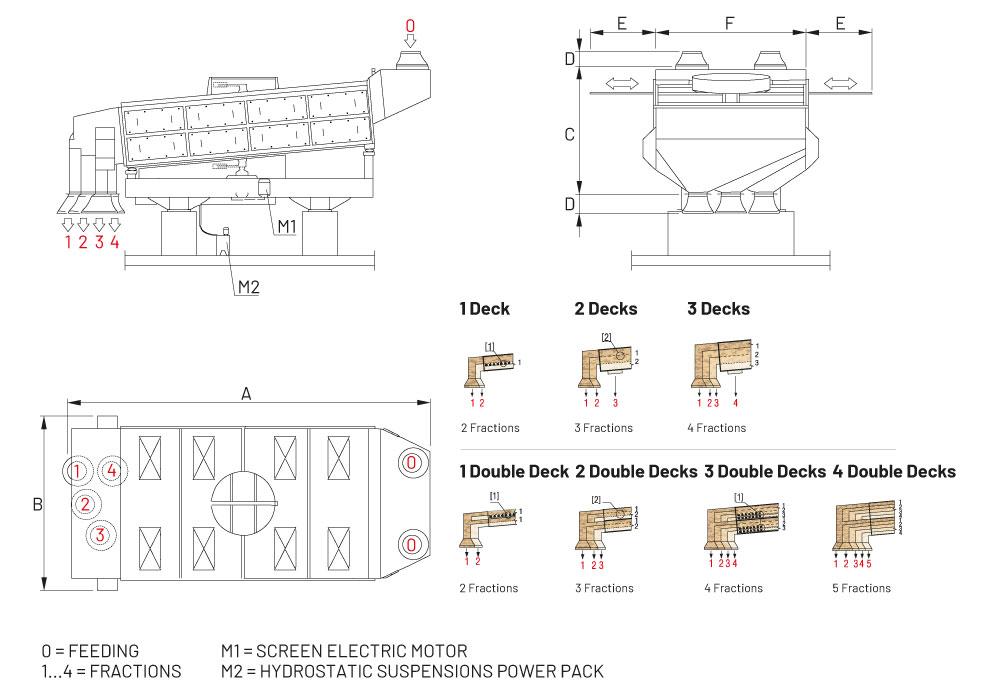

Disegno_HYDROSTATIC-SCREENS

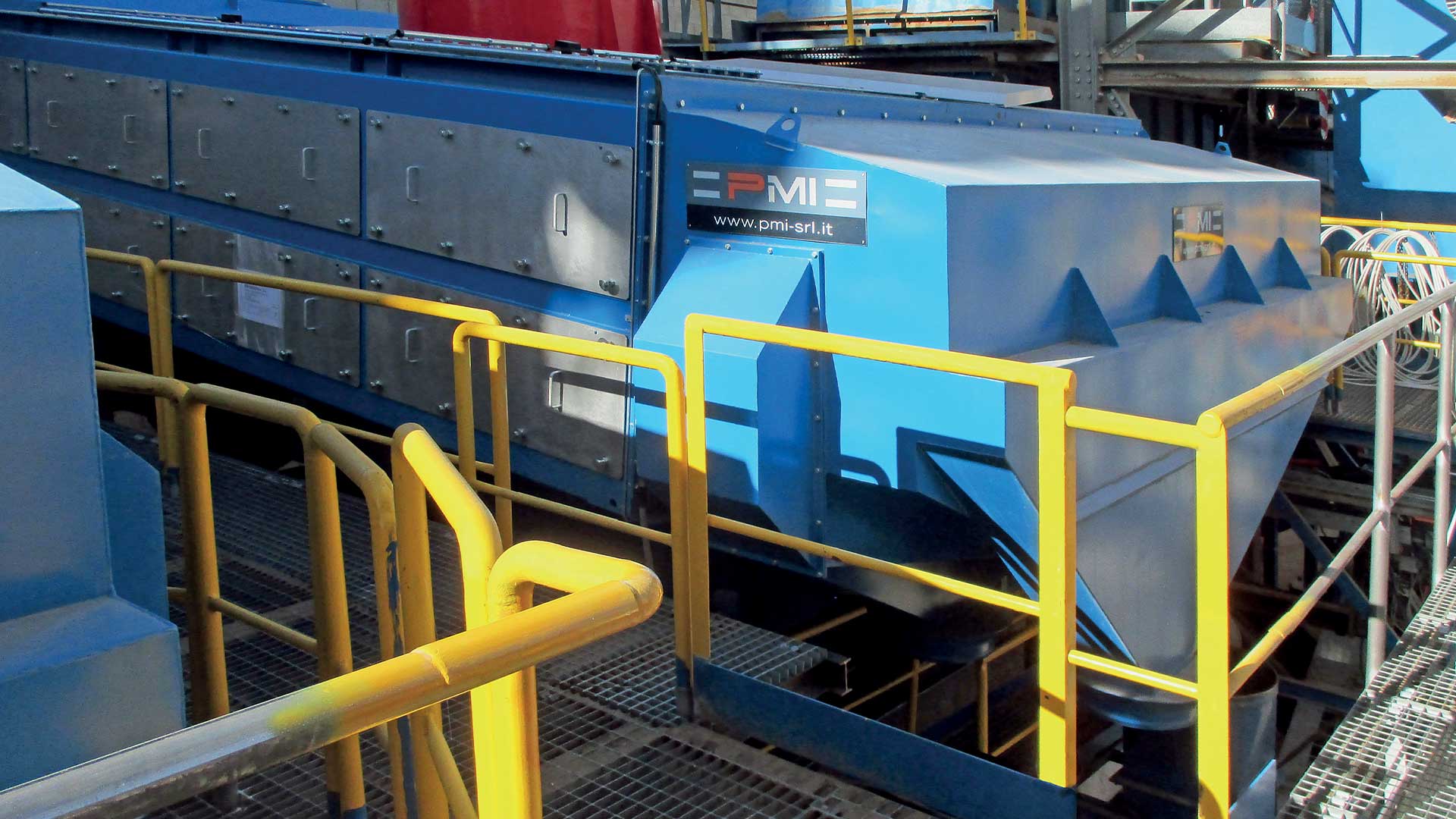

Hero

Technical features

MODEL
standard types
NET SCREENING SURFACE
FOR EACH FRACTION m2
CAPACITY for screens mesh size
1,2x1,2 mm (m3/h)
1,4x1,4 mm (m3/h)
1,6x1,6 mm (m3/h)
HD 5
5
27,5 - 30
30 - 32,5
32,5 - 35
HD 8
8
44 - 48
48 - 52
52 - 56
HD 16
16
88 - 96
96 - 104
104 - 112
HD 21
21
126 - 136
136 - 150
150 - 165
HD 26
26
160 - 170
170 - 185
185 - 200
HD 32
32
195 - 208
208 - 220
220 - 240

MODEL
STAGE OF SIEVING
Nr.
FRACTIONS AVAILABLE
Nr.
OVERALL DIMENSIONS mm
INSTALLED POWER kW
WEIGHT
APPROX kg
A
B
C
D
E
F
M1
M2
HD 5
1
2 - 3
4800
2100
1480
300
1350
2000
1,5
-
2800
HD 8
2 - 4
6000
2800
2060
300
1300
2700
2,2
0,18
4000
HD 13
2 - 4
7770
3700
2100
300
1550
3165
4
0,18
5500
HD 16
2 - 3
7770
4450
2100
300
1900
3915
4
0,18
8500
HD 16
2
2 - 4
6550
3260
2550
300
1300
2725
4
0,18
8500
HD 21
2 - 4 5=SPECIAL
7770
3260
2700
300
1300
2725
5,5
0,18
9500
HD 26
2 - 4 5=SPECIAL
7770
3700
2700
300
1550
3165
7,5
0,18
10900
HD 32
3 - 4
7770
4450
2700
300
1900
3915
7,5
0,18
12000
