GEL TIMER

PROUDLY MADE BY

Best in class for

WOOD BASED PANELS

PB/SPB, MDF/HDF, OSB/LSB/FOSB

Technical features

The Geltimer has been designed to measure the gel time of the resin delivered by the supplier and the gel time of the glue mix applied in the blender and the blow line. It permits the glue comparison between several different production plants to assess quality repeatability of the various resins supplied. The device produces highly accurate measurements: the electronic system measures mixer motor torque and hence the absorption power. The initial torque value when the mixer is immersed in the resin and started, is zero (offset). A difference is set, beyond which the resin is considered to have hardened.

Vantaggi

  • Accurate measurements
  • Elevated repeatability
  • Test conducted rapidly
  • Easy to use
  • Test results may be saved (up to 200)
  • Up to 200 sensitivity settings possible

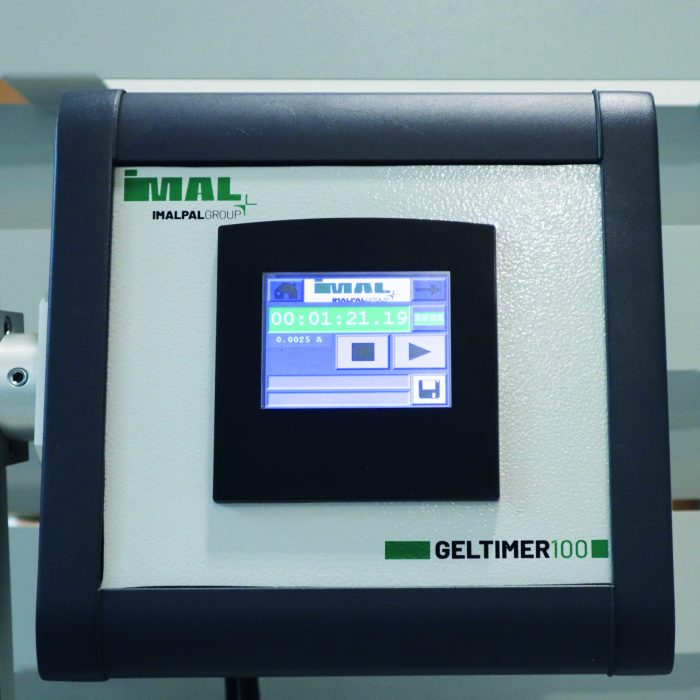

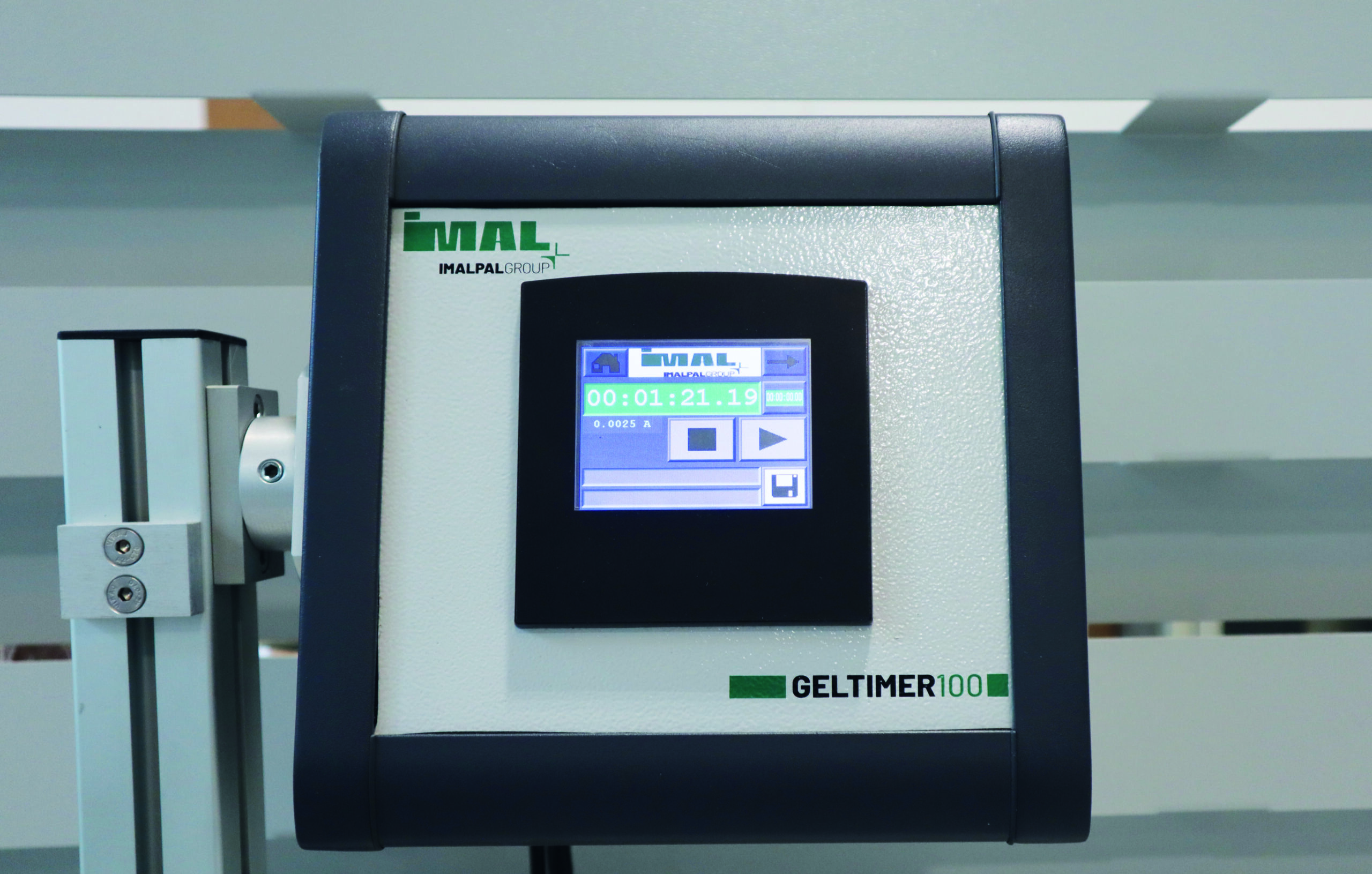

Gallery

Watch the video

Technical features

TECHNICAL DATA
Motor power
6 W
Power supply
230 V 50/60 Hz
Environmental operating temperature
+10 ÷ 40 °C
Degree of humidity
< 85% without condensation
Other environmental conditions
Enclosed environment/room, non explosive atmosphere
