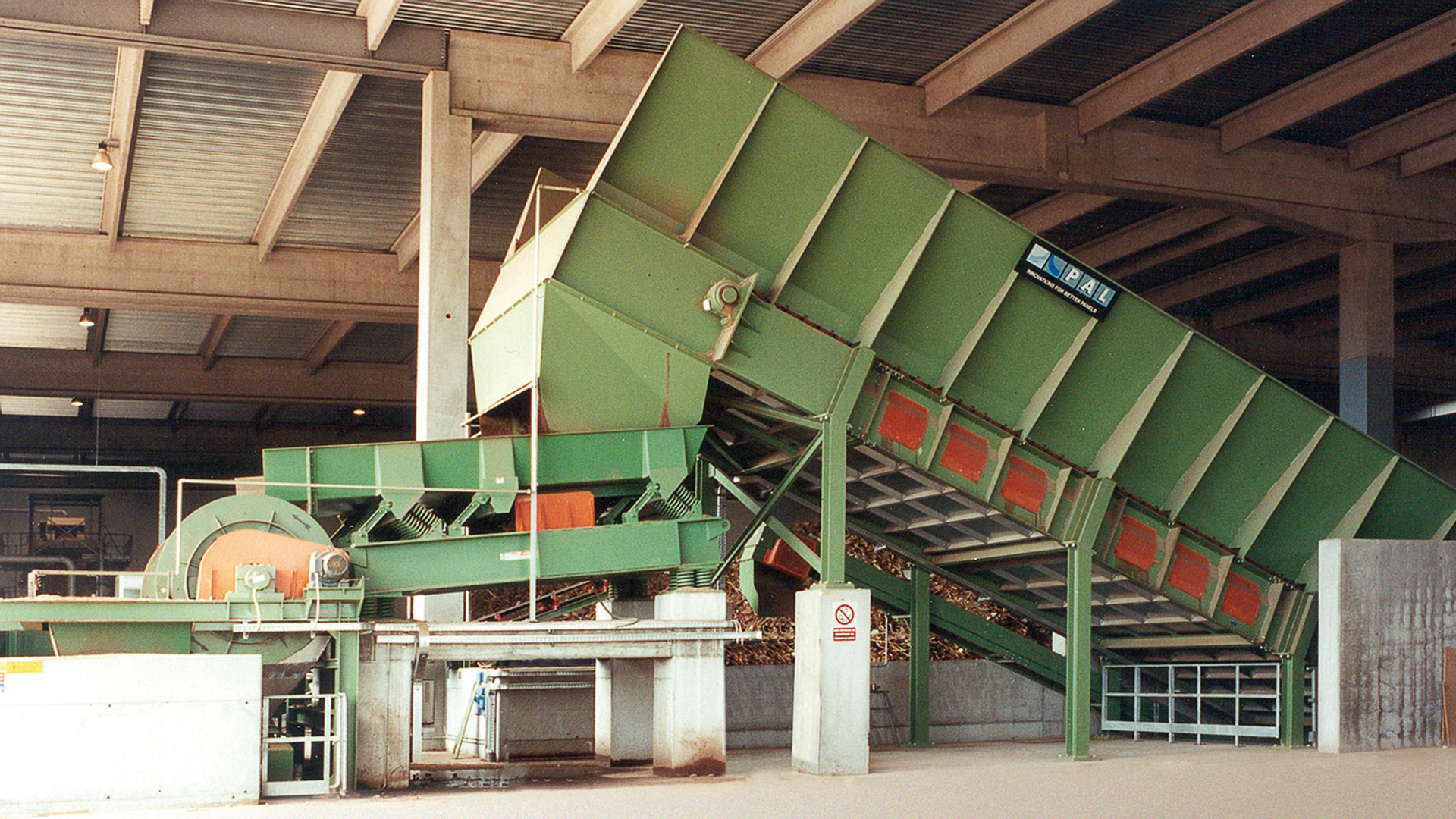

ELECTROMAGNETIC DRUMS – MD.EL

The machine is designed for continuous and automatic separation of ferromagnetic material from inert materials such as sand, grains, chips, shavings, etc trough a electro-magnetic drum. Normally this type of machine is installed on the outside of conveyors, whether made up of belts, slides, vibrating planes, ducts, etc.

PROUDLY MADE BY

Best in class for

WOOD BASED PANELS

PB/SPB, MDF/HDF, INSULATION BOARDS

PRESSED WOOD PACKAGING

PALLET BLOCKS

PELLET & ENERGY

WOOD PELLETS AND BLACK PELLETS, THERMAL AND ELECTRIC ENERGY

WOOD RECYCLING AND WASTE TREATMENT

CUSTOMIZED SOLUTIONS FOR RECYCLING

Technical features

Front shaft fitted with direct transmission
System for special applications
Big and extra-strong electromagnetic drum fitted with bearings and supports
Drive system

Vantaggi

Very high efficiency and reliability
Strong removal of ferrous pollutants (also huge pcs) from bulky or pre-crushed recycling wood, e.g. before pre-crusher, crusher or drum chipper
Simple installation
Low maintenance

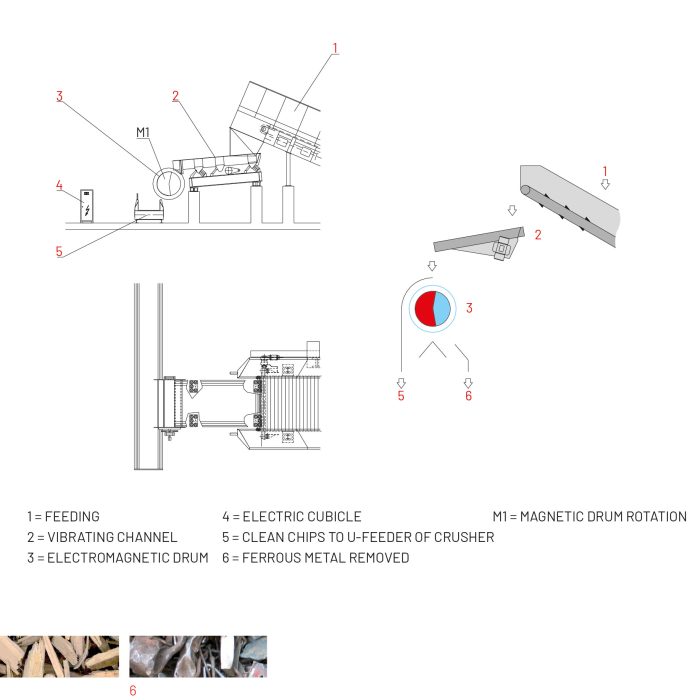

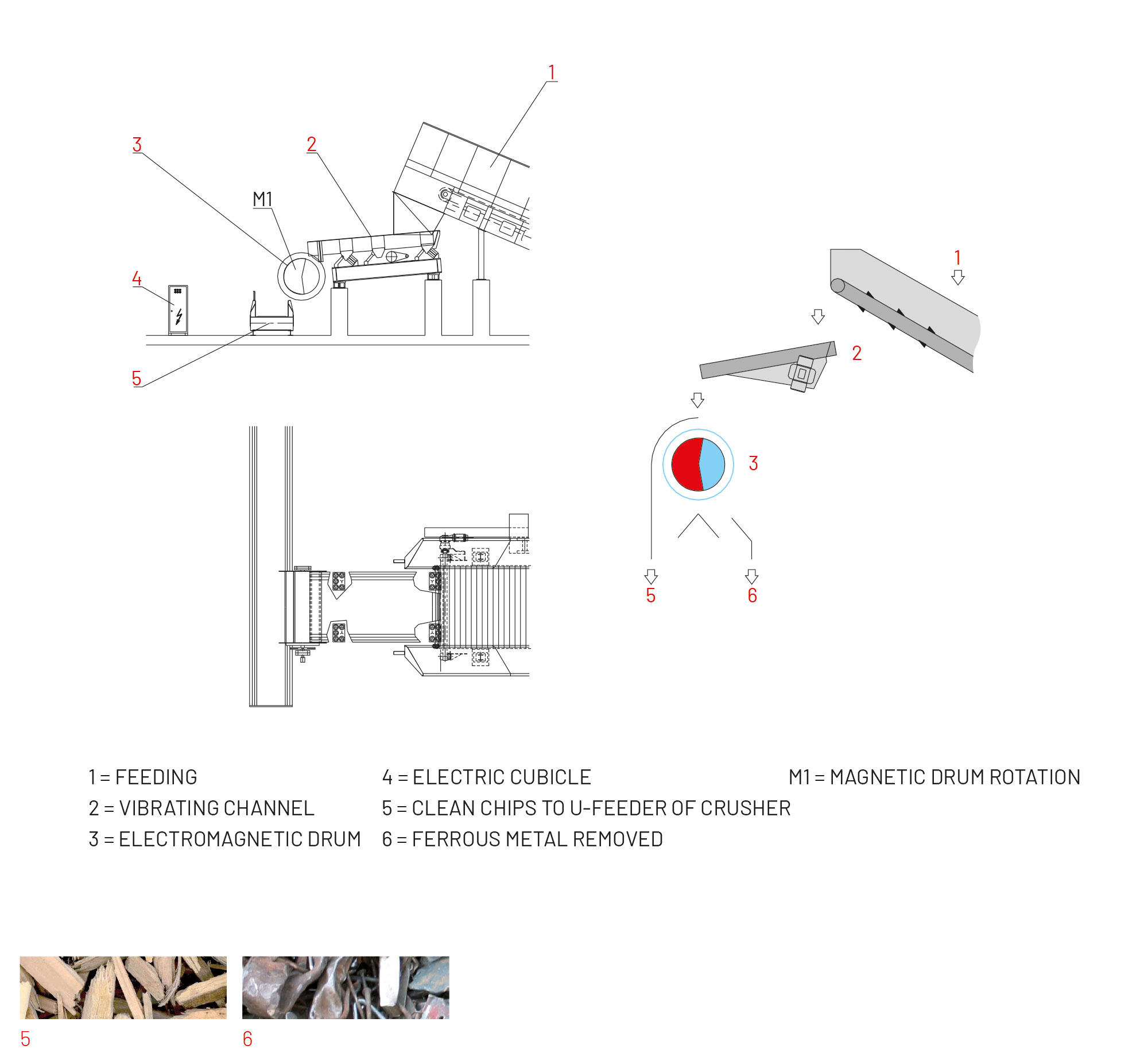

Gallery

Technical features

MODEL	CAPACITY BULKY STUFF m3/h	ELECTROMAGNETIC DRUM mm		INSTALLED POWER kW	WEIGHT APPROX. kg	WEIGHT APPROX. kg
MODEL	CAPACITY BULKY STUFF m3/h	DIAM.	WIDTH	M1	WEIGHT APPROX. kg	WEIGHT APPROX. kg
MD.1500x2500.MRD-EL	440	1500	2500	9,2	20	17000
MD.1500x3000.MRD-EL	530	1500	3000	9,2	20	19800
