DYN-AIR

The machine has been designed for the grading of wood fragments which may contain impurities of various kinds, for example heavy pollutants. The end result is the selection (grading) of the material and its division according to the various grades (dimensions).

PROUDLY MADE BY

Best in class for

WOOD BASED PANELS

PB/SPB

PRESSED WOOD PACKAGING

PALLET BLOCKS, PRESSED PALLETS

PELLET & ENERGY

WOOD PELLETS AND BLACK PELLETS, THERMAL AND ELECTRIC ENERGY

Technical features

Compact design
V-Rolls to remove heavy fines
Chrome plating or nitriding of V profiles
Blower to remove heavy material from accepted wood
Two side bearings and transmissions
Devices for setting gaps easily and freely
Specialized shape of roll profile
Fan and belt motor regulated by frequency converter
Patented

Vantaggi

Heavy material removal (stones, glass, heavy plastic, etc…) from chips flow by rolls and air blowing
Zigzag channeling effect from interlocking W & V rolls: aligns the flow along the W & V gaps
All gaps and discharge flaps freely adjustable: enables easy changing of fraction size
Absolutely free from plugging and/or blockages

Gallery

Technical features

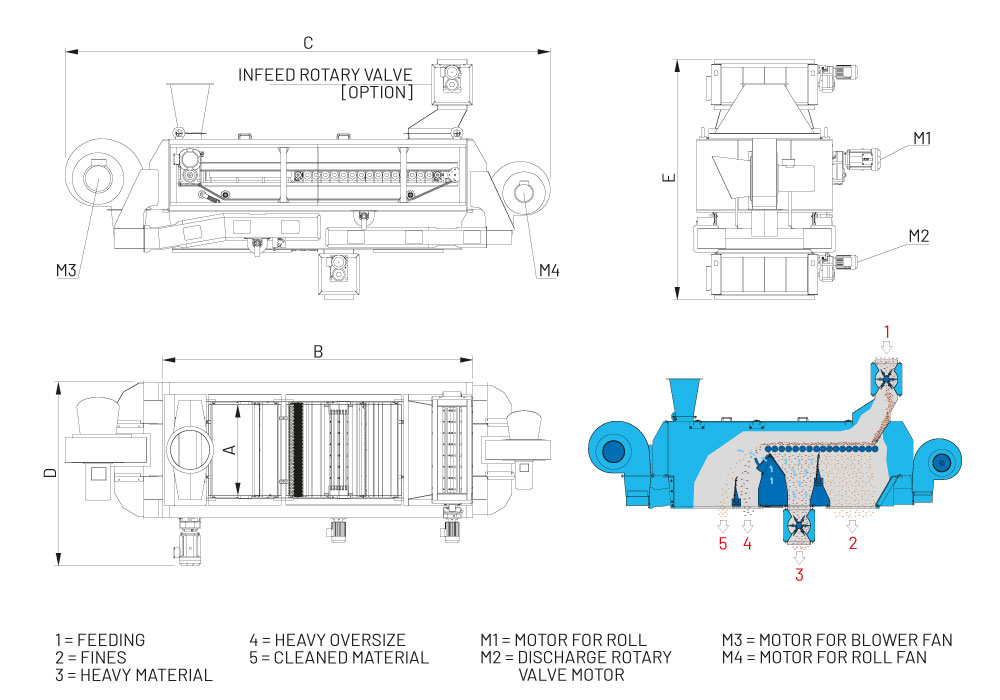

MODEL	OVERALL DIMENSIONS APPROX. mm
MODEL	A	B	C	D	E
DYN.AIR-3200/5000-1000	1000	3200-5000	5000-6800	1930	2500
DYN. AIR-3200/7000-1500	1500	3200-7000	5000-8800	2430	2500
DYN. AIR-3200/7000-2200	2200	3200-7000	5000-8800	3130	2500

MODEL	INSTALLED POWER kW				CAPACITY BULK CHIPS m3/h	NET WEIGHT APPROX. kg	EXHAUST AIR m3/h
MODEL	M1	M2	M3	M4	CAPACITY BULK CHIPS m3/h	NET WEIGHT APPROX. kg	EXHAUST AIR m3/h
DYN.AIR-3200/5000-1000	4-7,5	1,5	2,2	5,5	According to type of material and number of rolls	According to numbers of rolls	6000-8000
DYN. AIR-4000/7000-1500	5,5-7,5	2,2	2,2	5,5			9000-12000
DYN. AIR-4000/7000-2200	5,5-7,5	3	2,2x2	11			13000-18000
