MTG - MACINATORE A TAMBURO

DRUM CHIPPERS – MTG

The machine is designed to reduce the chips of clean wood of various dimensions to uniform dimension chips.

PROUDLY MADE BY

Best in class for

WOOD BASED PANELS

PB/SPB, MDF/HDF

PRESSED WOOD PACKAGING

PALLET BLOCKS, PRESSED PALLETS

PELLET & ENERGY

WOOD PELLETS AND BLACK PELLETS, GREEN FUELS AND BIOMASS

Technical features

Two different clamping system of the knives according to the various applications: mechanical system with bolts or centrifugal wedge-shaped system
Different rotor diameter from 600 to 2400 mm and knives number from 3 to 6
Interchangeable screens
Screen manufactured in two halves for a quick and easy replacement (only for big machines)
Feeding roller made hardened steel with cutting edge obtained through tooling machine
Feeding rollers drive group equipped with double pinion/key block system plus ring feeder for powerful drive transmission and easy replacement
Automatic rotor positioning for a safer knives changing (only for big machines)
Driving group with hydraulic or soft-start acceleration unit
Hydraulic ejection system of the counter-knives
Special side door for easy screen inspection

Vantaggi

Easy digestion of all types and sizes of wood logs and materials
Perfect perpendicular introduction of logs grants high quality cutting and low over-size quantity
Easy change of knives and counter-knife in order to minimize idle time
Minimized energy consumption
Low maintenance timing
Minimized energy consumption
Low maintenance timing

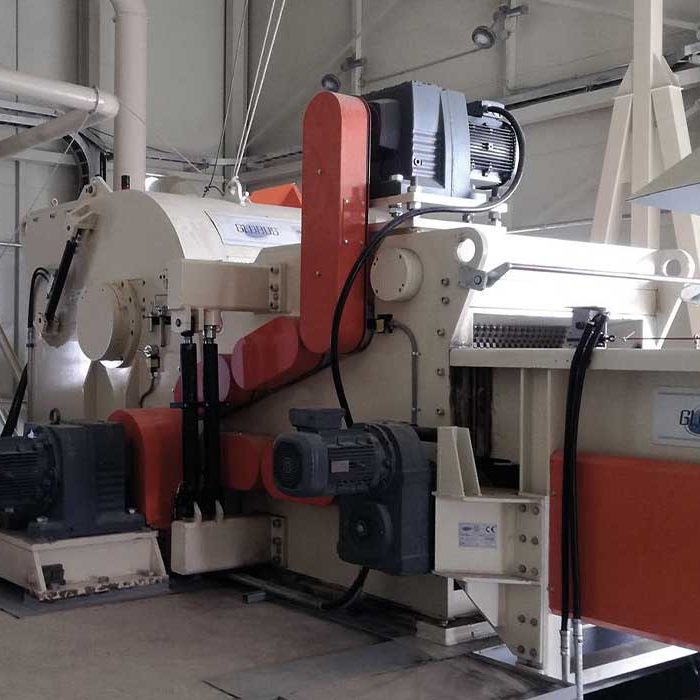

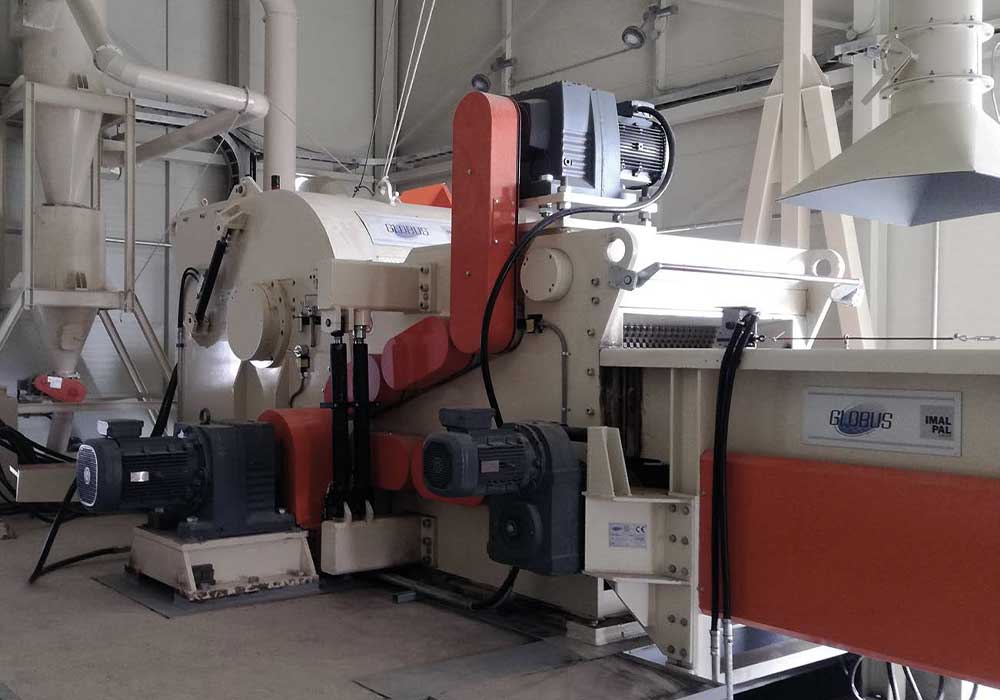

Gallery

Technical features

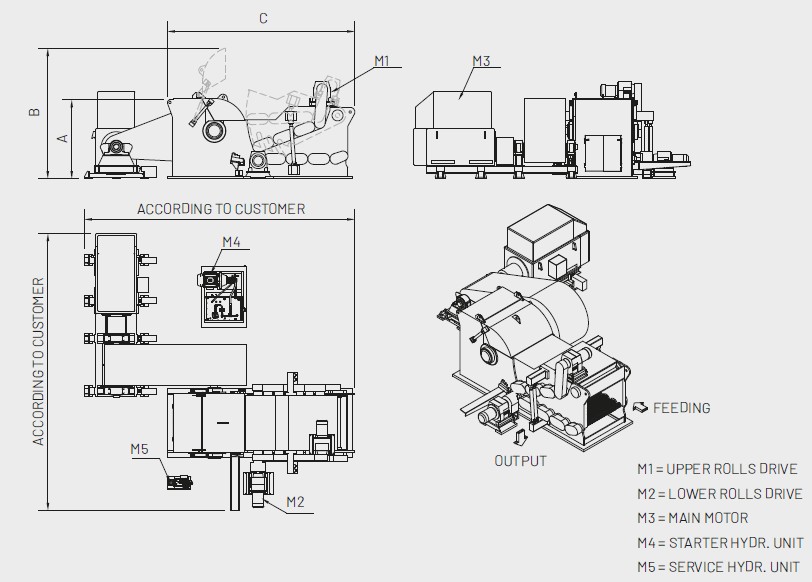

MODEL	OVERALL DIMENSIONS mm			MATERIAL INFEED SECTION mm	ROTOR mm	KNIVES No.	MAIN MOTOR POWER kW	WEIGHT WITHOUT MOTOR kg	CAPACITY
H and L SERIE	A	B	C	MATERIAL INFEED SECTION mm	ROTOR mm	KNIVES No.	MAIN MOTOR POWER kW	WEIGHT WITHOUT MOTOR kg	t/h bd	m3/h solid	rm chips/h
MTG 35.065H-6R	1550	2050	2650	350x650	1000	2/3	160/200	9000	20	44	116
MTG 35.065L-6R	1350	1750	2150	350x650	800	2/3	160/200	8000	13	30	78
MTG 35.085H-6R	1750	2050	2850	350x850	1000	2/3	200/250	10000	26	58	150
MTG 35.105H-6R	1750	2050	2850	350x1050	1000	2/3	250/315	11000	31	69	179
MTG 40.065H-8R	1800	2700	3900	400x650	1300	3/4	200/250	12000	24	51	138
MTG 40.065L-6R	1800	2700	3250	400x650	1000	2/3	160/200	9000	20	44	116
MTG 40.085H-8R	2050	3300	3900	400x850	1300	3/4	250/315	14000	30	67	173
MTG 40.085L-6R	1800	2700	3250	400x850	1000	2/3	200/250	10000	26	58	150
MTG 40.105H-8R	2050	3300	3900	400x1050	1300	3/4	315/450	18000	37	82	214
MTG 40.105L-6R	1800	2700	3250	400x1050	1000	2/3	250/315	11000	31	69	179
MTG 40.125H-8R	2050	3300	3900	400x1250	1300	3/4	400/500	21000	44	98	254
MTG 50.085H-10R	2500	3800	5000	500x850	1600	3/4/5	315/450	24000	40	89	231
MTG 50.085L-8R	2300	3600	4800	500x850	1300	3/4	250/355	14000	30	67	173
MTG 50.105H-10R	2500	3800	5000	500x1050	1600	3/4/5	400/500	26000	50	111	289
MTG 50.105L-8R	2300	3600	4800	500x1050	1300	3/4	315/450	18000	37	82	214
MTG 50.125H-10R	2500	3800	5000	500x1250	1600	3/4/5	500/630	28000	60	133	347
MTG 50.125L-8R	2300	3600	4800	500x1250	1300	3/4	400/500	21000	44	98	254
MTG 50.145H-10R	2500	3800	5000	500x1450	1600	3/4/5	500/750	34000	65	145	377
MTG 60.105L-10R	2500	3800	5000	600x1050	1600	3/4/5	400/500	26000	50	111	289
MTG 60.125L-10R	2500	3800	5000	600x1250	1600	3/4/5	500/750	32000	60	133	347
MTG 60.145L-10R	2500	3800	5000	600x1450	1600	3/4/5	500/750	37000	65	145	377
MTG 85.105H-13R	3000	4500	6000	850x1050	2000	4/5/6	750/1000	45000	80	178	462
MTG 85.125H-13R	3000	4500	6000	850x1250	2000	4/5/6	1000/1200	50000	95	211	549
MTG 85.145H-13R	3000	4500	6000	850x1450	2000	4/5/6	1000/1200	60000	110	244	636
MTG 105.145L-15R	3400	4900	6500	1050X1450	2200	4/5/6	1000/1400	70000	130	289	751
MTG 105.145H-15R	3400	4900	6500	1050X1450	2400	4/5/6	1200/1400	75000	140	311	809
MTG 105.165L-15R	3400	4900	6500	1050x1650	2200	4/5/6	1200/1600	82000	150	333	867
MTG 105.165H-15R	3400	4900	6500	1050x1650	2400	4/5/6	1200/1600	88000	160	356	924
