DCC – DRYCLEANER FOR CHIPS

This machine is designed to separate heavy bodies, such as stones, glass or metal pieces, from the wood chips flow processed by the machine. This cleaning task is obtained by the combined action of vibration and air blowing.

PROUDLY MADE BY

Best in class for

WOOD BASED PANELS

PB/SPB, MDF/HDF, INSULATION BOARDS

PRESSED WOOD PACKAGING

PALLET BLOCKS

PELLET & ENERGY

WOOD PELLETS AND BLACK PELLETS

Technical features

High-tech chip cleaning system suitable to remove every kind of heavy pollutants from the chips, i.e. sand, stones, minerals, etc.
Special design for recycling-high polluted chips
Cleaning chamber provided of perforated screens and front step to stop heavy pollutants
Very strong oscillators for cleaning chamber
High pressure pneumatic circuit provided of adjustable speed pulsator
Special re-classifiers to separate the heavy pollutants from chip flow
Suction hopper and cyclone in order to prevent pollution

Vantaggi

Removal of any type of heavy pollutants, i.e. sand, stones, minerals, etc.
Unbeatable cleaning efficiency
Dramatic reduction (up to 40-70%) of raw material cost using recycled chips
Cost reduction till 50% for knives and wearing parts of knife ring flakers
High reliability
Very low maintenance cost
Low energy consumption, i.e. 0,5-0,6 kW/m3/h of bulk chips
Installation free from pollution.

Gallery

Technical features

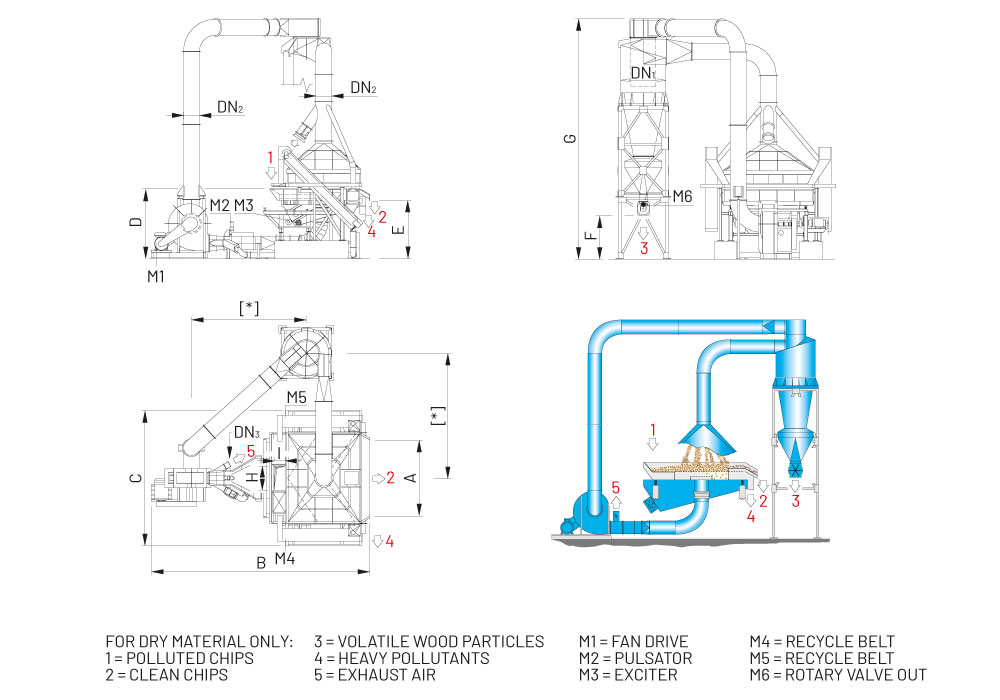

MODEL	OVERALL DIMENSIONS mm
MODEL	A	B	C	D	E	F*	G*	H	I	DN1	DN2	DN3
DCC 50 MC	942	5965	3390	1932	1518	2287	7211	500	500	1120	450	150
DCC 70 MC	1524	7481	3550	2480	1981	1762	7909	700	500	1400	450	150
DCC 100 MC	2304	7590	4550	2697	2230	1750	8748	900	500	1600	500	1150
DCC 150 MC	3038	8725	5400	2800	2361	1750	9605	1000	500	1800	640	200
DCC 250 MC	3738	10588	6140	3300	2887	2186	11680	1200	500	2000	750	200
*Dimensions according to needed layout

MODEL	CAPACITY BULK CHIPS m3/h	INSTALLED POWER kW							EXHAUST AIR m3/h	WEIGHT APPROX. kg
MODEL	CAPACITY BULK CHIPS m3/h	M1	M2	M3	M4	M5	M6	TOTAL	EXHAUST AIR m3/h	WEIGHT APPROX. kg
DCC 50 MC	40	37	0,75	4,0	0,75	-	1,5	44,00	2000	8090
DCC 70 MC	60	45	0,75	7,5	0,75	0,75	1,5	56,25	2200	11500
DCC 100 MC	90	55	0,75	15,0	0,75	0,75	1,5	73,75	2500	13710
DCC 150 MC	130	75	0,75	15,0	0,75	0,75	1,5	93,75	4500	17000
DCC 250 MC	180	132	1,10	22,0	0,75	0,75	1,5	158,10	4500	21000
