CYCLOPS X-RAY

The machine is designed and built to separate the pollutants from the bulk material through the use of X-RAY cameras.
DOWNLOAD TECHNICAL SHEET

PROUDLY MADE BY

Best in class for

WOOD BASED PANELS

PB/SPB, MDF/HDF
PRESSED WOOD PACKAGING
PALLET BLOCKS
WOOD RECYCLING AND WASTE TREATMENT
CUSTOMIZED SOLUTIONS FOR RECYCLING

Technical features

  • High speed belt for monolayer and multilayer particles transfer
  • High efficiency and constant performance of x-ray camera
  • Integrated sw control system
  • Selecting unit with compressed air
  • Discharge hopper with selecting flap
  • Heavy construction for continuous operation

Vantaggi

  • Possibility of feeding any type of raw wood
  • Removal of many kind of pollutants, plastic, metals, inerts and heavy material
  • Very high efficiency
  • Compact layout
  • Low maintenance
  • Easy control and adjustment

Gallery

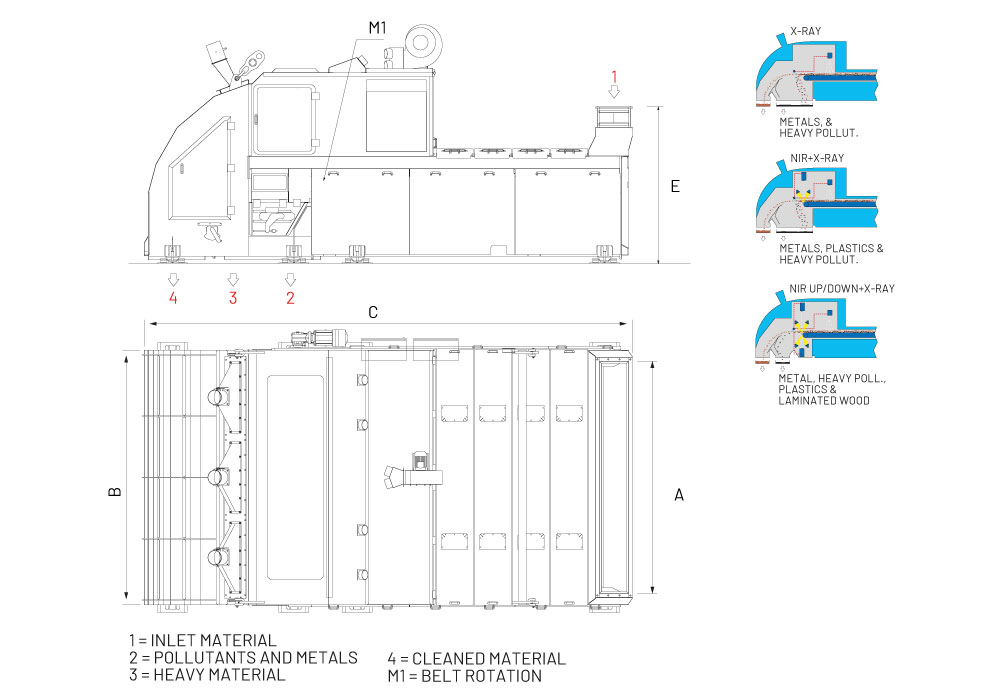

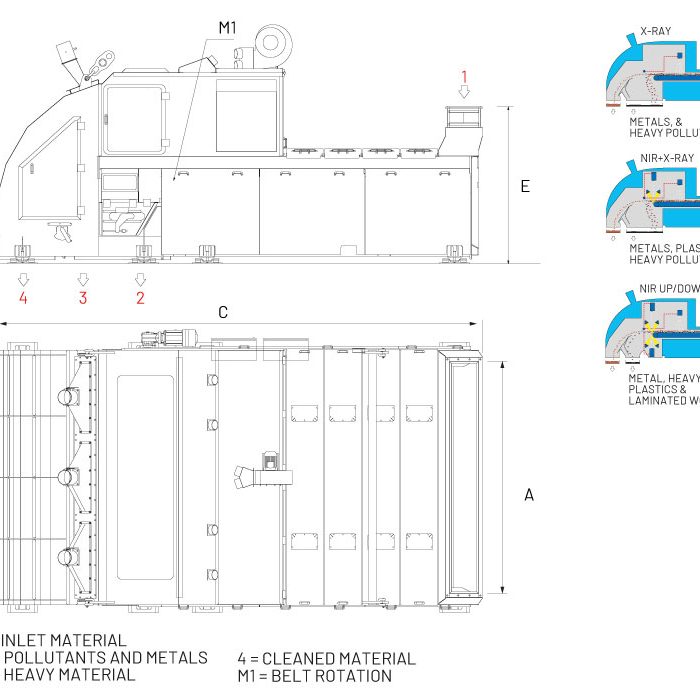

Disegno

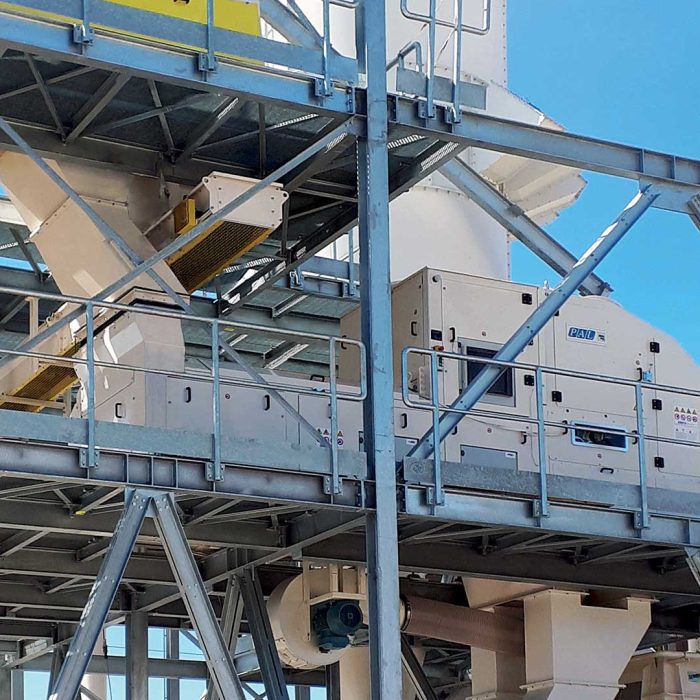

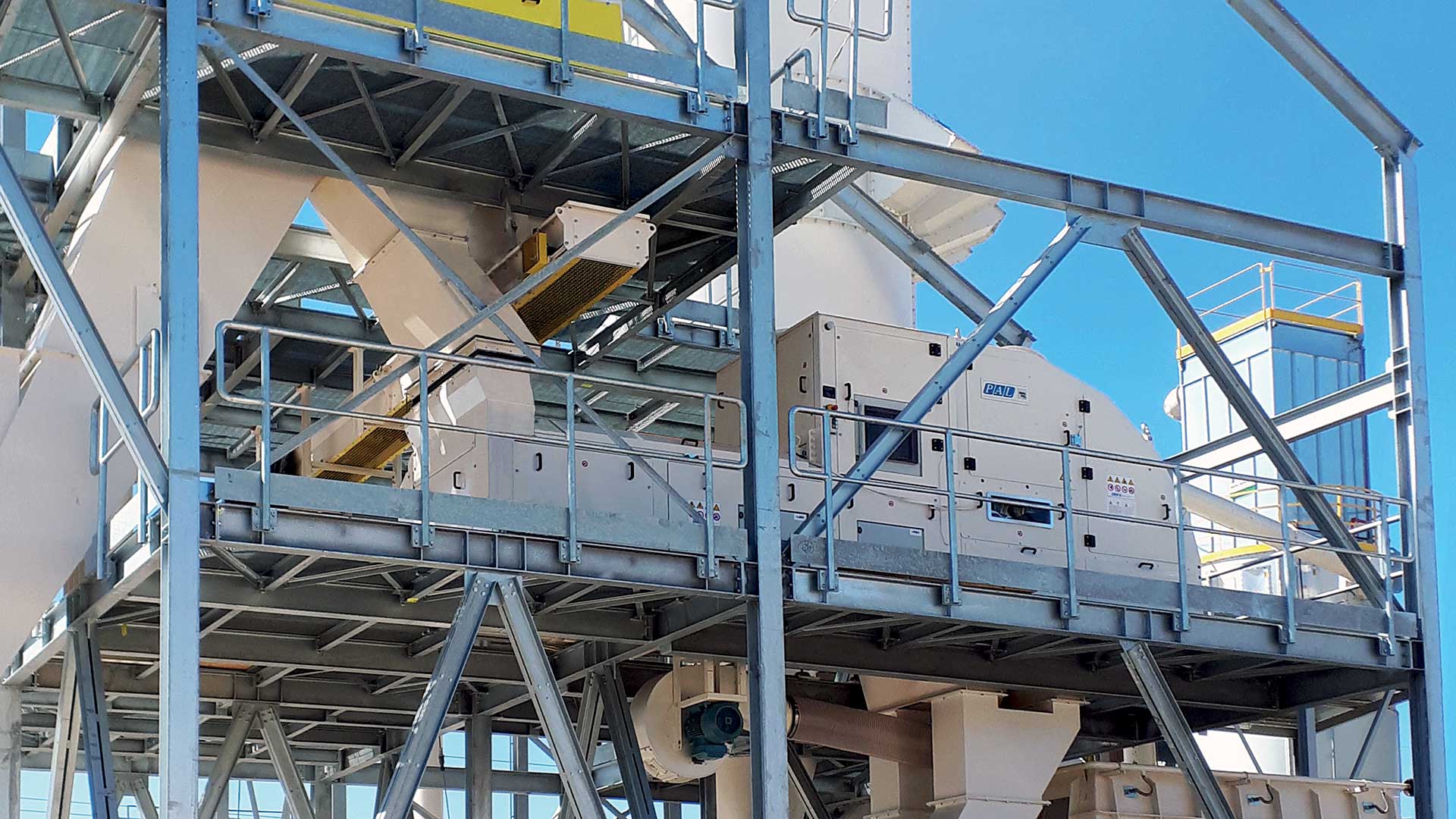

Hero

Technical features

MODEL
OVERALL DIMENSIONS mm
A
B
C
D
E
XCS.1200
1200
1940
6460
3000
1910
XCS.1.1200
1200
1940
6460
3000
1910
XCS.2000
2000
2730
6460
3000
1910
XCS.2.2000
2000
2730
6460
3000
1910

MODEL
CAPACITY
INSTALLED POWER kW
EXHAUST AIR FLOW (m3/h)
MICRO CHIPS 10-30 mm
MACRO CHIPS >30 mm
M1
M2
XCS.1200
130 m3/h
130 m3/h
3
-
3000
XCS.1.1200
35 m3/h
60 m3/h
3
1,10
3000
XCS.2000
200 m3/h
200 m3/h
4
-
4000
XCS.2.2000
70 m3/h
120 m3/h
4
1,50
4000
