CHAIN-PLATE FEEDERS – TKK.180

The machine is designed to convey wood trimmings of various sizes for processing.
DOWNLOAD TECHNICAL SHEET

PROUDLY MADE BY

Best in class for

WOOD BASED PANELS

PB/SPB, MDF/HDF, OSB/LSB/FOSB, INSULATION BOARDS
PRESSED WOOD PACKAGING
PALLET BLOCKS
PELLET & ENERGY
WOOD PELLETS AND BLACK PELLETS

Technical features

  • Very strong double-roller chain feeder
  • Horizontal loading section connected with inclined lifting section
  • Moving bed equipped with transverse metal plates, overlapped and sealed by profiled shape
  • Front shaft fitted with direct transmission
  • Rear shaft fitted with chain tensioning devices
  • Self cleaning system with: closed bottom – rear reclaim screw conveyors – suction system or reclaim vertical screw conveyor
  • Automatic lubrication device for chains
  • Containment walls

Vantaggi

  • Easy loading of fractioned material, wet or dry, such as fresh or recycled chips, sawdust, shavings, etc.
  • Very efficient feeding of screens, cleaners, refiners, etc.
  • Except for front loader, operators are required from time to time only
  • Working speed freely adjustable by using frequency converter
  • Automatic cleaning and lubrication
  • High performance

Gallery

IMALPAL-CHAIN-PLATE-FEEDERS-TKK180-tech

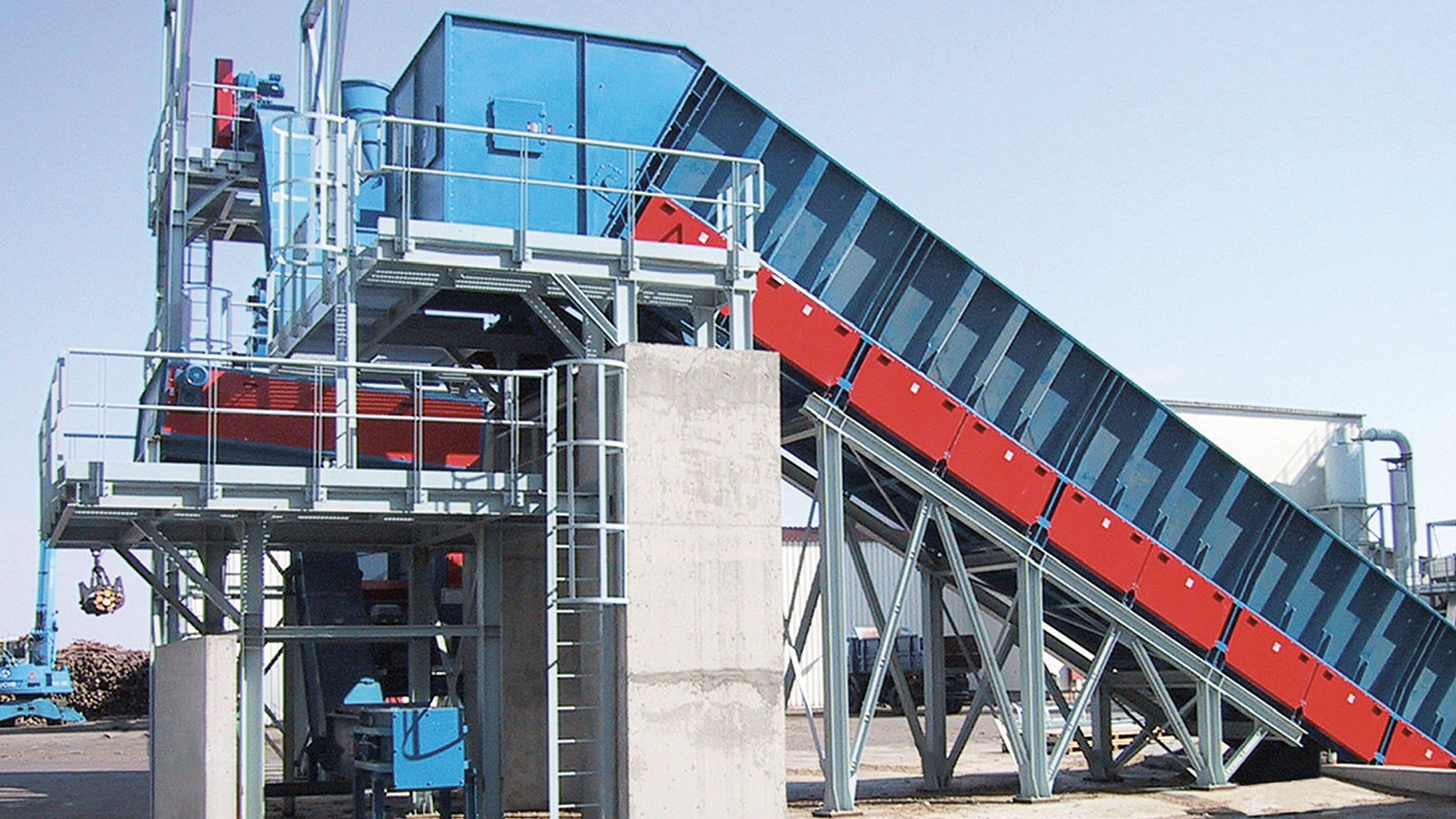

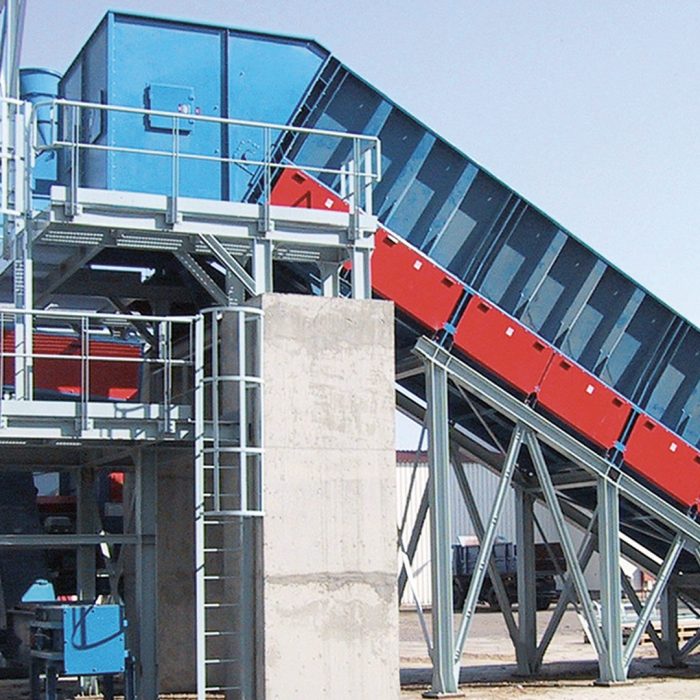

IMALPAL-CHAIN-PLATE-FEEDERS-TKK180-hero

Technical features

MODEL
OVERALL DIMENSIONS mm
A
B
C
D
E
F
G
H
I
L
M
N
TKK.180/3200-LOW
30560
16460
4950
1790
2510
1580
2450
1940
4000
8450
33280
5850
TKK.180/3200-HIGH
30160
13280
6450
1790
2510
1580
2450
1940
4000
9950
32690
5850

MODEL
FEEDING
CAPACITY*
BULK m3/h
STORAGE CAPACITY
BULK m3/h
INSTALLED POWER kW
WEIGHT
APPROX. kg
CHIPS
SAWDUST
M1*
M2
TKK.180/3200-LOW
200
80 -100
80 -100
11-15
2,2
50000
TKK.180/3200-HIGH
200
70 - 80
70 - 80
11-15
2,2
50000
*According to feeding material

MODEL
AUXILIARY SUCTION S1
AIR SUCTION for PNEUMATIC CLEANING S2
SUCTION m3/h
AIR SPEED m/s
SUCTION PRESSURE Pa
SUCTION m3/h
AIR SPEED m/s
SUCTION PRESSURE Pa
TKK.180/3200-LOW
4000
29
200
2000
29
200
TKK.180/3200-HIGH
