BSF

The BSF is an advanced continuous weighing scale system that constantly monitors the amount of material being used and has been designed for accurate flow metering of wood fibre, especially before the glue blender.

PROUDLY MADE BY

Best in class for

WOOD BASED PANELS

MDF/HDF

Technical features

High precision even with variations in pressure inside the measuring system (-1 +0.5 mbar)
Inverter driven belt gear motor used to vary conveyor belt speed to maintain a constant fibre mat height
Automatic belt tracking system
Balanced drive and driven rollers
Balanced doffing rolls to fluidise fibre discharge
Side seals to prevent fibre spillage
Easy calibration

Gallery

Technical features

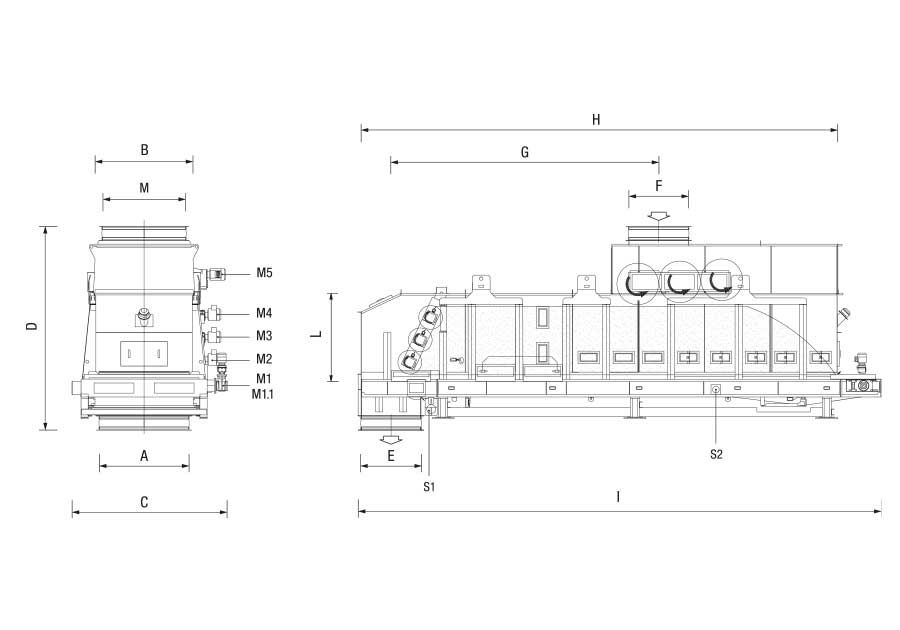

MODEL	OVERALL DIMENSIONS mm
MODEL	A	B	C	D	E	F	G	H	I	L	M
BSF 1050	1050	1100	1900	2550	1000	1000	4500	7800	8800	800	900
BSF 1550	1500	1660	2600	3235	1000	1000	4500	8000	8800	1155	1400
BSF 2000	2000	2662	3170	3235	1000	1000	4500	8000	8800	1560	1900

MODEL	MAX THROUGHPUT kg/h	VOLUME m3	TOTAL SUCTION S1 - S2 m3/h	INSTALLED POWER kW						WEIGHT kg
MODEL	MAX THROUGHPUT kg/h	VOLUME m3	TOTAL SUCTION S1 - S2 m3/h	M1	M1.1	M2	M3	M4	M5	WEIGHT kg
BSF 1050	12000	6	3020	0.25	0.078	1.1	1.1	-	2.2	5620
BSF 1550	20000	14	3020	0.25	0.078	1.1	1.1	1.1	2.2	6780
BSF 2000	40000	18,5	3020	0.25	0.078	1.1	1.1	1.1	2.2	8000
