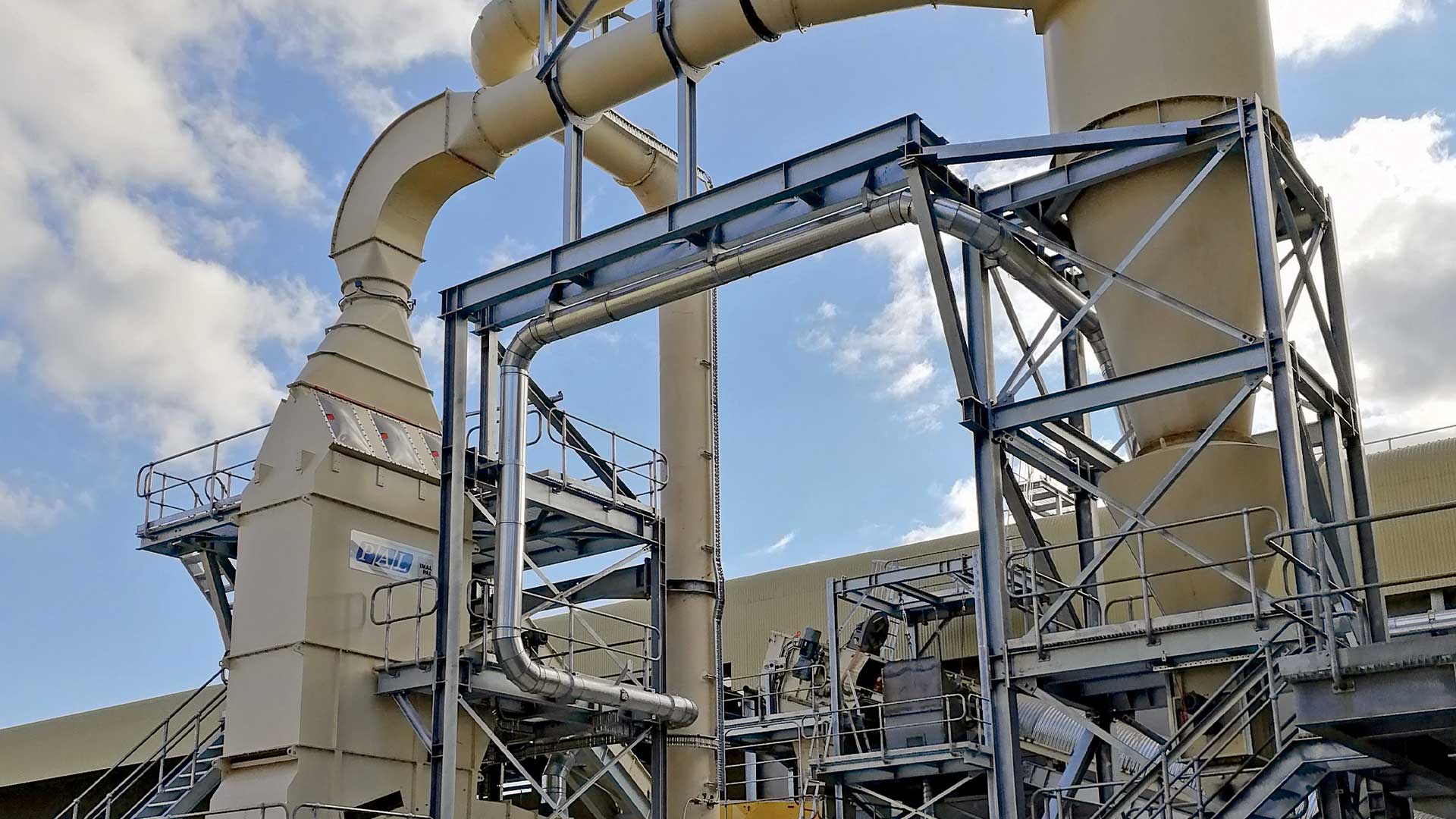

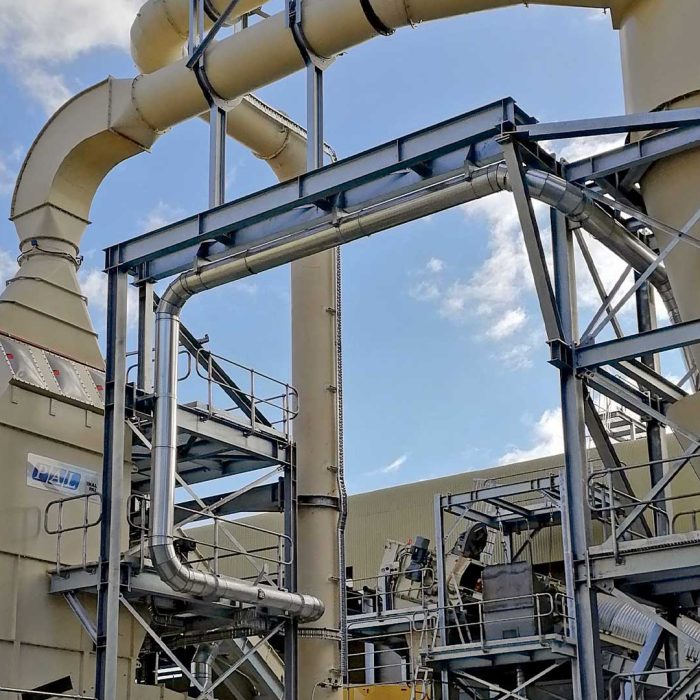

AIRGRADER SINGLE MACHINES

The machine is designed to separate woodchips from sand and heavy bodies by sifting in an air stream.

PROUDLY MADE BY

Best in class for

WOOD BASED PANELS

PB/SPB, MDF/HDF

PRESSED WOOD PACKAGING

PALLET BLOCKS

PELLET & ENERGY

WOOD PELLETS AND BLACK PELLETS, THERMAL AND ELECTRIC ENERGY

WOOD RECYCLING AND WASTE TREATMENT

CUSTOMIZED SOLUTIONS FOR RECYCLING

Classifying chamber complete with: infeed system (from model 3.1M) – inclined fluidizing screen – zigzag channels – suction hopper connected to the cyclone – outfeed device for rejected particles – discharge system for heavy pollutants
Fan
Cyclone for accepted particles
AF – Fire extinguishing system
AE – Explosion protection system

High efficiency in classification
The turbulence generated by the zigzag channels ensures the thick-large (jumbo) particles to drop (that are improperly sucked and classified as accepts by other selectors)
Selection limit freely adjustable
Excellent removal of heavy pollutants
Highly reliable
Low maintenance

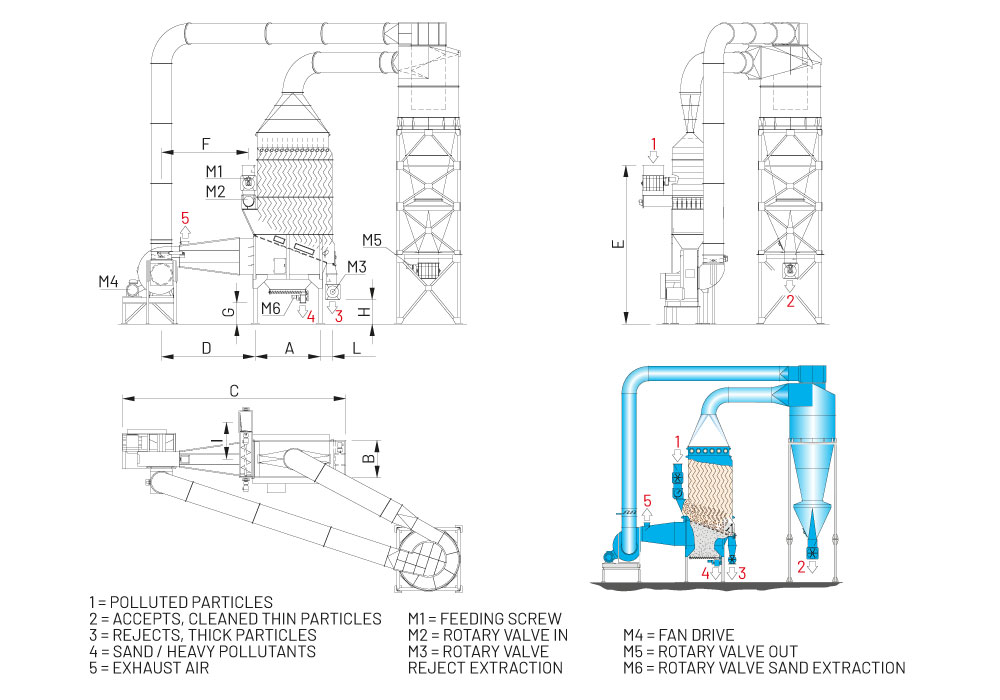

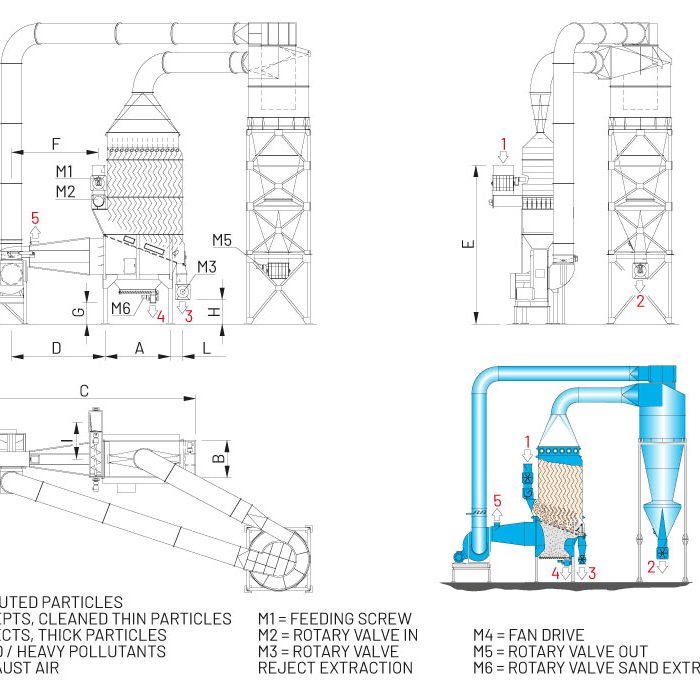

MODEL	OVERALL DIMENSIONS mm
MODEL	A	B	C	D	E	F	G	H	I	L
1,6 M	1730	806	7398	3200	5850	2949	1000	1382	-	550
2,0 M	2260	806	8098	3350	6934	3010	1200	1315	-	570
2,5 M	2290	1006	8046	3351	6934	3011	1200	1220	-	540
3,1 M	2200	1256	8455	3552	7739	3007	1200	1365	1622	600
3,5 M	2200	1406	8785	3650	7714	3180	1200	1380	1368	600
4,0 M	2450	1556	9087	3700	7644	3237	1200	1361	1372	602
4,5 M	2450	1626	9267	3800	7672	3305	1200	1361	1487	602
5,3 M	3258	1506	10043	3743	8217	3258	1200	1426	1457	570
6,2 M	3258	1756	10043	3800	8172	3265	1200	1326	1922	570
7,5 M	3258	2106	10084	3791	8172	3265	1134	1200	1774	575
8,3 M	3717	2166	10548	3889	8507	3304	1200	1643	1775	616
9,0 M	3717	2260	10548	3800	8507	3265	1200	1622	1775	616
10,0 M	3763	2620	12155	4765	8694	4185	1007	1326	2477	570
12,5 M	3763	3220	12155	12155	9453	4190	1020	1330	2777	664
15,0 M	3763	3720	12155	12155	9453	4190	1020	1330	3277	664
Cyclone and pipe have to be sized and located according to the process data for processed material and outfeed position.

MODEL	CAPACITY t/h		EXHAUST AIR m3/h	INSTALLED POWER kW					EXHAUST AIR m3/h	WEIGHT* APPROX. kg
MODEL	SAWDUST/SHAVINGS	OVERSIZE DRY PARTICLES	M1	M2	M3	M4	M5	M6	EXHAUST AIR m3/h	WEIGHT* APPROX. kg
1,6 M	5,8	5,8	-	1,5	1,5	Information available according to processed material and cyclone distance.	1,5	0,75	Information available according to processed material.	7500
2,0 M	7,2	7,2	-	1,5	1,5		1,5	0,75		8000
2,5 M	9,0	9,0	-	3,0	1,5		3,0	0,75		9000
3,1 M	11,2	11,2	3,0	4,0	1,5		4,0	0,75		10000
3,5 M	12,6	12,6	4,0	4,0	1,5		4,0	0,75		10500
4,0 M	14,4	14,4	4,0	4,0	1,5		4,0	0,75		11500
4,5 M	16,2	16,2	4,0	4,0	1,5		4,0	0,75		13000
5,3 M	19,1	19,1	7,5	5,5	1,5		5,5	0,75		14000
6,2 M	22,3	22,3	7,5	5,5	3,0		5,5	0,75		15000
7,5 M	27,0	27,0	7,5	5,5	3,0		5,5	0,75		16000
8,3 M	29,9	29,9	9,2	5,5	3,0		5,5	0,75		16700
9,0 M	32,4	32,4	9,2	5,5	3,0		5,5	0,75		18100
10,0 M	36,0	36,0	9,2	5,5	3,0		5,5	0,75		19200
12,5 M	45	45	9,2	5,5	3,0		5,5	0,75		21700
15,0 M	45	45	9,2	5,5	3,0		5,5	0,75		24700
*Weight without piping and cyclone
