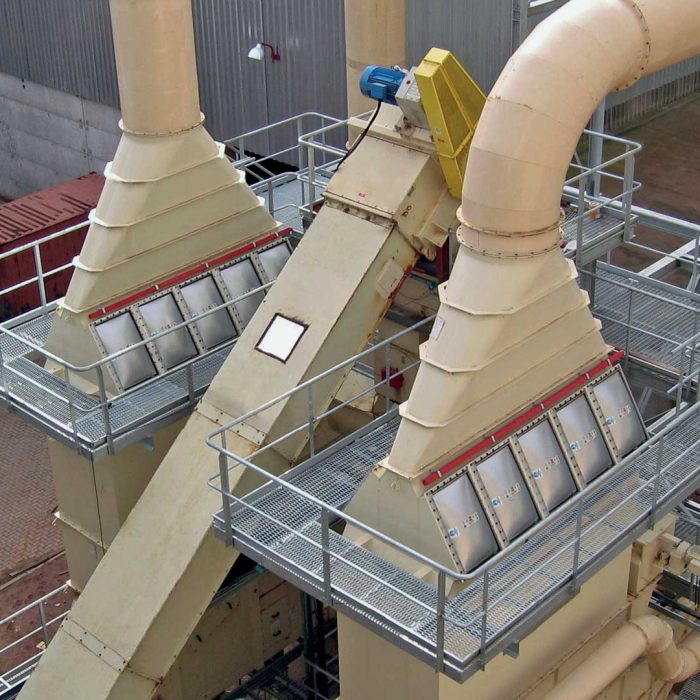

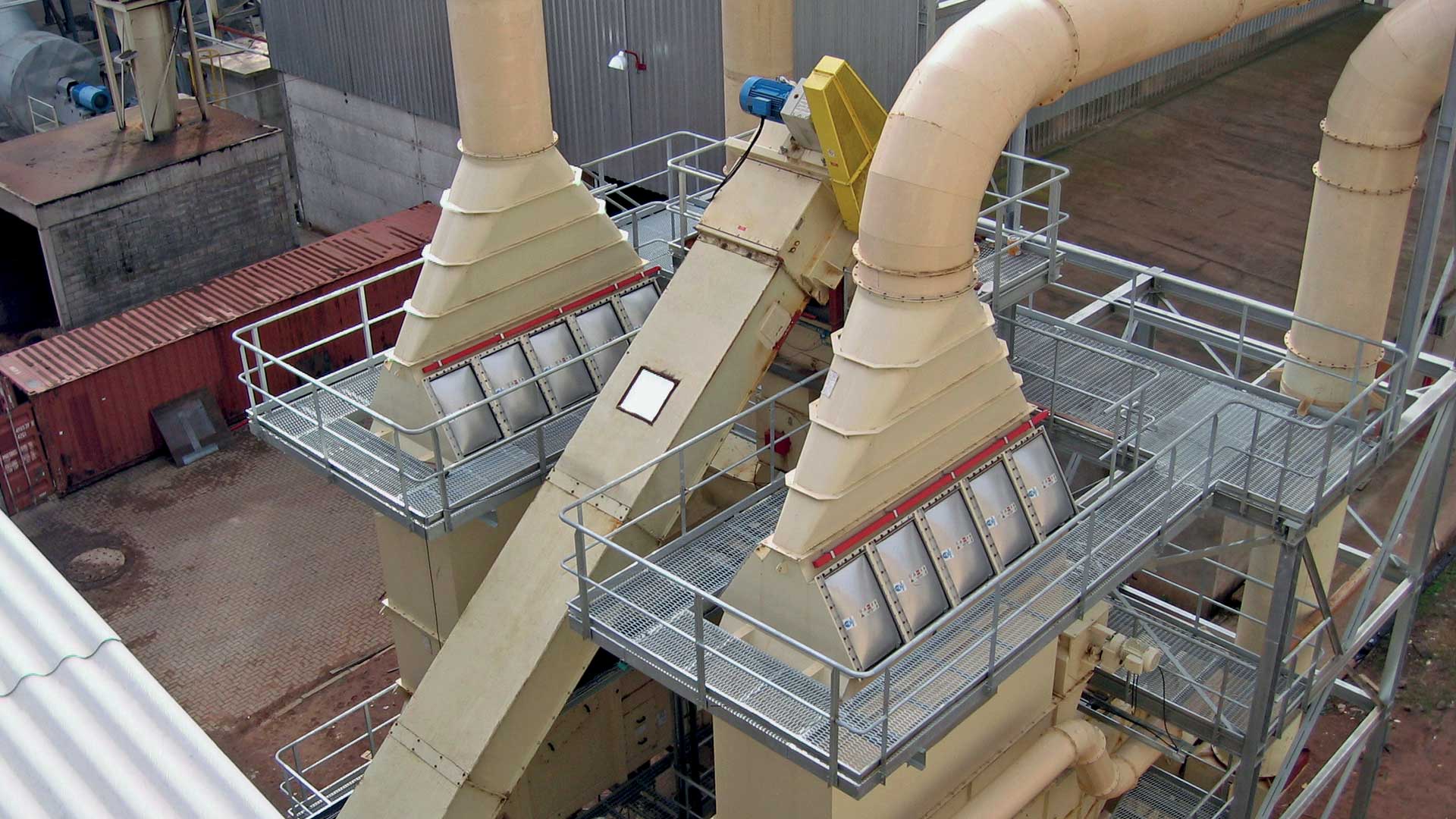

AIRGRADER DOUBLE MACHINES

The machine is designed to separate woodchips from sand and heavy bodies by sifting in an air stream.

PROUDLY MADE BY

Best in class for

WOOD BASED PANELS

PB/SPB, MDF/HDF

PRESSED WOOD PACKAGING

PALLET BLOCKS

PELLET & ENERGY

WOOD PELLETS AND BLACK PELLETS, THERMAL AND ELECTRIC ENERGY

WOOD RECYCLING AND WASTE TREATMENT

CUSTOMIZED SOLUTIONS FOR RECYCLING

Classifying chamber complete with: infeed system – inclined fluidizing screen – zigzag channels – suction hopper connected to the cyclone – outfeed device for rejected particles – discharge system for heavy pollutants
Fan
Cyclone for accepted particles
AF – Fire extinguishing system
AE – Explosion protection system

High efficiency in classification
The turbulence generated by the zigzag channels ensures the thick-large (jumbo) particles to drop (that are improperly sucked and classified as accepts by other selectors)
Selection limit freely adjustable
Excellent removal of heavy pollutants
Highly reliable
Low maintenance

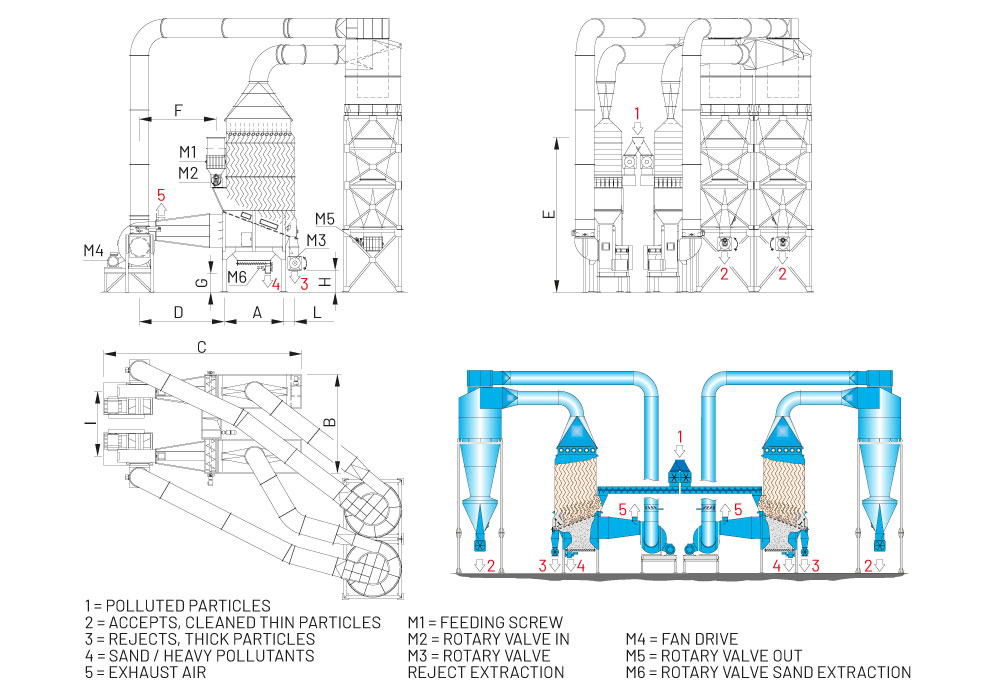

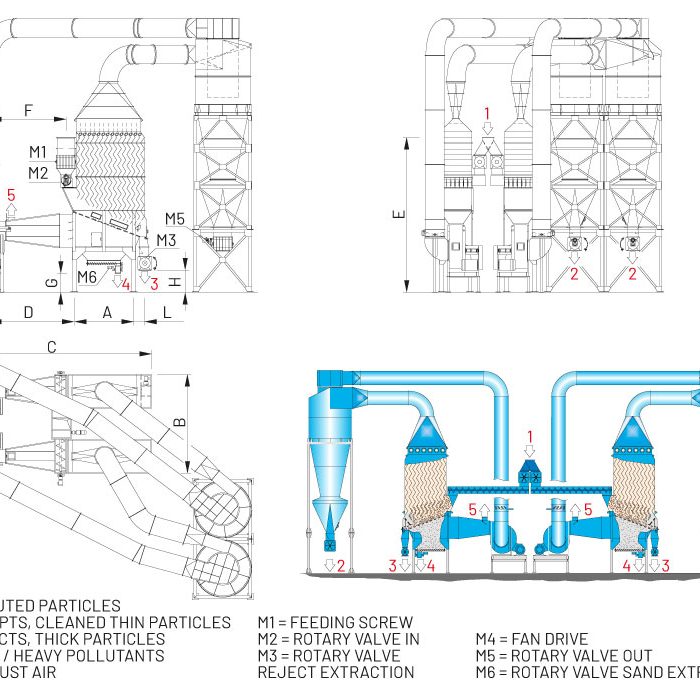

MODEL	OVERALL DIMENSIONS mm
MODEL	A	B	C	D	E	F	G	H	I	L
10,6 M	3258	4900	10043	3800	8697	3315	1200	1426	3394	570
12,4 M	3258	5400	10043	3800	3265	3265	1200	1326	3644	570
15,0 M	3258	6100	9986	3800	8796	3265	1200	1226	3994	570
16,6 M	3763	6210	10455	3847	9032	3304	1200	1643	4104	570
18,0 M	3717	6760	10548	3800	9185	3265	1200	1622	4500	616
20,0 M	3763	8100	12155	4765	8694	4185	1007	1326	5400	570
Cyclone and pipe have to be sized and located according to the process data for processed material and outfeed position.

MODEL	CAPACITY t/h		INSTALLED POWER kW						EXHAUST AIR m3/h	WEIGHT* APPROX. kg
MODEL	SAWDUST/SHAV	OVERSIZE DRY PARTICLES	M1	M2	M3	M4	M5	M6	EXHAUST AIR m3/h	WEIGHT* APPROX. kg
10,6 M	38,2	38,2	2 x 5,5	2 x 7,5	2 x 1,5	Information available according to processed material and cyclone distance.	2 x 5,5	2 x 0,75	Information available according to processed material.	28000
12,4 M	44,6	44,6	2 x 5,5	2 x 7,5	2 x 3,0		2 x 5,5	2 x 0,75		30000
15,0 M	54,0	54,0	2 x 5,5	2 x 7,5	2 x 3,0		2 x 5,5	2 x 0,75		32000
16,6 M	59,8	59,8	2 x 5,5	2 x 9,2	2 x 3,0		2 x 5,5	2 x 0,75		33400
18,0 M	64,8	64,8	2 x 5,5	2 x 9,2	2 x 3,0		2 x 5,5	2 x 0,75		36200
20,0 M	72,0	72,0	2 x 5,5	2 x 9,2	2 x 3,0		2 x 5,5	2 x 0,75		38400
*Weight without piping and cyclone
